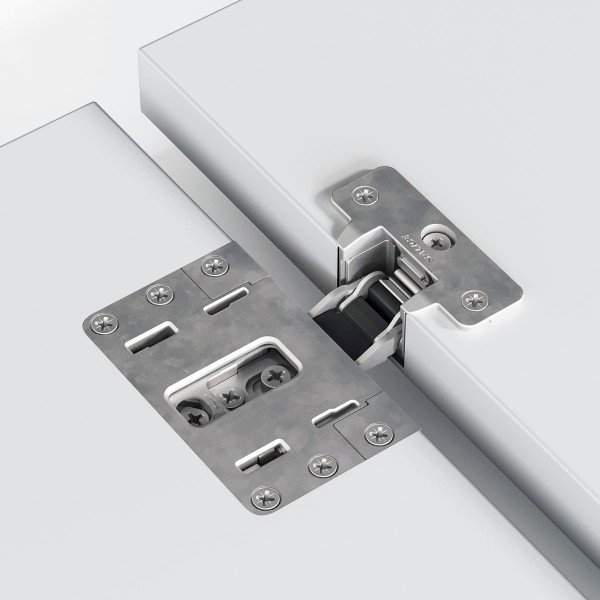

Sleek, fully concealed hinge offers smooth, precise movement for wooden and aluminum doors. Featuring a 22 mm deep, 35 mm diameter metal cup, 10 mm or 14 mm door overlay options, and a 94° opening angle, ensures effortless installation. Adjustable for sideways (-1 to +2 mm), height (-2.5 to +2.5 mm), and depth (0 to +3 mm), this hinge combines functionality with modern design—perfect for elegant, durable wooden door applications.
You might also like
Category: Concealed Hinge for Wooden and Aluminium-Framed Doors
Material: Steel (Zinc Alloy, Nickel-plated)
Finish Options: Nickel-plated, Titanium
Design: Completely hidden inside the door and the side of the cabinet for a concealed, sleek look
Mounting Position: Recessed insertion in both the door and the side panel
Opening Angle: 94°
Integrated Feature: Available with an integrated soft-close mechanism for smooth, decelerated, and silent closing
Adjustments:
• Sideways Adjustment: -1 mm to +2 mm
• Height Adjustment: -2.5 mm to +2.5 mm
• Depth Adjustment: 0 mm to +3 mm
Cup Diameter: Ø 35 mm
Drilling Distance: Fixed at 10 mm from the edge of the door to the centre of the hole
Door Thickness Compatibility:
• 22 mm and 25 mm thick doors, wood or aluminium-framed
Side Panel Thickness Compatibility: From 16 mm
L Dimension: 3.5 mm
Application Areas: Suitable for various rooms including bedrooms, living rooms, kitchens, and bathrooms.
Aesthetic Features:

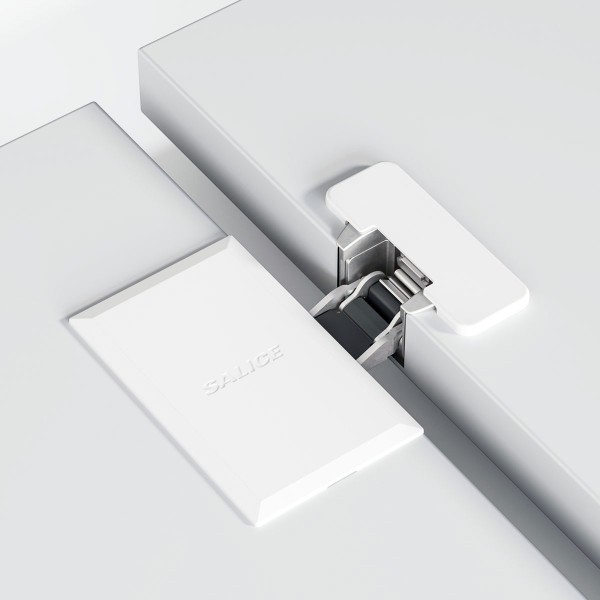

• Customisable cover caps for both the door and side panel
• Elegant design elements for a refined, sophisticated appearance
Usage: Ideal for large and heavy wooden and aluminium-framed doors
Holder Drilling & Installation:
Hinge Drilling & Installation
*The addition of one hinge improves the rigidity of the door and allows higher weights than indicated.
