SALICE Concealed Hinges provide a sleek, hidden design with smooth, silent soft-closing for a clean, modern look. Durable and perfect for cabinets, they ensure long-lasting, reliable performance.
Lapis is a high-performance hinge designed for both wide and standard-opening cabinet doors. It features an integrated soft-close mechanism that ensures smooth and quiet door closure, preventing abrupt slamming.
Modern Cabinetry Meets Style
Experience the ultimate in hinge innovation with the Lapis Series, designed for wide-opening cabinets and elegant interior finishes.
Adjustable soft-close mechanism using twin silicone-oil dampers in the hinge cup.
The decelerating effect is adjusted by using a simple switch.
Hinges for min. 18 mm thick doors.
15.5 mm deep cup | 94° opening
Possible drilling distance on the door (K): from 3 to 9 mm.
Adaptable only with longitudinal Domi snap-on mounting plates (BAP).
Conecta is a fully concealed hinge offering a sleek, seamless look. Its advanced design ensures smooth, precise operation for large wood or aluminum doors, delivering flawless performance for modern furniture.
Compactness and Adaptability
Rapid fixing of the door to the cabinet side
Drilling distance fixed at 10 mm from the edge of the door to the centre of the hole
Diameter 35 mm
94° opening
Sideways adjustment -1 +2 mm
Height adjustment -2,5 +2,5 mm
Depth adjustment 0 +3 mm
AIR
The Air Hinge is a truly concealed solution, offering a sleek and minimalist design that integrates seamlessly into doors and cabinets. Despite its compact size, Air delivers powerful performance with smooth, soft-closing functionality.
Compact design, Integrated soft-close mechanism for smooth closing
It is fitted to the top and bottom panel of the cabinet.
For min. 18 mm thick wooden doors and for aluminium-framed doors.
Max. door weight 25 Kg.

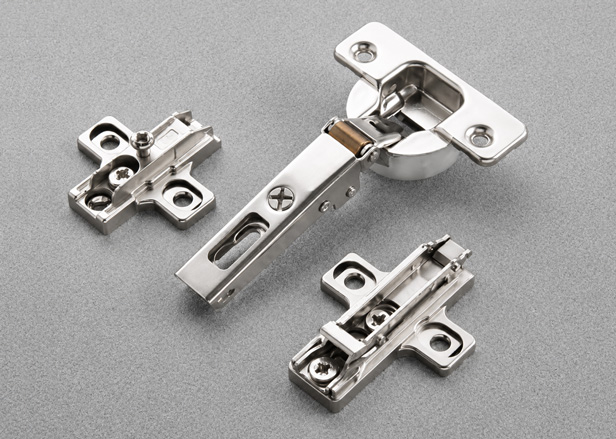

SILENTIA+ Series 700
Embodying a pure and elegant design philosophy, these hinges boast a graceful and refined appearance, ensuring effortless operation presenting a seamless blend of simplicity and sophistication.
Designed with twin silicone-oil dampers and a deceleration switch for soft-close control, this hinge fits 16 mm+ doors. Features a Ø 35 mm cup, 13.5 mm depth, 110° opening angle, and supports inline mounts for flexible installation.
Integrated soft-close with twin silicone-oil dampers ensures smooth, quiet operation. Made from high-quality stainless steel with a nickel-plated finish, it supports half-overlay doors up to 15 kg. Features a 110° opening angle, Ø 35 mm cup, adjustable drilling, and a inline mount for secure installation.
Durable nickel-plated hinge with integrated soft-close dampers for smooth, quiet operation. Supports inset doors up to 15 kg, with a 110° opening angle. Features a Ø 35 mm, 13.5 mm deep cup, adjustable drilling (3-6 mm), and compatibility with 16 mm+ thick doors and 37x32 mm drilling patterns.
This 155° full overlay hinge ensures smooth, silent closing with integrated soft-close dampers. It features a Ø 35 mm cup and 13.5 mm depth, and is compatible with doors 16 mm or thicker and 37x32 mm cabinet drilling patterns.
This 45° arm hinge ensures seamless full overlay compatibility with smooth, silent soft-close functionality. Durable and easy to install, it supports thick doors (min. 16 mm) and offers adjustable drilling for precise fitting—perfect for premium cabinetry.
Featuring a crampon mounting system, this hinge ensures secure installation and smooth, silent operation with its 110° opening angle and soft-close dampers. Perfect for 16 mm full overlay doors.
Soft-Close Technology
Adjustable soft-close mechanism operated by twin silicone-oil dampers
The decelerating effect is adjusted by using a simple switch.
Dimensions of the Ø 35 mm cup.
Max. door weight 25 Kg.
Hinges for min. 16 mm thick doors.
Compatible with all traditional Series 200 mounting plates.
