Salice Silentia+ 700 Series 110° Hinge Full with Inline Mount

Salice Silentia+ 700 Series 110° Hinge Full with Wing Mount

Salice Silentia+ 700 Series 110° Hinge

Name: Salice Silentia+ 700 Series 110° Hinge
Brand: SALICE
SKU: 249
Price: 10.5 AED
Availability: InStock

AED 10.50

Tax included

Soft-close hinge designed for wooden doors, featuring twin silicone oil dampers integrated within the cup for smooth and controlled closing. The deceleration can be easily adjusted via a simple switch.

Supplied as hinge only: flange cover, screw cover, and mounting plate are not included and must be purchased separately.

Overlay

Finish

Nickel
Titanium

Description
Product Details

Silentia+ Series 700 - 110° Opening

Possible drilling distance on the door (K): from 3 to 6 mm.

Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

Cup Dimension: Ø 35mm * 13.5mm cup

Door Thickness: 16 - 26mm

Drilling Distance: 45mm

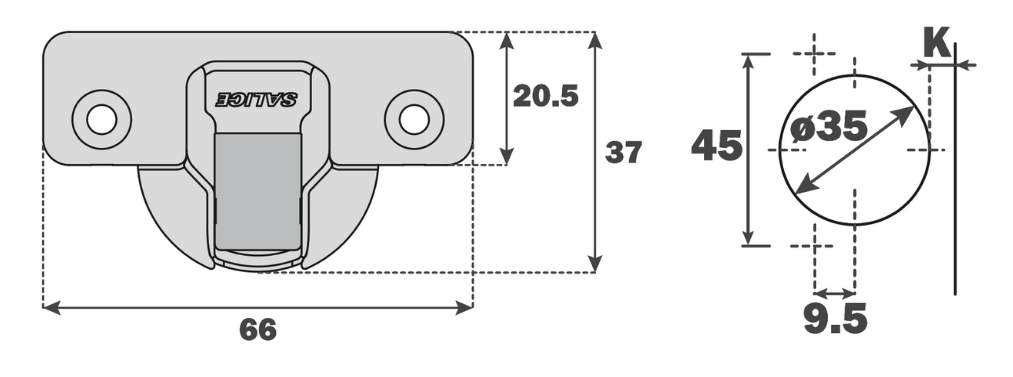

Hinge Cup Details

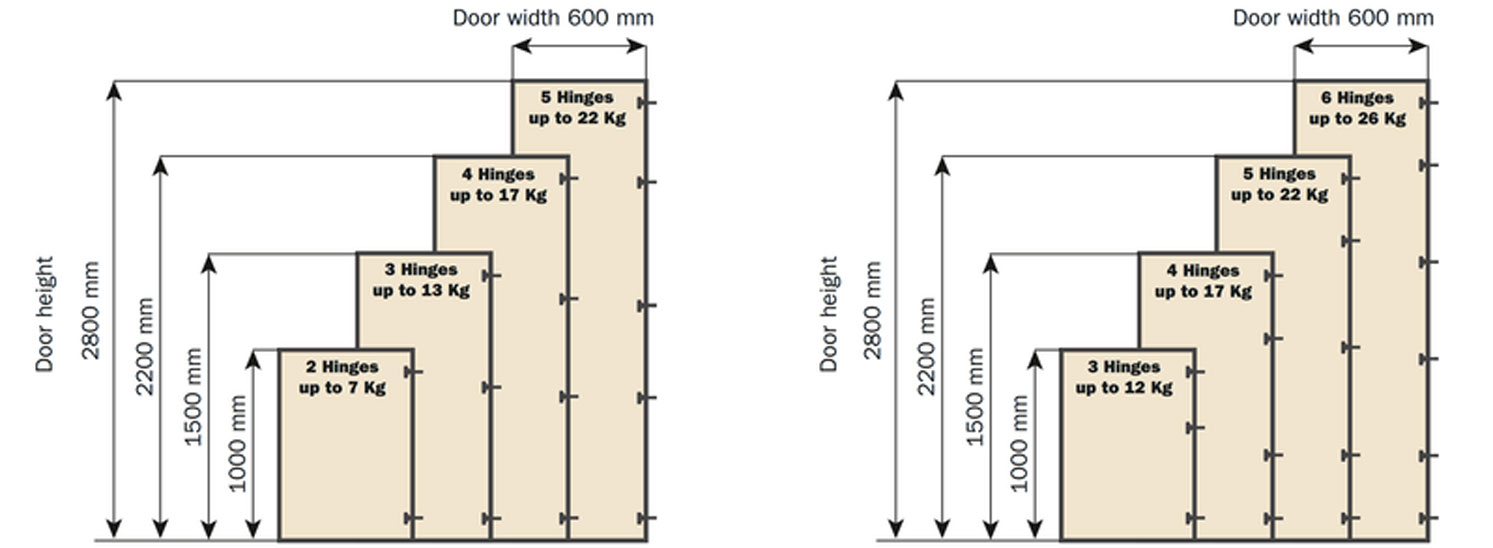

Number of hinges required to door dimension and weight

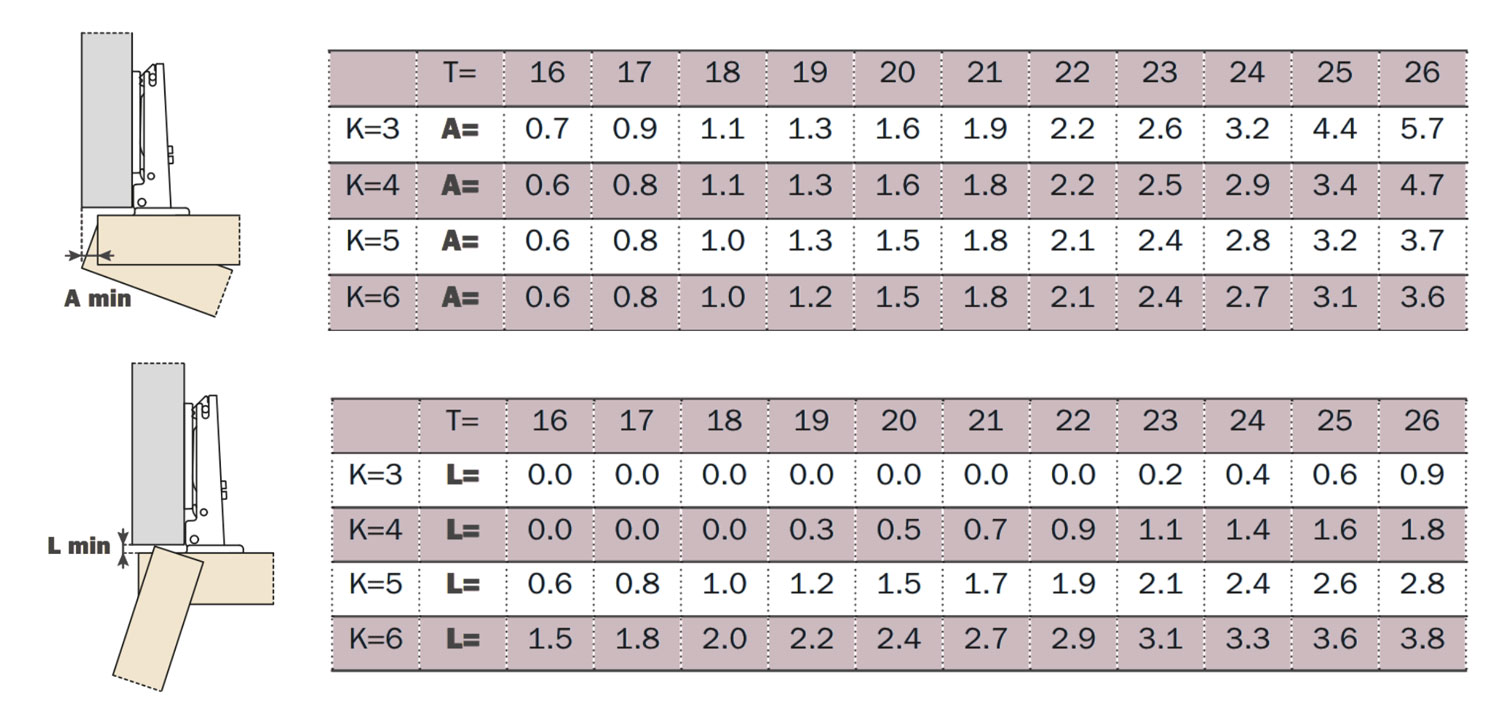

Space needed to open the door

The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.

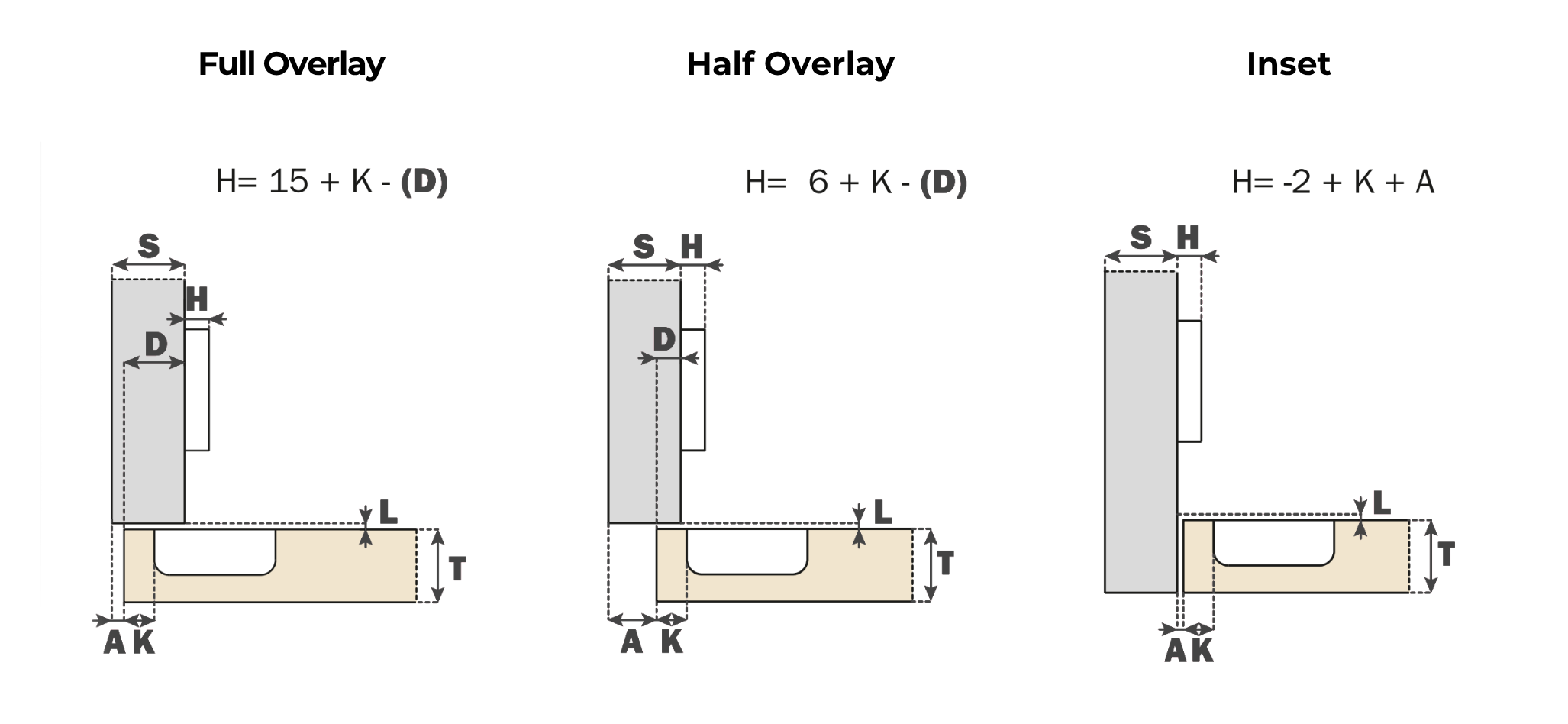

Hinge Overlays

Use these formulas to determine the type of hinge arm, the drilling distance “K” and the height of the mounting plate “H” which is necessary to solve each application problem.

Delivery: Delivery Time: 2-4 Working Days
Warranty: 5 years warranty
Certification: ISO9001 Quality Management System Certficiation

Reference C7P6AE9

In stock 999 Items

Salice Wing Type Mounting Plate

SALICE

BAV3M39F

AED 2.75

Durable steel construction ensures easy installation with the 37x32 mm drilling pattern and precise depth adjustment via the cam mechanism. Fixed with wood screws (B 3.5 DIN 7983), it offers three height options (H = 0, 2, and 3) for versatile use in furniture assembly.

Hinges

Salice Inline Mounting Plate - Clip on

SALICE

BAP3R39

AED 3.75

Convenient clip-on mounting plate engineered for effortless installation, ensuring secure support and precise alignment for cabinet hinges.
