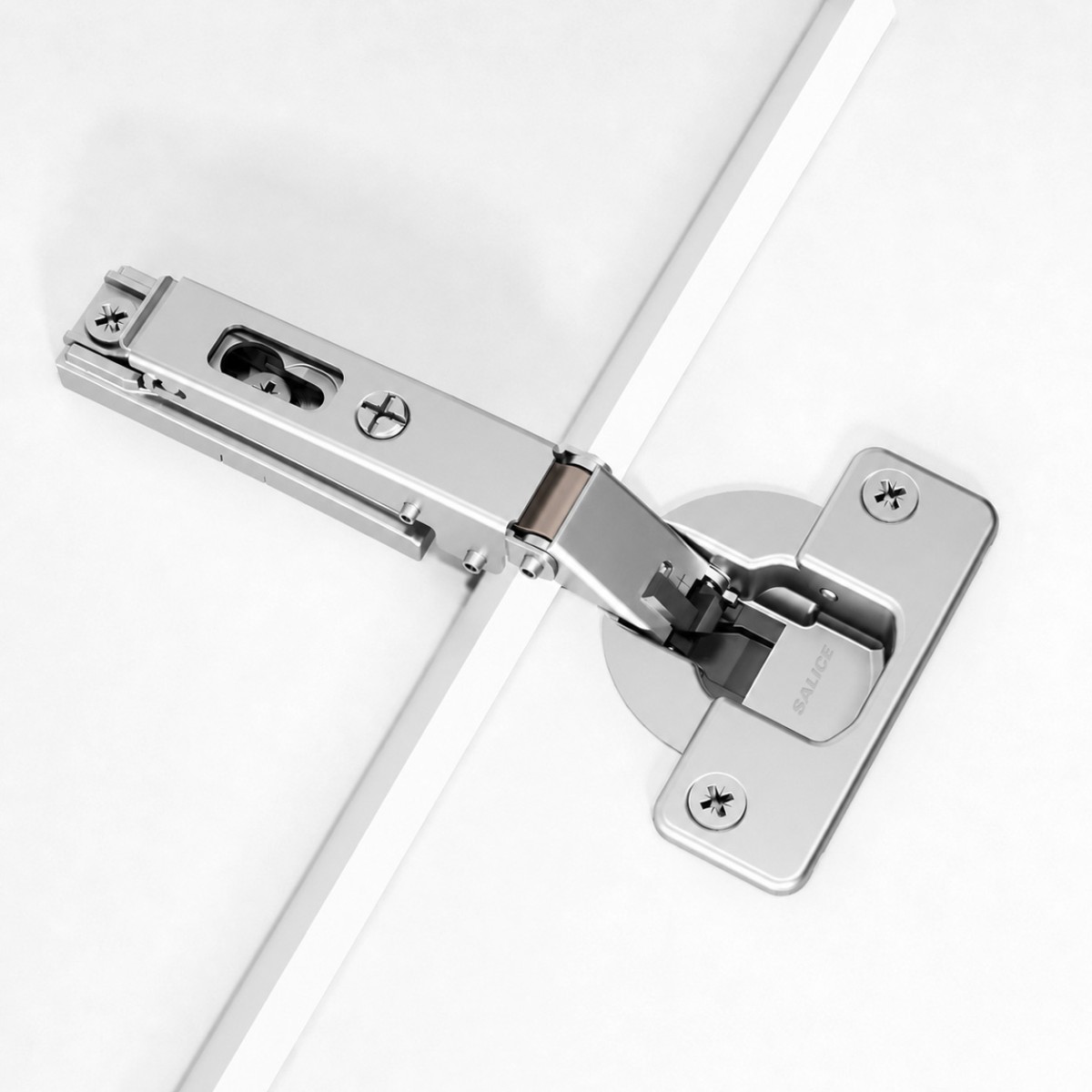

Silentia+ Series N Thick Door Hinge - 94° Opening Hinge

Name: Silentia+ Series N Thick Door Hinge - 94° Opening Hinge
Brand: SALICE
SKU: 277
Price: 18.25 AED
Availability: InStock

AED 18.25

Tax included

Soft-close hinge designed for thicker wooden doors from 20–40 mm. Features integrated Silentia+ damping technology for smooth, controlled, and silent closing, making it suitable for heavier or thicker furniture door applications.

Supplied as hinge only: flange cover, screw cover, and mounting plate are not included and must be purchased separately.

Overlay

Finish

Nickel

Description
Product Details

Silentia+ Series N Thick Door Hinges

Possible drilling distance on the door (K): from 3 to 14 mm.

Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates

Cup Dimension: Ø40 mm * 15.5 mm cup

Door Thickness: 20 - 40 mm

Drilling Distance: 52 mm

Opening Angle: 94°

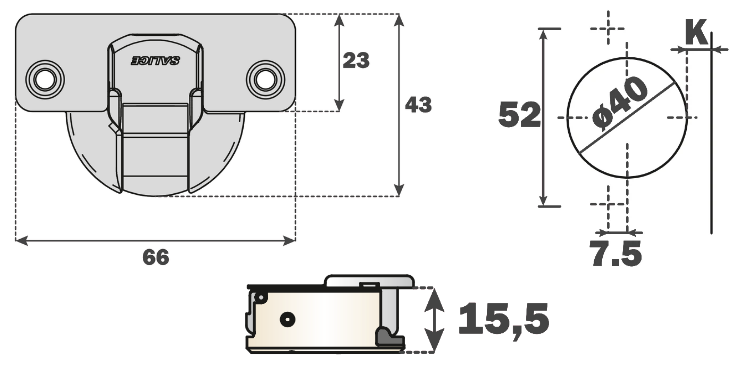

Hinge Cup Details

Approx. Number Of Hinges Required According To The Door

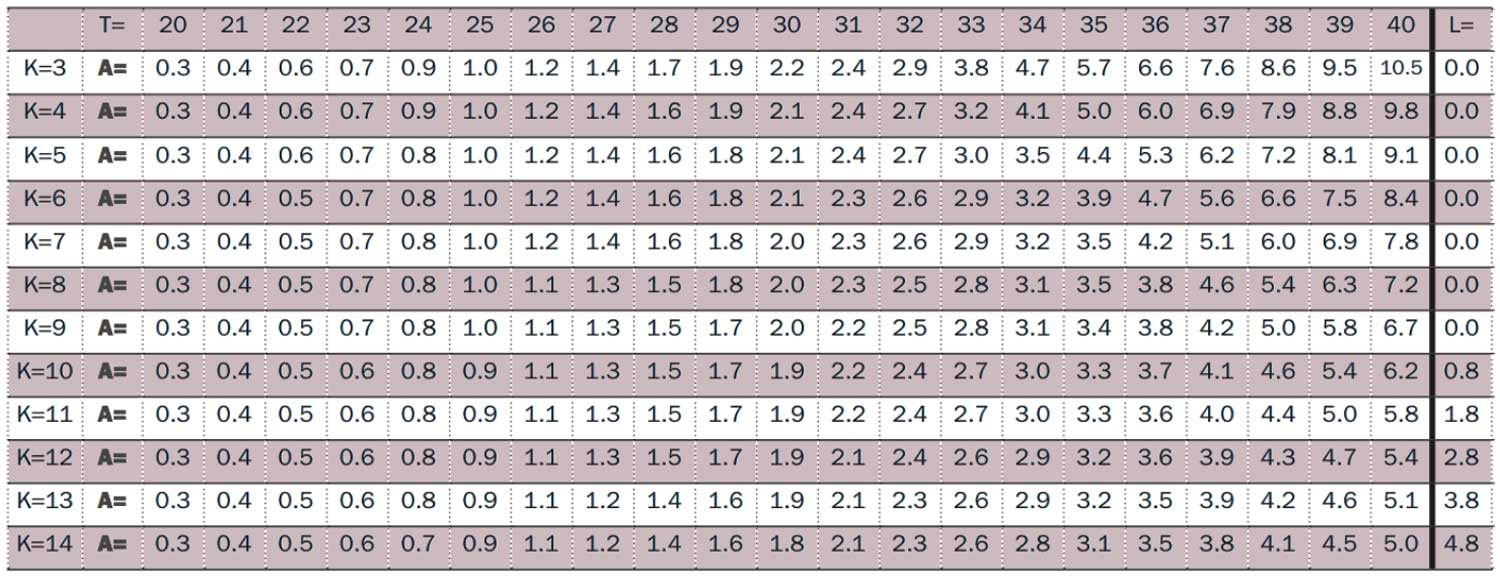

Space Needed To Open The Door

The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.

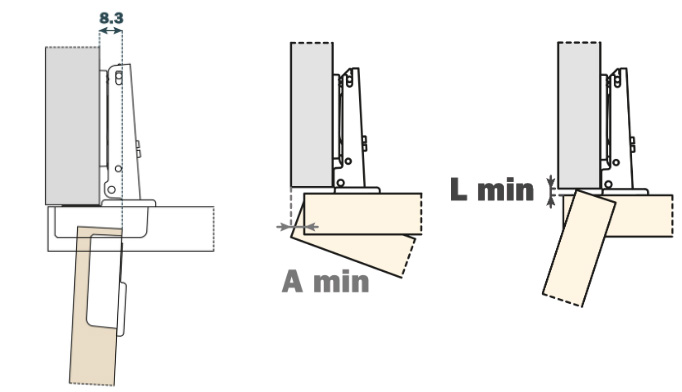

Projection Of The Door

Projection of the door from the cabinet side at the max. opening. The figures are based on a straight arm hinge, H=0 mm thickness of mounting plate and K value = 3 mm

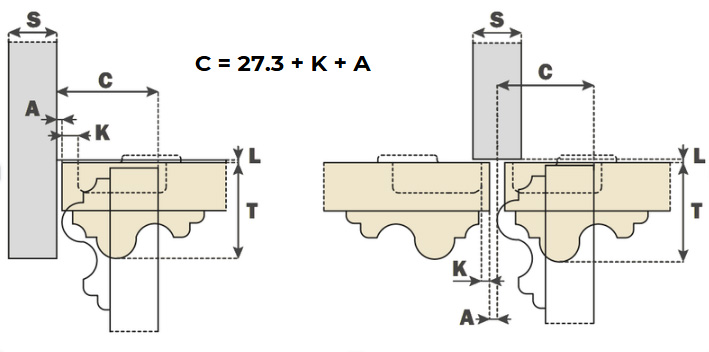

“C” value

Determines the maximum allowable moulded door thickness for unobstructed opening, considering the L, K, and T dimensions.

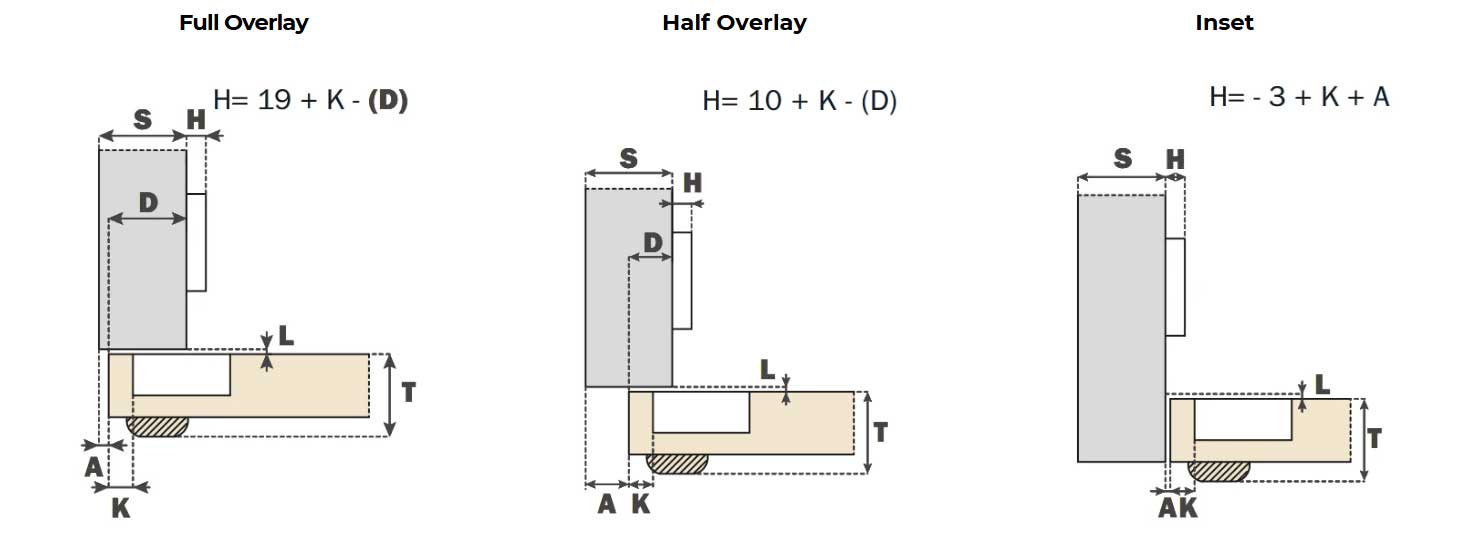

Hinge Overlays

Use these formulas to determine the type of hinge arm, the drilling distance “K” and the height of the mounting plate “H” which is necessary to solve each application problem.

Delivery: Delivery Time: 1-2 Working Days
Warranty: 5 Years Warranty
Hinge Type: Full Overlay
Inset Overlay
Opening Angle: 110°
Material: High-Quality Steel
Finish: Nickel
Titanium
Certification: TÜV Rheinland Certified
Door Thickness: 16 - 26mm
Cup Dimension: Ø 35mm * 13.5mm cup
Drilling Distance: 45mm

Reference CNA7AE9

In stock 999 Items
