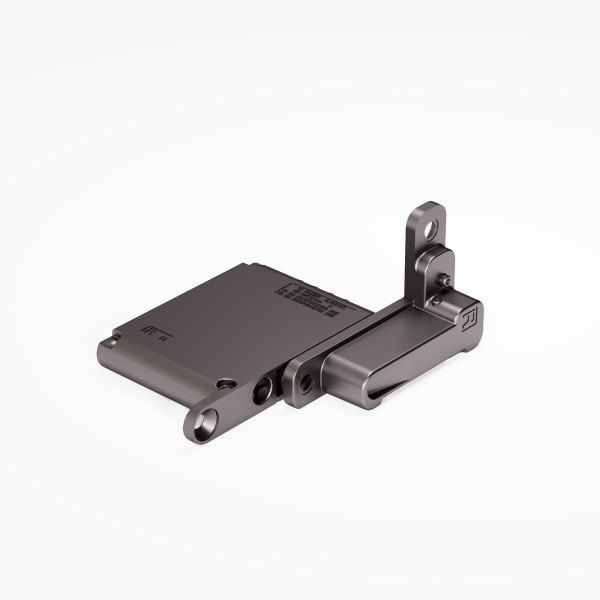

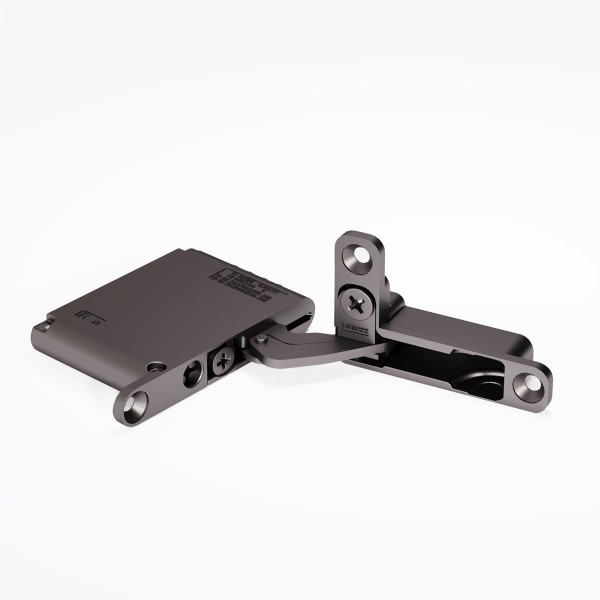

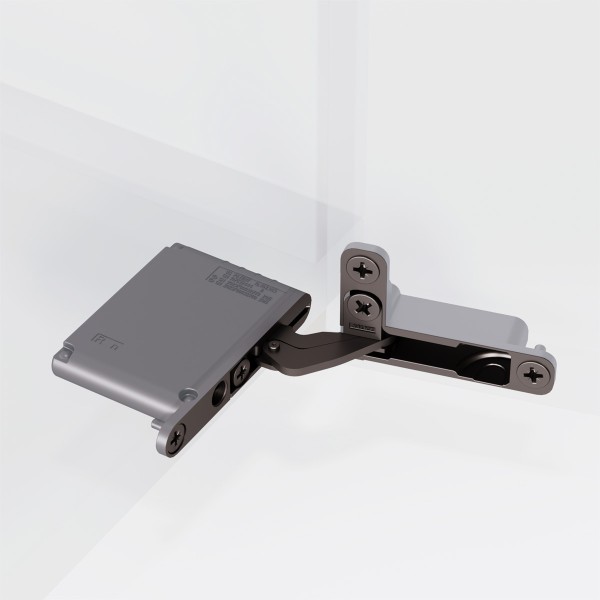

SALICE Air Series Concealed 105° Opening Hinge Titanium Finish

AED 215.75
Tax included

Compact, sleek hinge with an integrated soft-close mechanism for smooth closing. Perfect for kitchens, bathrooms, and living areas, it supports 18 mm wooden and aluminum doors up to 25 kg, 2700 mm tall, and 600 mm wide. Features a 16.5 mm deep cup, 105° opening angle, and adjustable drilling distances of 3–6 mm.

Note: Sold as a pair

You might also like



SALICE Air Series Concealed 105° Opening Hinge - Technical Details

Category: Air Hinge with Soft-Close

Material: Metal

Finish: [Nickel-plated/Matte Black/etc.]

Mounting Position: Top and bottom panel of the cabinet

Door Compatibility:

• Min. 18 mm thick wooden doors

• Aluminum-framed doors

Weight Capacity: Up to 25 kg

Door Dimensions:

• Max. Height: 2700 mm

• Max. Width: 600 mm

Cup Depth: 16.5 mm

Cup Diameter: Ø [Specify if needed]

Opening Angle: 105°

Drilling Distance (K):

• Adjustable 4–6 mm for wooden doors

• Fixed 4 mm for aluminum-framed doors

Overlay Type: [Full Overlay/Half Overlay/Inset]

L Dimension: 2.5 mm

Integrated Features:

• Soft-close mechanism for smooth, quiet closing

• Push self-opening system (optional)

Application Areas: Kitchens, bathrooms, and living spaces

Space needed to open the door

These values are calculated assuming that the doors have square edges. They are reduced if the doors have radiused edges.

Ovelay Technical Drawing

Door Projection

Projection of the door from the cabinet side at the max. opening. The figures are based on K value = 4  and door overlay = 17 mm.

Door Projection

Drilling Scheme for the Hinges:

Drilling Scheme for Hinges

Adjsutment Features:

  • Sideways adjustment from +2 to -2

    Turn the adjustment screw with a Phillips screwdriver to adjust the door sideways, ranging from +2 mm (closer) to -2 mm (further) for precise alignment.

  • Depth adjustment from +2 to -0.5

    Turn the adjustment screw with a Phillips screwdriver to adjust the door’s depth, ranging from +2 mm (closer) to -0.5 mm (further) for precise alignment.

  • Height adjustment from +1.5 to -1.5

    Turn the adjustment screw with a Phillips screwdriver to adjust the door's height, allowing a range from +1.5 mm (higher) to -1.5 mm (lower) for precise alignment and a seamless fit.
Delivery
Delivery Time: 1-2 Working Days
Warranty
5 years warranty
Certification
ISO9001 Quality Management System Certficiation
Awards
IF Design Award
Interzum Award
CEL6XE6XXV
