Instead of AED 85.88

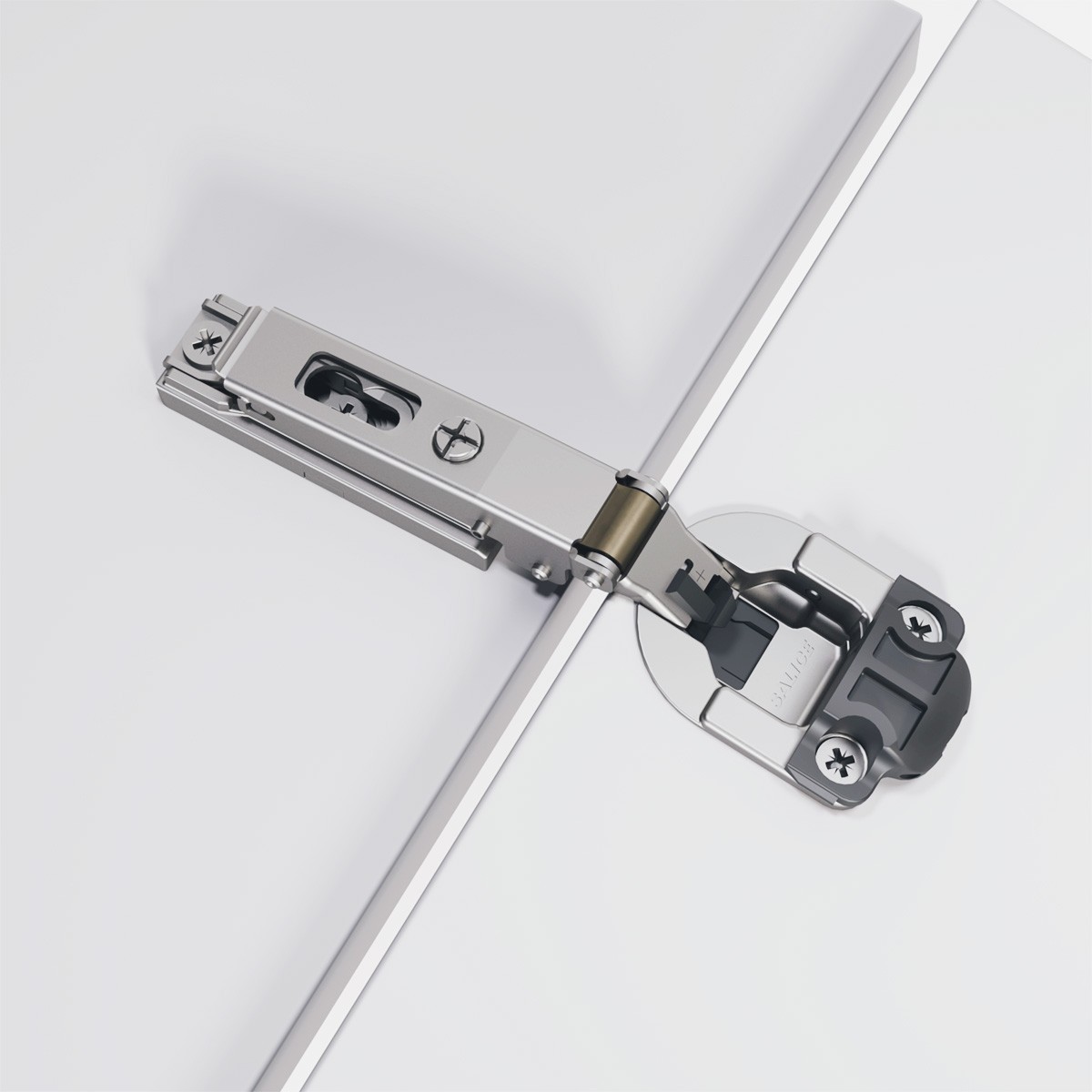

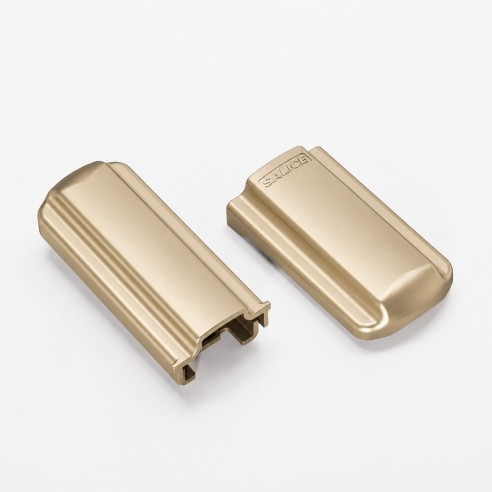

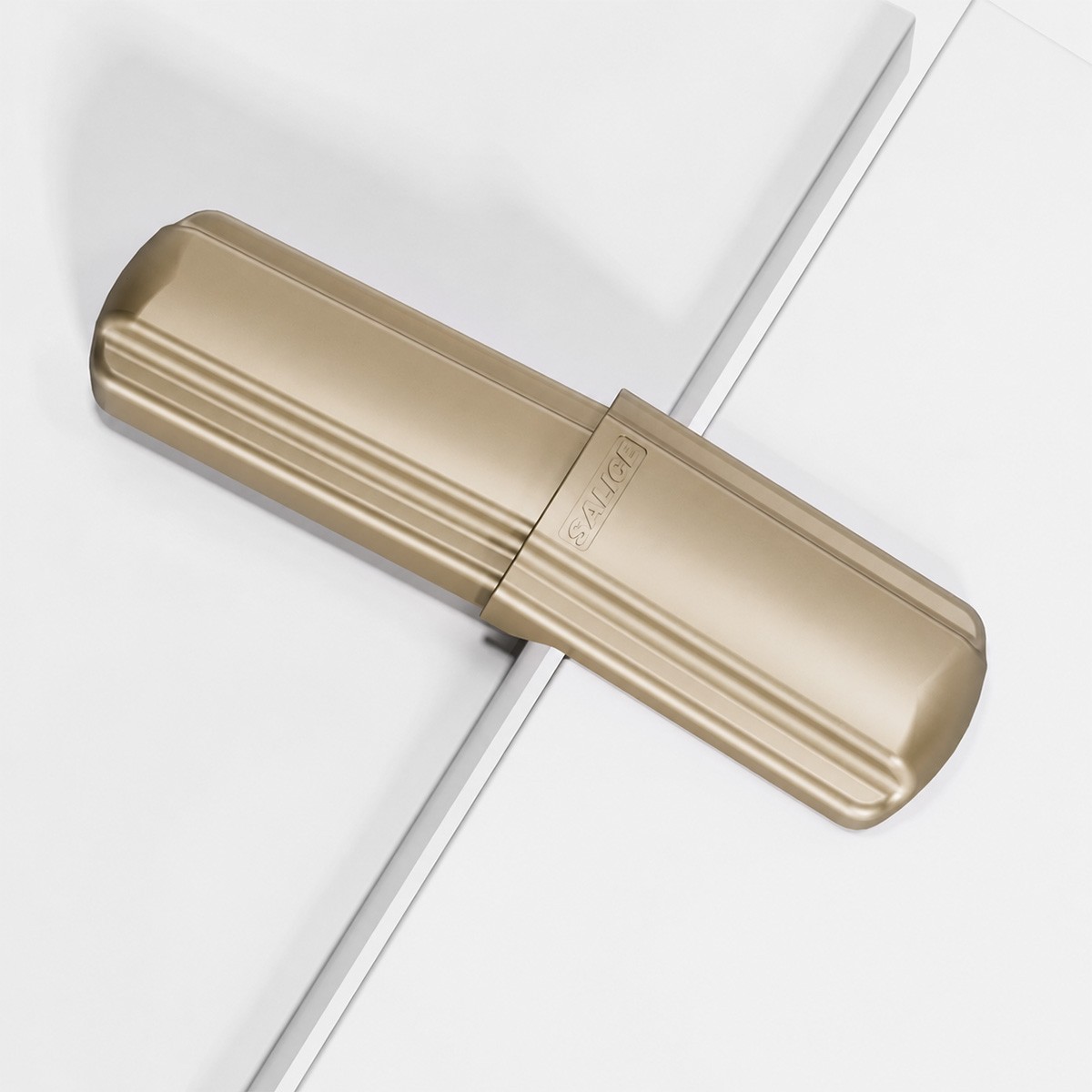

Concealed hinge with synchronized decorative covers that move together with the hinge, creating a clean and refined appearance while concealing the technical components. Interchangeable covers are available in a variety of finishes to complement the cabinet door and carcass. Compatible only with the BAP3R39 mounting plate.
Supplied as a complete set including hinge, door side cover, cabinet side cover, and BAP3R39 mounting plate
You might also like
Soft-close hinge with twin silicone-oil dampers and an adjustable damping mechanism for smooth, controlled closing—possible drilling distance on the door (K): from 3 to 6 mm.
*Adaptable only with longitudinal Domi snap-on mounting plates (BAP)
Cup Dimension: Ø35 mm * 13.5 mm cup
Door Thickness: 16 - 26mm
Drilling Distance: 24 mm
Opening Angle: 110° Opening
The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.
The figures are based on a straight arm hinge, H=0 mm thickness of mounting plate and K value = 3 mm.
With this formula you can obtain the max. thickness of the moulded door that can be opened without touching adjacent carcase sides, doors or walls, whilst bearing in mind the above L•K•T values.
