Salice Conecta 94° Nickel Finish Door Ovelay
Salice Conecta 94° Nickel Finish Door Ovelay

Salice Conecta 25mm Hinge for Wooden Door

AED 151.25
Tax included

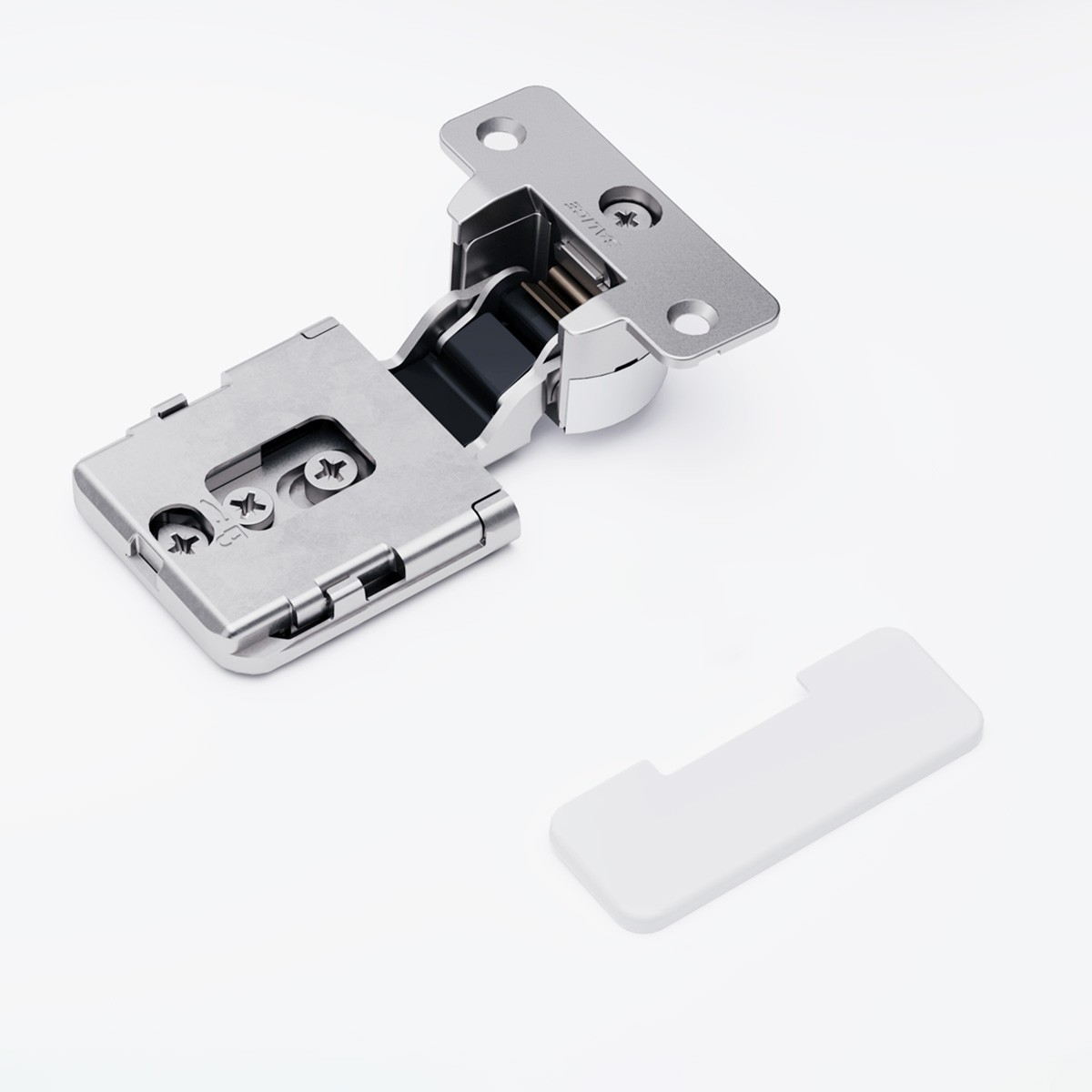

Concealed hinge designed to be completely hidden within the door and cabinet side, creating a clean and seamless appearance. Its innovative design makes it suitable for a wide range of furniture styles and applications.

SET: 2 Hinges + 2 Flange Covers

Finish
  • Nickel
  • Titanium
Door Overlay

You might also like



Conecta Concealed Hinge – Technical Details

Category: Concealed Hinge for Wooden and Aluminium-Framed Doors

Material: Steel (Zinc Alloy, Nickel-plated)

Finish Options: Nickel-plated, Titanium

Design: Completely hidden inside the door and the side of the cabinet for a concealed, sleek look

Mounting Position: Recessed insertion in both the door and the side panel

Opening Angle: 94°

Integrated Feature: Available with an integrated soft-close mechanism for smooth, decelerated, and silent closing

Adjustments:

• Sideways Adjustment: -1 mm to +2 mm

• Height Adjustment: -2.5 mm to +2.5 mm

• Depth Adjustment: 0 mm to +3 mm

Cup Diameter: Ø 35 mm

Drilling Distance: Fixed at 10 mm from the edge of the door to the centre of the hole

Door Thickness Compatibility:

• 22 mm and 25 mm thick doors, wood or aluminium-framed

Side Panel Thickness Compatibility: From 16 mm

L Dimension: 3.5 mm

Application Areas: Suitable for various rooms including bedrooms, living rooms, kitchens, and bathrooms.

Aesthetic Features:

• Customisable cover caps for both the door and side panel

• Elegant design elements for a refined, sophisticated appearance

Usage: Ideal for large and heavy wooden and aluminium-framed doors

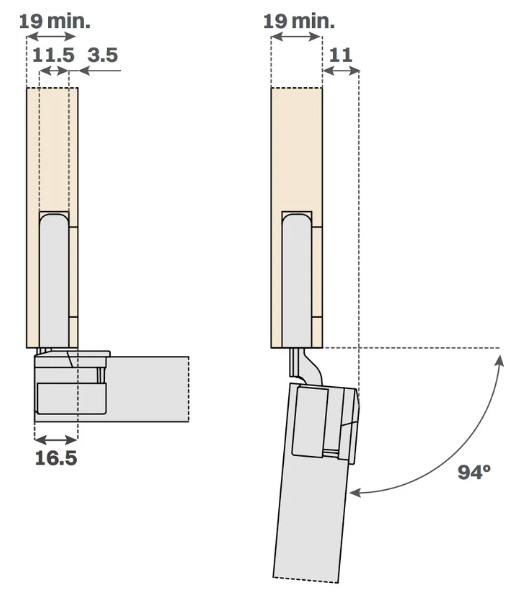

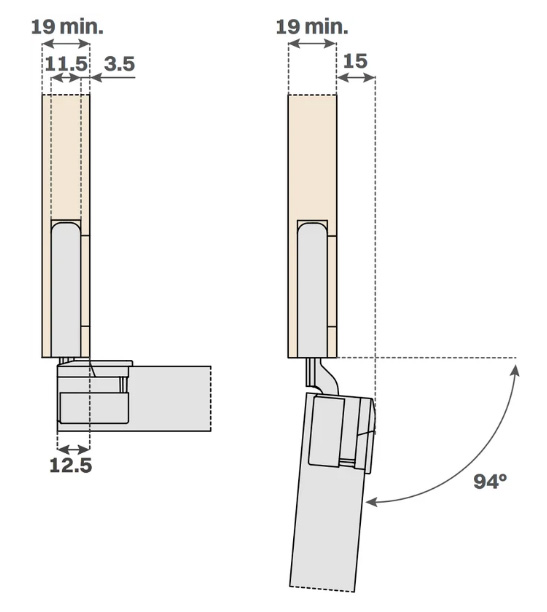

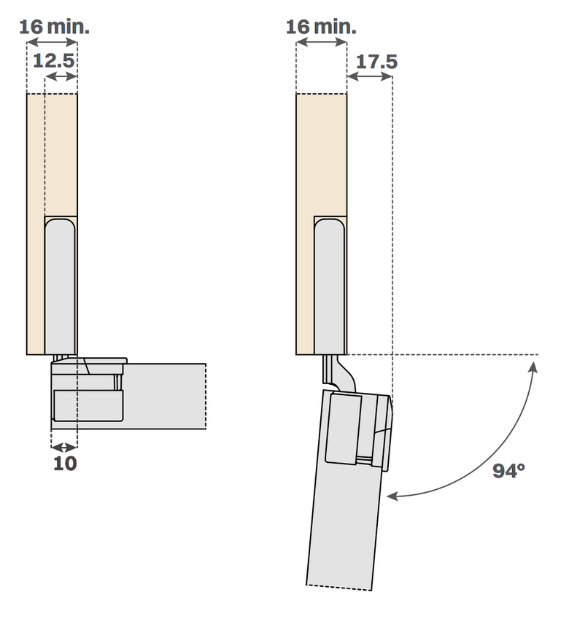

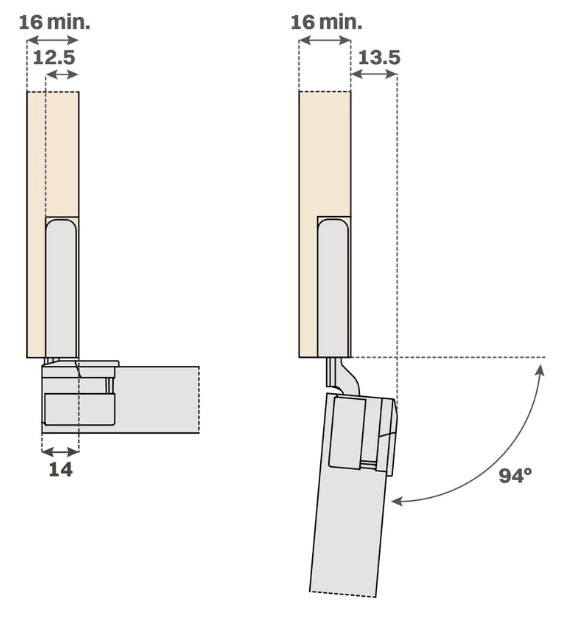

Holder Drilling & Installation:

Conecta App

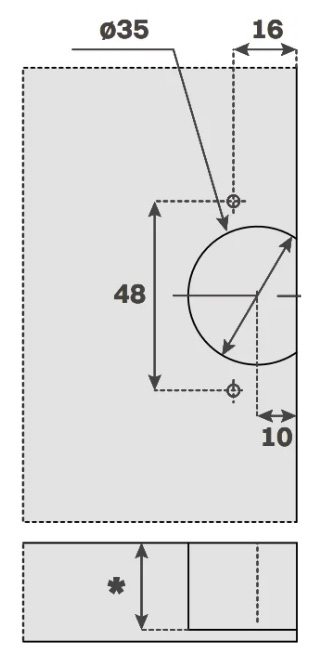

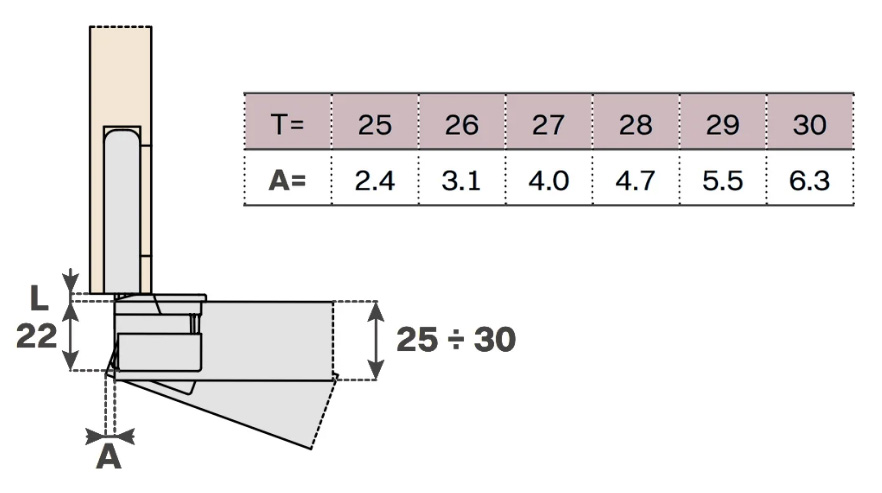

Hinge Drilling & Installation

Conecta Drilling

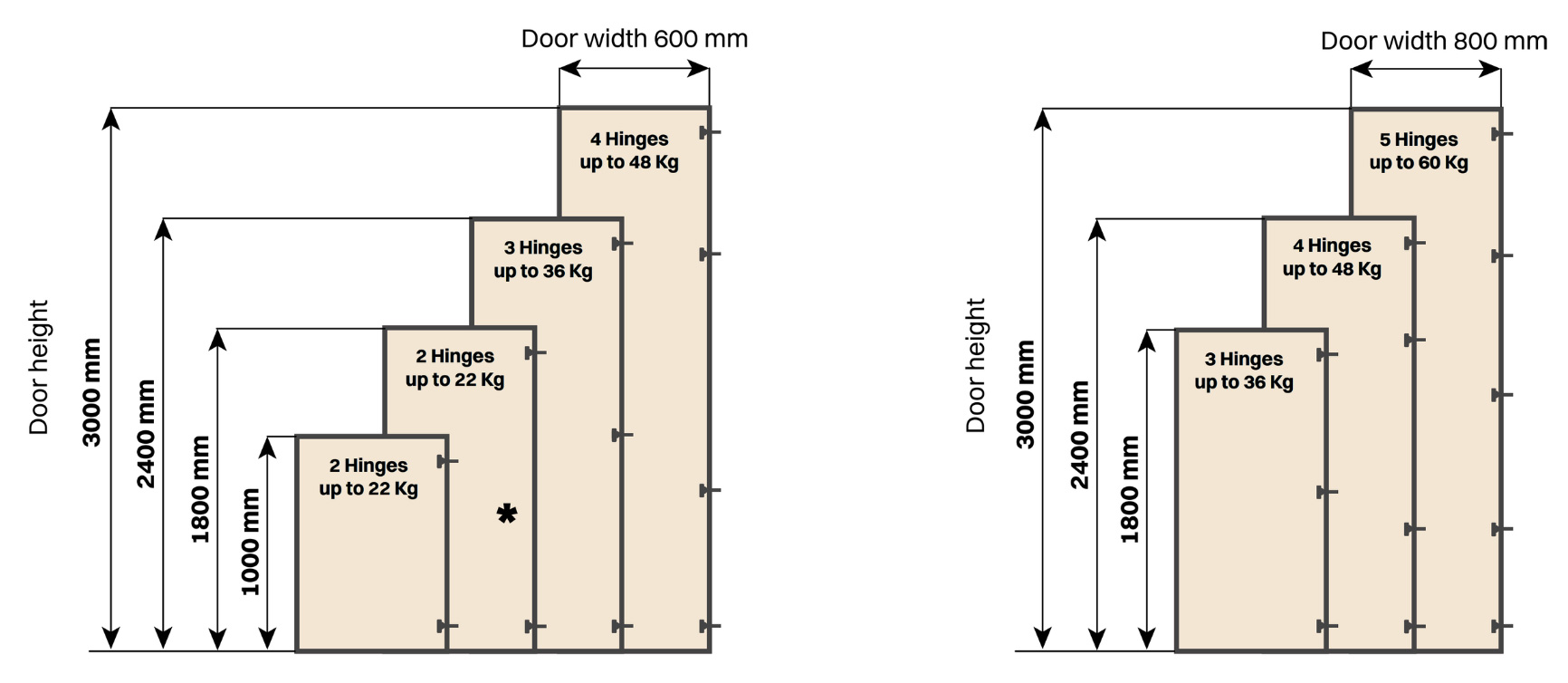

Approx. number of hinges required according to the door dimension and weight:

Conecta Hinge Drilling

*The addition of one hinge improves the rigidity of the door and allows higher weights than indicated.

Adjsutment Features:

  • Sideways adjustment from -1 to +2

    Turn the adjustment screw to adjust the sideways position for wooden doors, ranging from -1 mm (further) to +2 mm (closer) for optimal fit

  • Height adjustment from -2,5 to +2,5

    Turn the adjustment screw to adjust the height of the hinge for wooden doors, ranging from -2.5 mm to +2.5 mm for precise alignment.

  • Depth adjustment from 0 to +3

    Turn the adjustment screw to adjust the depth, ranging from 0 mm to +3 mm for optimal fit.
Delivery
Delivery Time: 1-2 Working Days
Warranty
5 Years Warranty
Quality
80000 Cycle Test
Awards
Interzum Award
Certification
ISO9001 Quality Management System Certficiation
TÜV Rheinland Certified
CQA3JE9XXV
