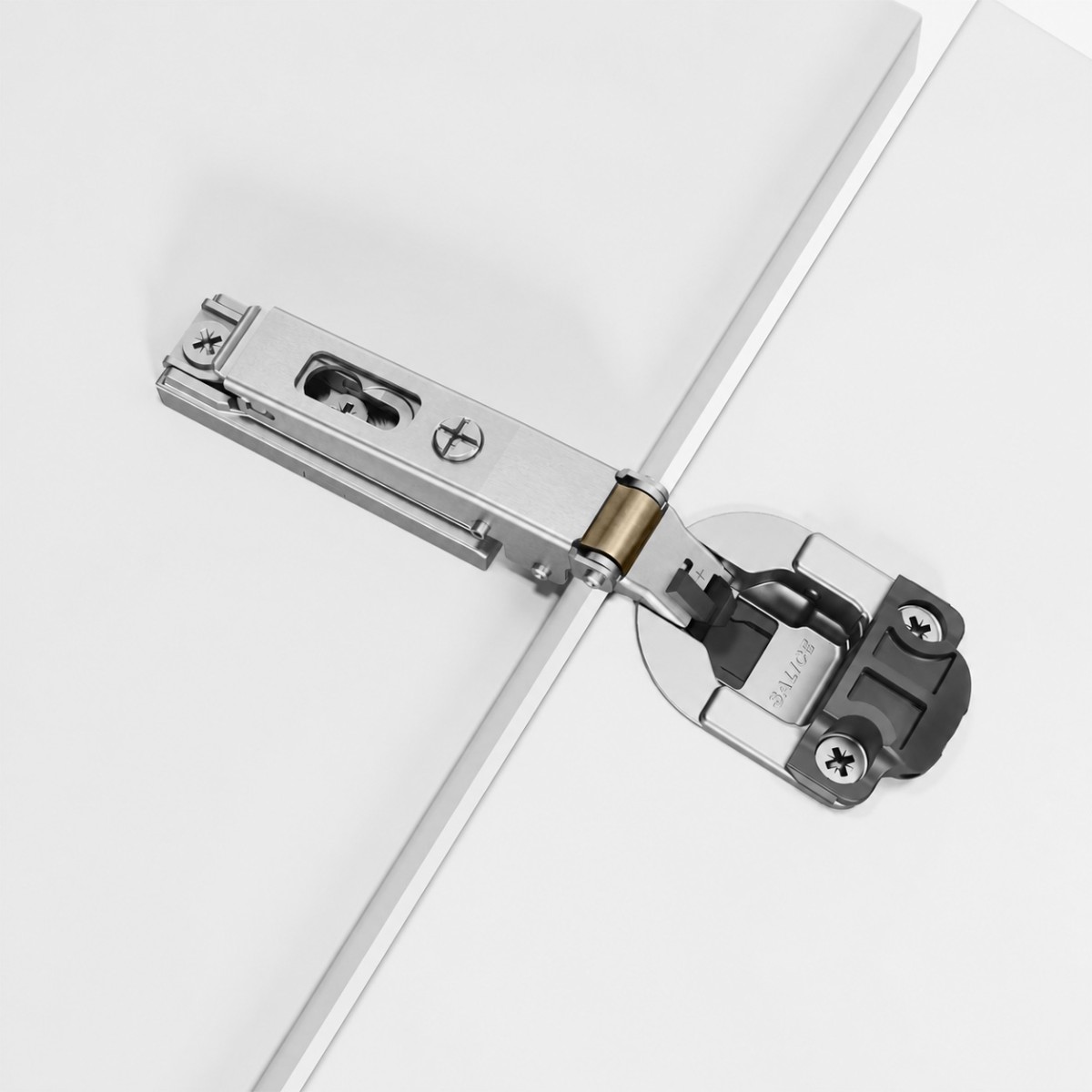

Salice Lapis Series 110° Full Overlay Hinge
Salice Lapis Series 110° Full Overlay Hinge

Salice Lapis Series 110° Full Overlay Hinge

AED 24.50
Tax included

This 110° Full Overlay Hinge features a soft-close mechanism, adjustable drilling (3-6mm), and quiet performance. Lapis stands out with its refined design, concealed components, and 12 finishes offering 144 combinations for high customization.

You might also like



Lapis Series 110° Full Overlay Hinge

Soft-close hinge with twin silicone-oil dampers and an adjustable damping mechanism for smooth, controlled closing—possible drilling distance on the door (K): from 3 to 6 mm.

*Adaptable only with longitudinal Domi snap-on mounting plates (BAP)

Cup Dimension: Ø35 mm * 13.5 mm cup

Door Thickness: 16 - 26mm

Drilling Distance: 24 mm

Opening Angle: 110° Opening

Hinge Cup Details

Hinge Cup Details

Number Of Hinges Required To Door Dimension And Weight

Number of hinges required to door dimension and weight

Space Needed To Open The Door

Space needed to open the door

The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.

Projection Of The Door

The figures are based on a straight arm hinge, H=0 mm thickness of mounting plate and K value = 3 mm.

“C” value

With this formula you can obtain the max. thickness of the moulded door that can be opened without touching adjacent carcase sides, doors or walls, whilst bearing in mind the above L•K•T values.

Adjustable Integrated Soft-close Mechanism

Adjustable Integrated Soft-close Mechanism

Hinge Overlays

Hinge Overlays
Delivery
Delivery Time: 1-2 Working Days
Warranty
5 Years Warranty
Hinge Type
Full Overlay 110° Hinge
Mechanism
Integrated Soft-Close with Twin Silicone-Oil Dampers
Opening Angle
110°
Material
High-quality Stainless Steel, Plastic
Certification
TÜV Rheinland Certified
Door Thickness
Minimum Thickness of 16 mm
Adjustment
Simple Switch For Decelerating Effect
Mounting Type
Inline
Compatibility
Full Overlay
Cup Diameter
Ø 35 mm
Cup Depth
13.5 mm
Drilling Pattern
37x32 mm Standard For Cabinet Sides
Drilling Distance
Adjustable from 3 mm to 6 mm
Load Capacity
Supports Doors Up To 15 Kg (33 Lbs)
Design
Conceals Technical Components With Two Moving Covers
C716AE9
99 Items
