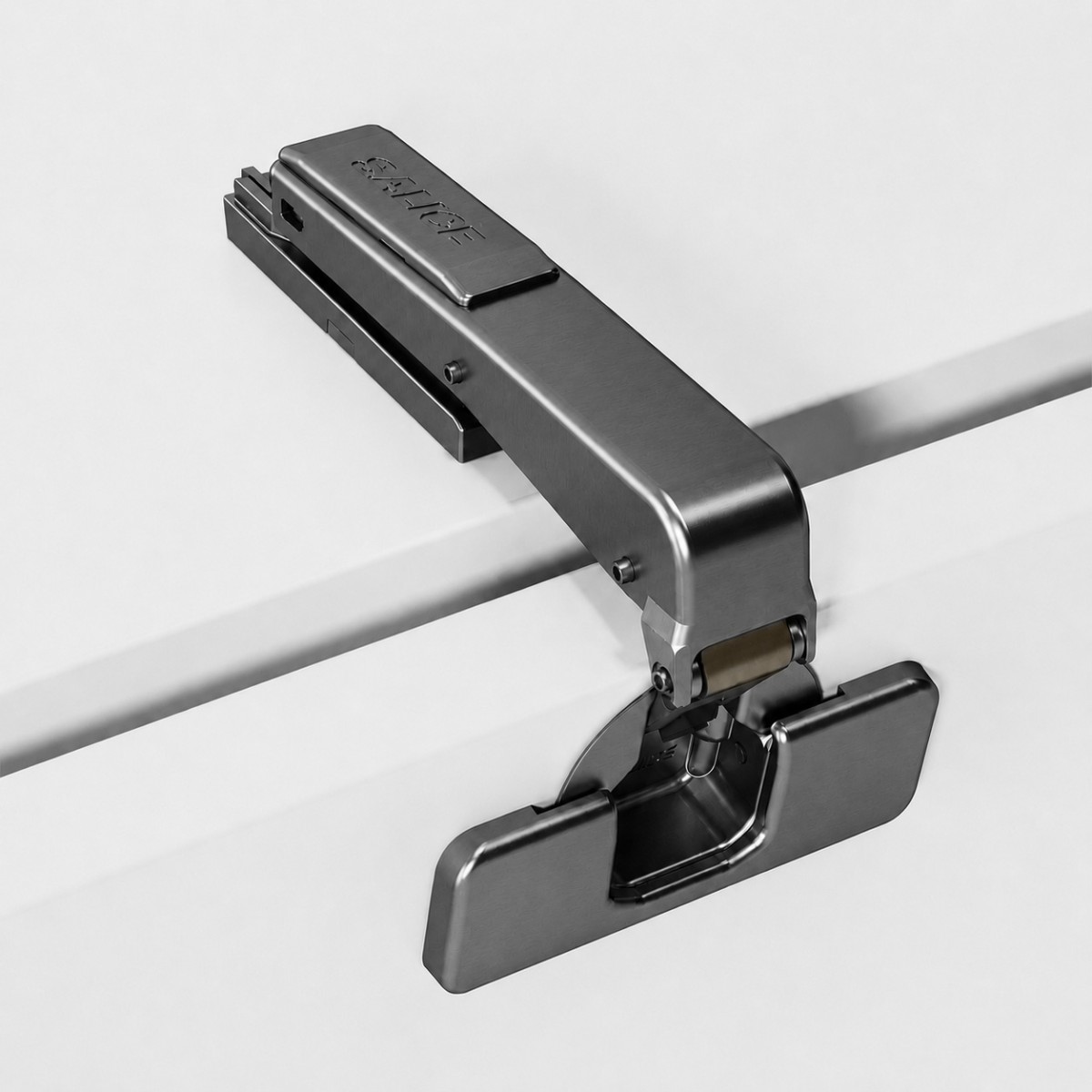

Designed for corner and offset configurations, enabling doors to clear internal projections or adjacent panels in non-standard cabinet layouts. Provides a 110° opening for smooth and functional access where standard hinges cannot be used.
Supplied as a complete set including hinge and inline mounting plate. The inline mounting plate features 3D adjustment for precise door alignment.
You might also like
For cabinet sides with 37x32 mm standard drilling.
Possible drilling distance on the door (K): from 3 to 6 mm. Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
Cup Dimension: Ø 35mm * 13.5mm cup
Door Thickness: 16 - 26mm
Drilling Distance: 45mm

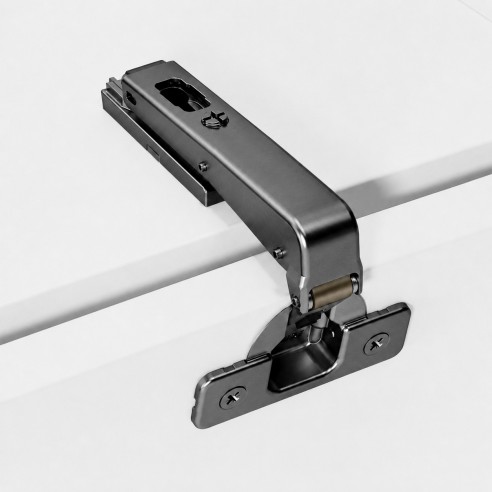

Designed to allow door installation in corner and offset configurations, enabling doors to clear internal projections or adjacent panels. Ideal for applications where standard hinges cannot accommodate obstructions or non-linear cabinet layouts.
