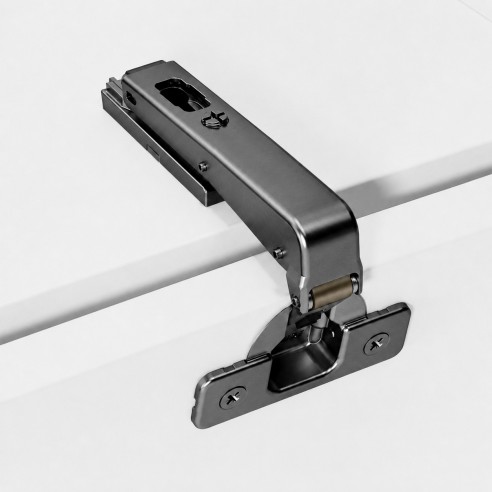

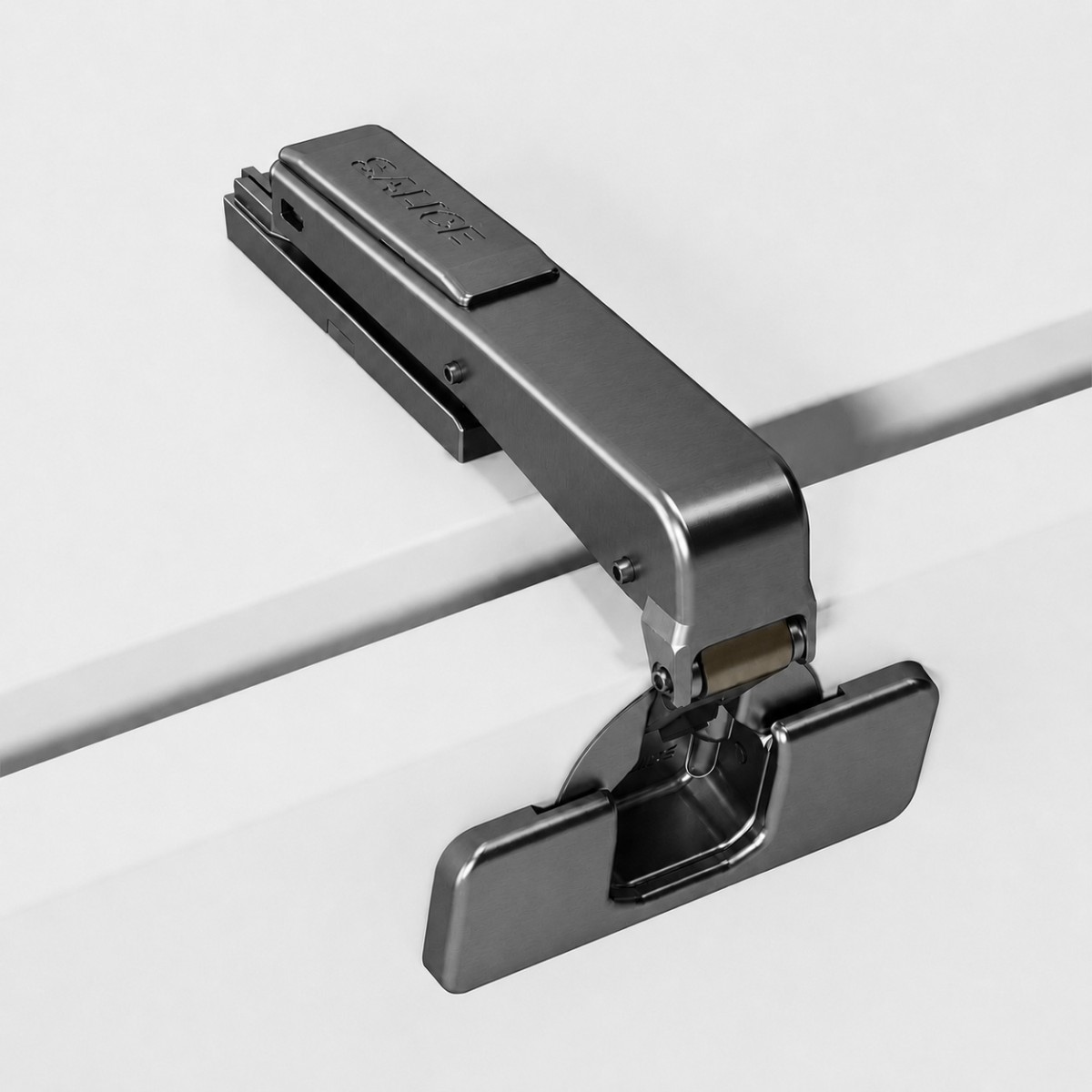

Designed for 37x32 mm standard drilling on cabinet sides, with a Ø 35 mm cup and 13.5 mm depth for a secure fit. Compatible with minimum 16 mm thick doors, ensuring stability and durability. The 110° opening angle allows smooth, efficient access for modern cabinetry.
You might also like
For cabinet sides with 37x32 mm standard drilling.
Possible drilling distance on the door (K): from 3 to 6 mm. Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
Cup Dimension: Ø 35mm * 13.5mm cup
Door Thickness: 16 - 26mm
Drilling Distance: 45mm
Designed to allow door installation in corner and offset configurations, enabling doors to clear internal projections or adjacent panels. Ideal for applications where standard hinges cannot accommodate obstructions or non-linear cabinet layouts.
