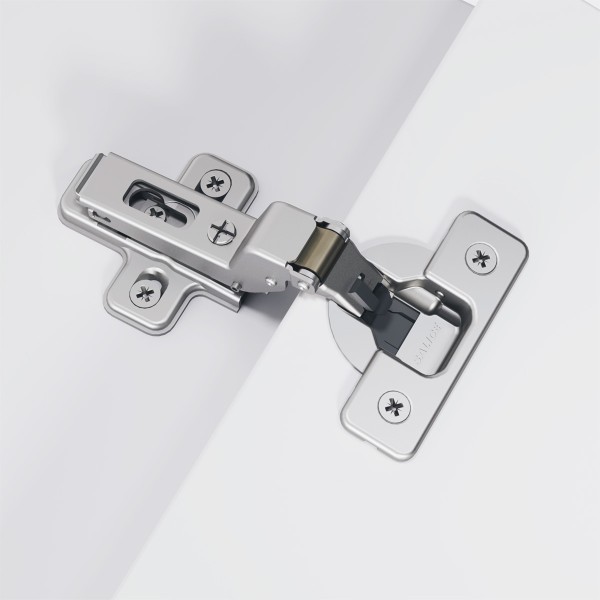

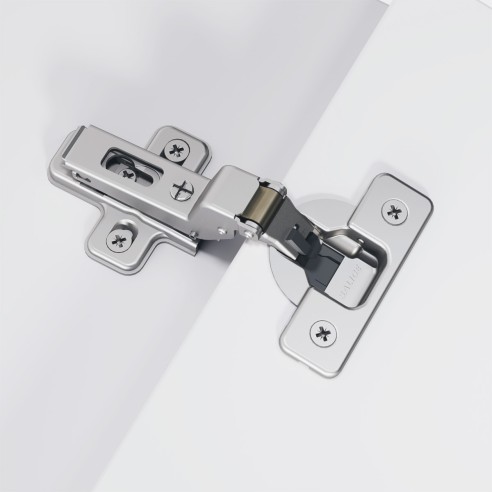

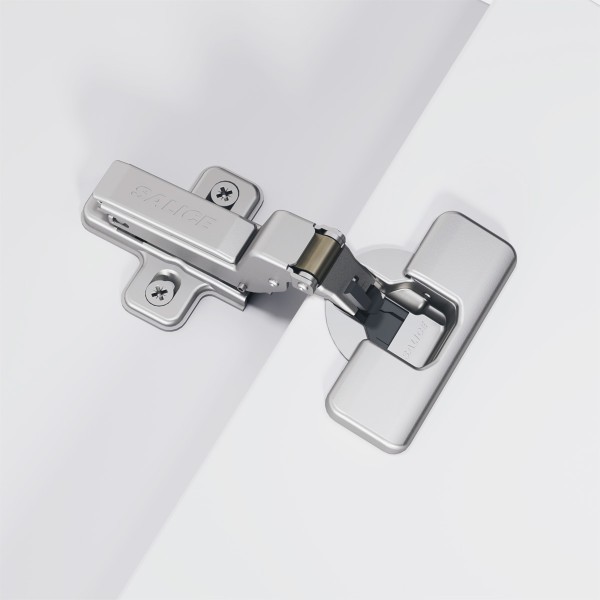

Durable nickel-plated hinge with integrated soft-close dampers for smooth, quiet operation. Supports inset doors up to 15 kg, with a 110° opening angle. Features a Ø 35 mm, 13.5 mm deep cup, adjustable drilling (3-6 mm), and compatibility with 16 mm+ thick doors and 37x32 mm drilling patterns.
You might also like
|
Hinge Type: Concealed/European Hinge Mechanism: Integrated Soft-Close with Twin Silicone-Oil Dampers Adjustment: Simple switch for decelerating effect Material: High-quality Stainless Steel, Plastic Finish Options: Nickel Plated Mounting Type: Wing Compatibility: Inset Cabinet Doors Opening Angle: 110° Load Capacity: Supports doors up to 15 kg (33 lbs) Cup Diameter: Ø 35 mm Cup Depth: 13.5 mm Drilling Pattern: 37x32 mm standard for cabinet sides Drilling Distance: Adjustable from 3 mm to 6 mm Door Thickness: Minimum thickness of 16 mm |
 |
