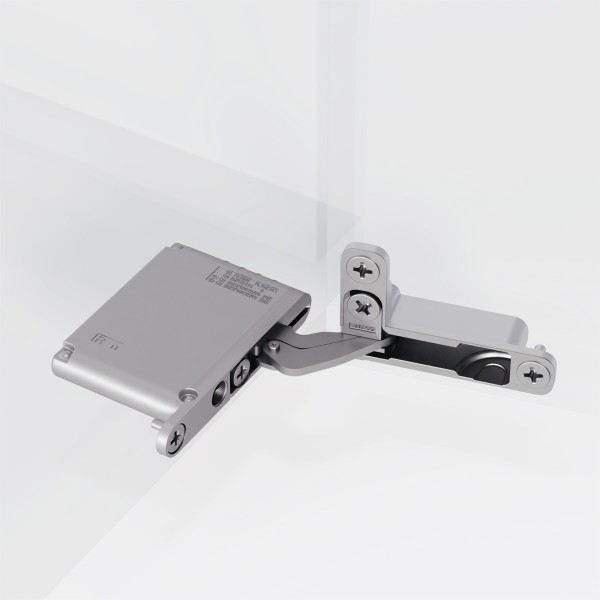

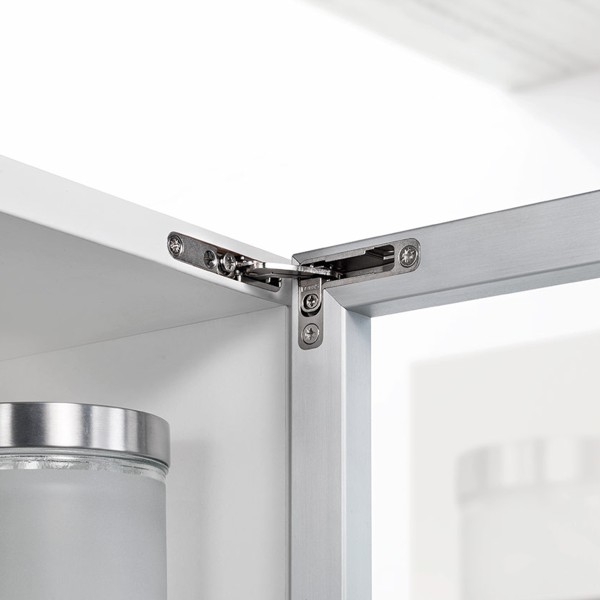

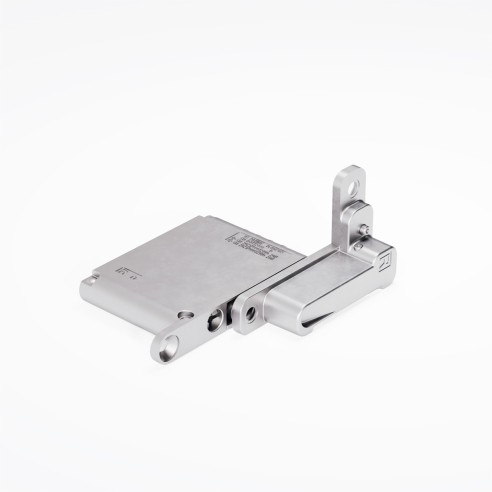

Nickel-finish hinge with soft-close mechanism and compact design. Supports 18 mm doors up to 25 kg, 2700 mm tall, and 600 mm wide. Features a 16.5 mm cup, 105° opening angle, and 3–6 mm drilling adjustment.
You might also like
Category: Air Hinge with Soft-Close
Material: Metal
Finish: [Nickel-plated/Matte Black/etc.]
Mounting Position: Top and bottom panel of the cabinet
Door Compatibility:
• Min. 18 mm thick wooden doors
• Aluminum-framed doors
Weight Capacity: Up to 25 kg
Door Dimensions:
• Max. Height: 2700 mm
• Max. Width: 600 mm
Cup Depth: 16.5 mm
Cup Diameter: Ø [Specify if needed]
Opening Angle: 105°
Drilling Distance (K):
• Adjustable 4–6 mm for wooden doors
• Fixed 4 mm for aluminum-framed doors
Overlay Type: [Full Overlay/Half Overlay/Inset]
L Dimension: 2.5 mm
Integrated Features:
• Soft-close mechanism for smooth, quiet closing
• Push self-opening system (optional)
Application Areas: Kitchens, bathrooms, and living spaces
Space needed to open the door
These values are calculated assuming that the doors have square edges. They are reduced if the doors have radiused edges.
Door Projection
Projection of the door from the cabinet side at the max. opening. The figures are based on K value = 4 and door overlay = 17 mm.
