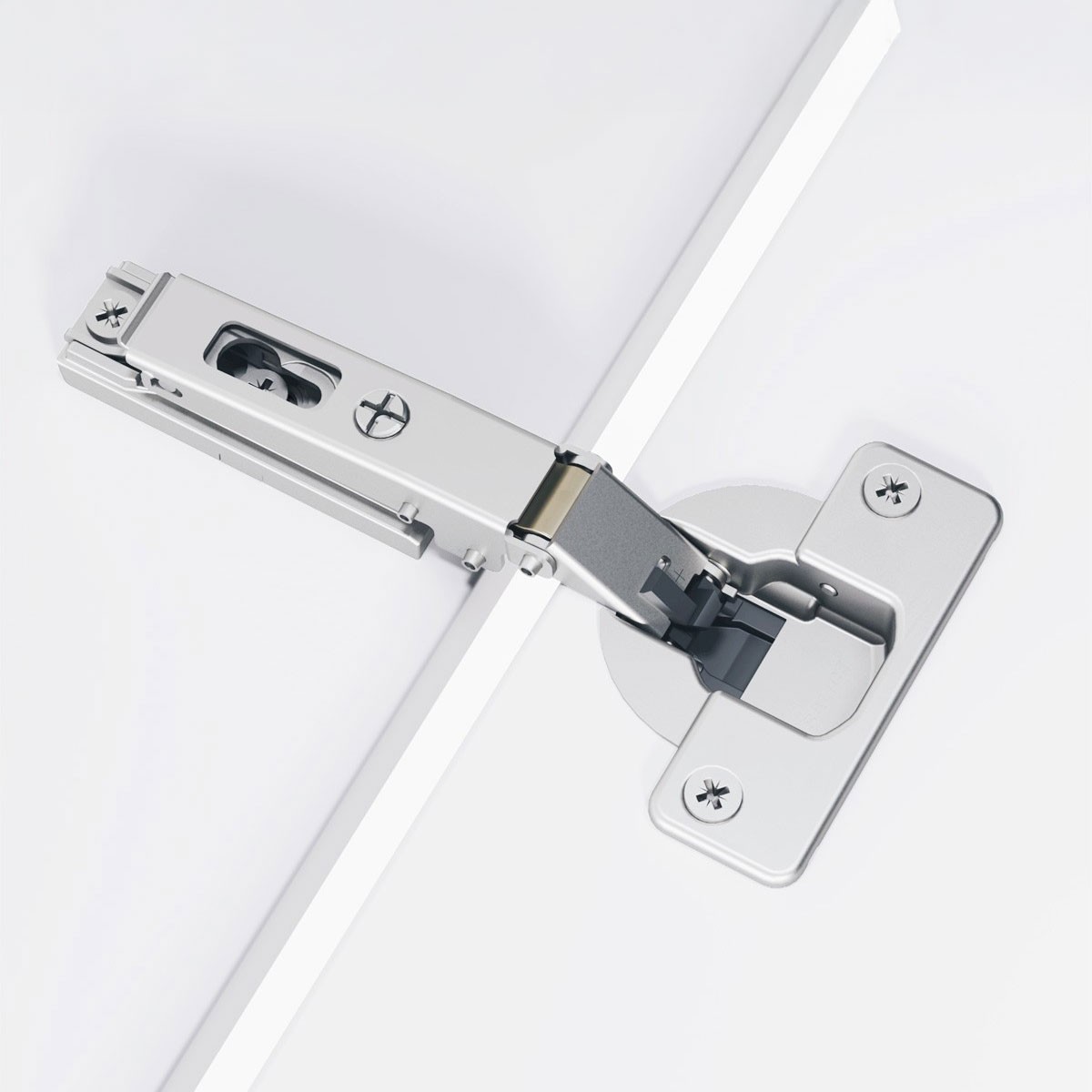

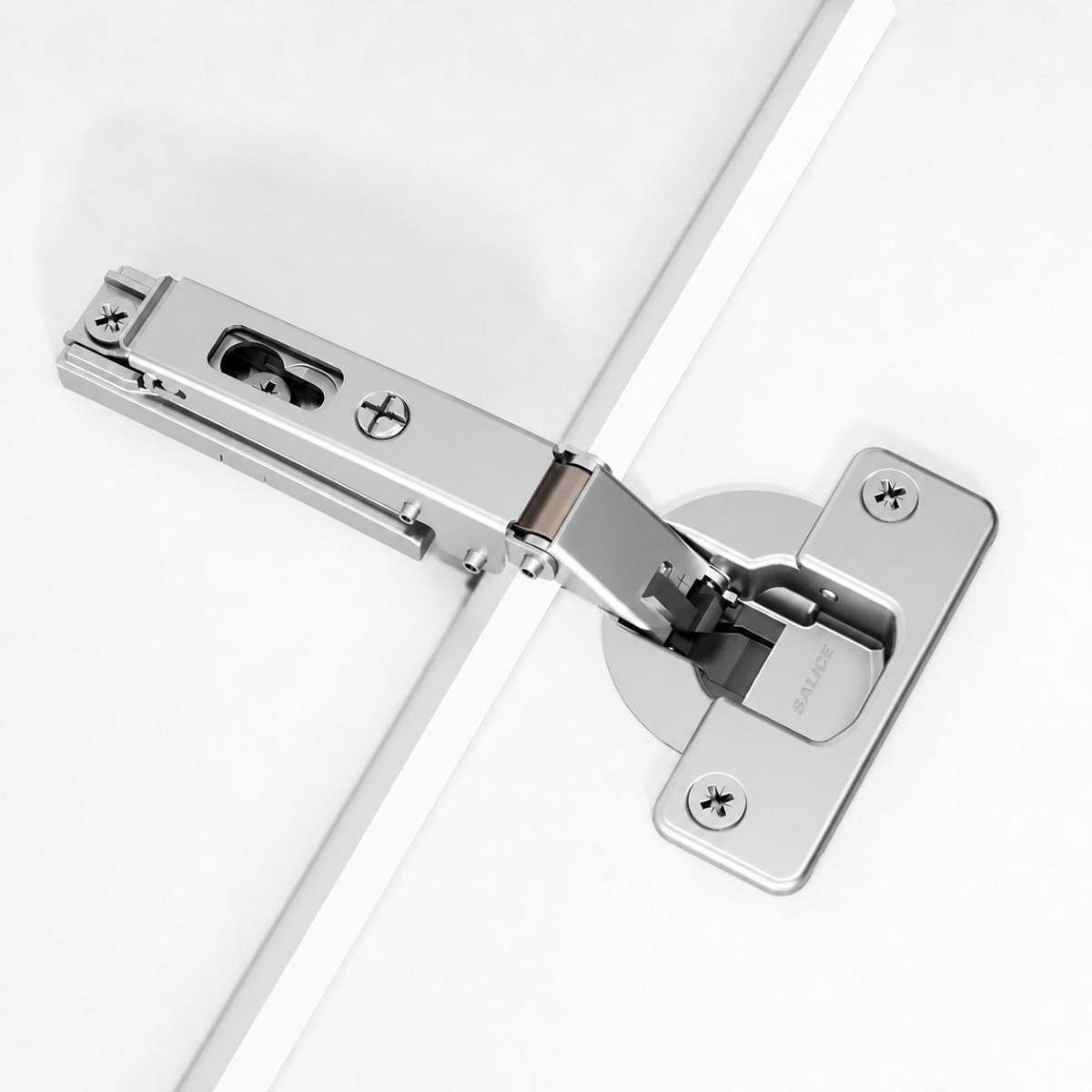

Salice Silentia+ 700 Series 110° Opening Hinge Full Nickel
Salice Silentia+ 700 Series 110° Opening Hinge Full Nickel

Salice Silentia+ 700 Series 110° Opening Hinge

AED 10.50
Tax included

Soft-close hinge designed for wooden doors, featuring twin silicone oil dampers integrated within the cup for smooth and controlled closing. The deceleration can be easily adjusted via a simple switch.

Supplied as hinge only: flange cover, screw cover, and mounting plate are not included and must be purchased separately.

Overlay
Finish
  • Nickel
  • Titanium



Silentia+ Series 700 - 110° Opening

Possible drilling distance on the door (K): from 3 to 6 mm.

Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

Cup Dimension: Ø 35mm *  13.5mm cup

Door Thickness: 16 - 26mm

Drilling Distance: 45mm

Hinge Cup Details

Hinge Cup Details

Number of hinges required to door dimension and weight

Number of hinges required to door dimension and weight

Space needed to open the door

Space needed to open the door

The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.

Hinge Overlays

Use these formulas to determine the type of hinge arm, the drilling distance “K” and the height of the mounting plate “H” which is necessary to solve each application problem.

Hinge Overlays
Delivery
Delivery Time: 1-2 Working Days
Warranty
5 years warranty
Hinge Type
Full Overlay
Half Overlay
Inset Overlay
Opening Angle
110°
Material
High-Quality Steel
Finish
Nickel
Titanium
Certification
TÜV Rheinland Certified
Door Thickness
16 - 26mm
Cup Dimension
Ø 35mm * 13.5mm cup
Drilling Distance
45mm
