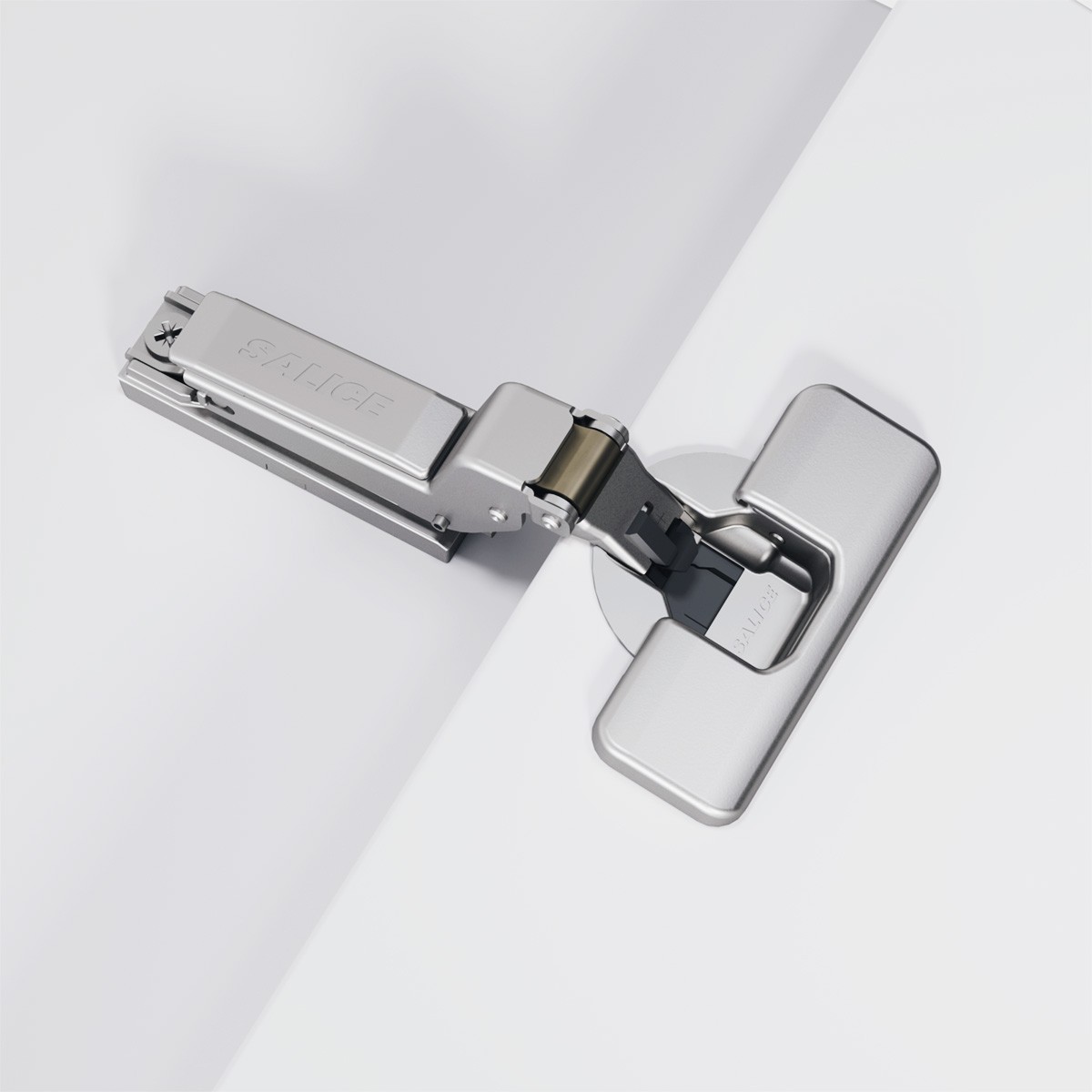

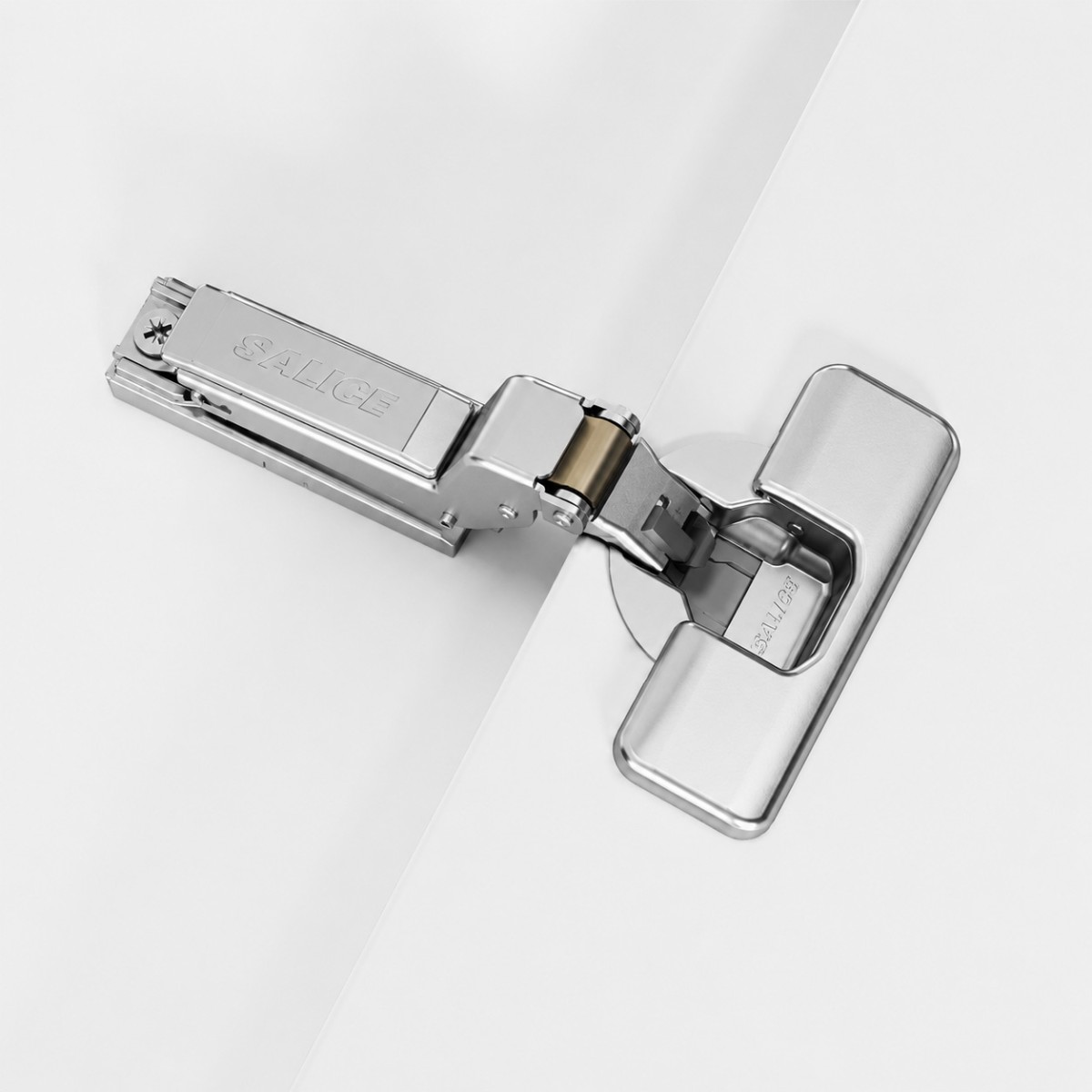

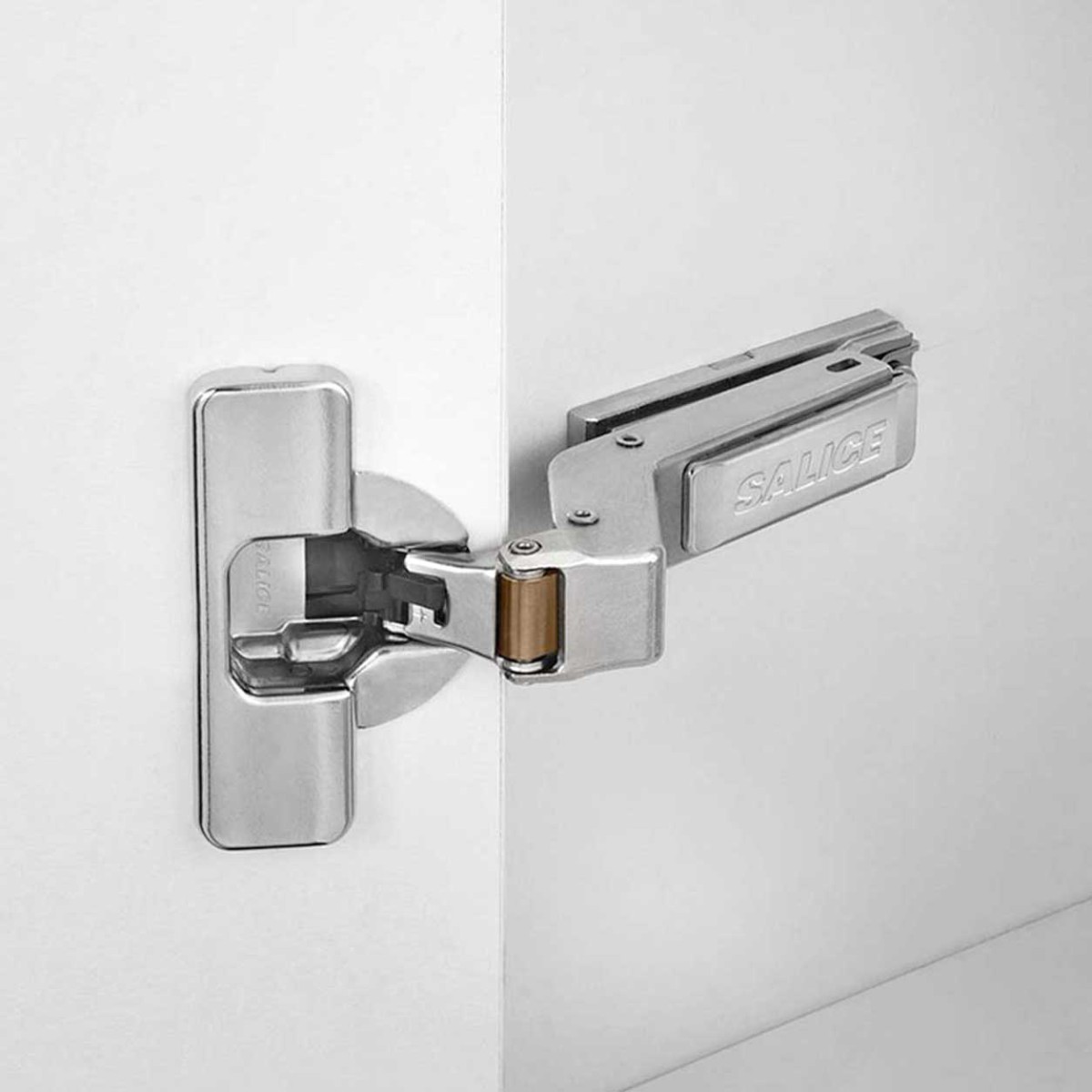

Salice Silentia+ 700 Series 45° Full Overlay Hinge with Inline Mount
Salice Silentia+ 700 Series 45° Full Overlay Hinge with Inline Mount

Salice Silentia+ 700 Series 45° Opening Hinge Nickel (Inline Mounting Plate Pack)

AED 29.75
Tax included

This 45° arm hinge ensures seamless full overlay compatibility with smooth, silent soft-close functionality. Durable and easy to install, it supports thick doors (min. 16 mm) and offers adjustable drilling for precise fitting—perfect for premium cabinetry.

This pack contains

You might also like



Silentia+ Series 700 - 45° Opening

Possible drilling distance on the door (K): from 3 to 6 mm.

Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

Cup Dimension: Ø 35mm *  13.5mm cup

Door Thickness: 16 - 26mm

Drilling Distance: 45mm

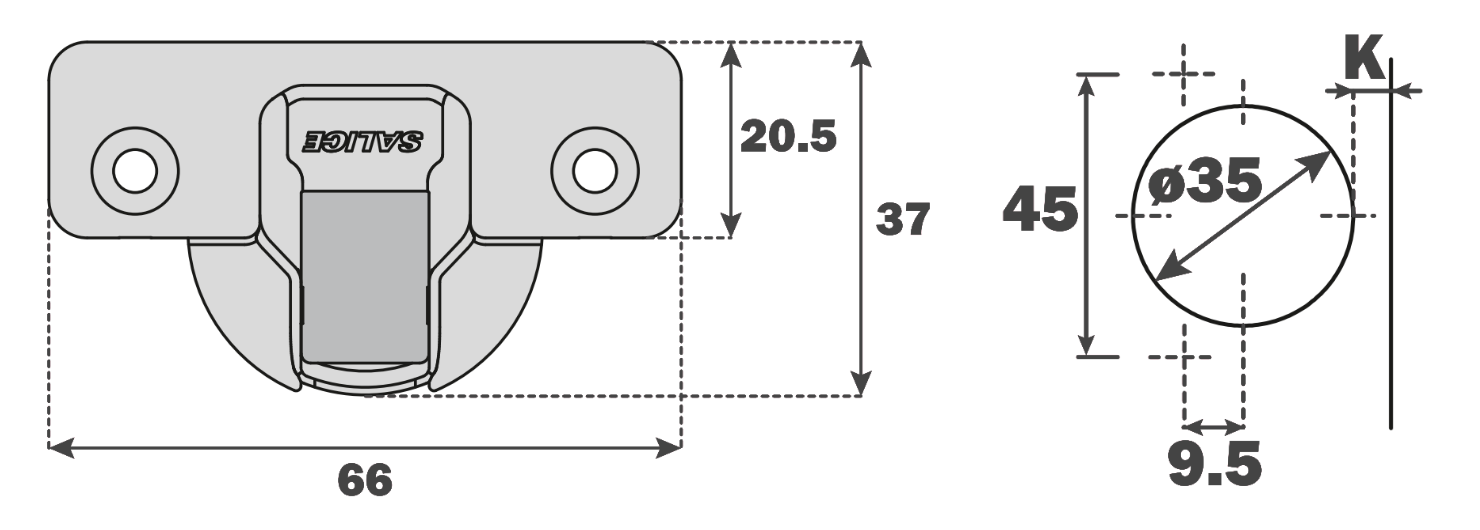

Hinge Cup Details

Hinge Cup Details

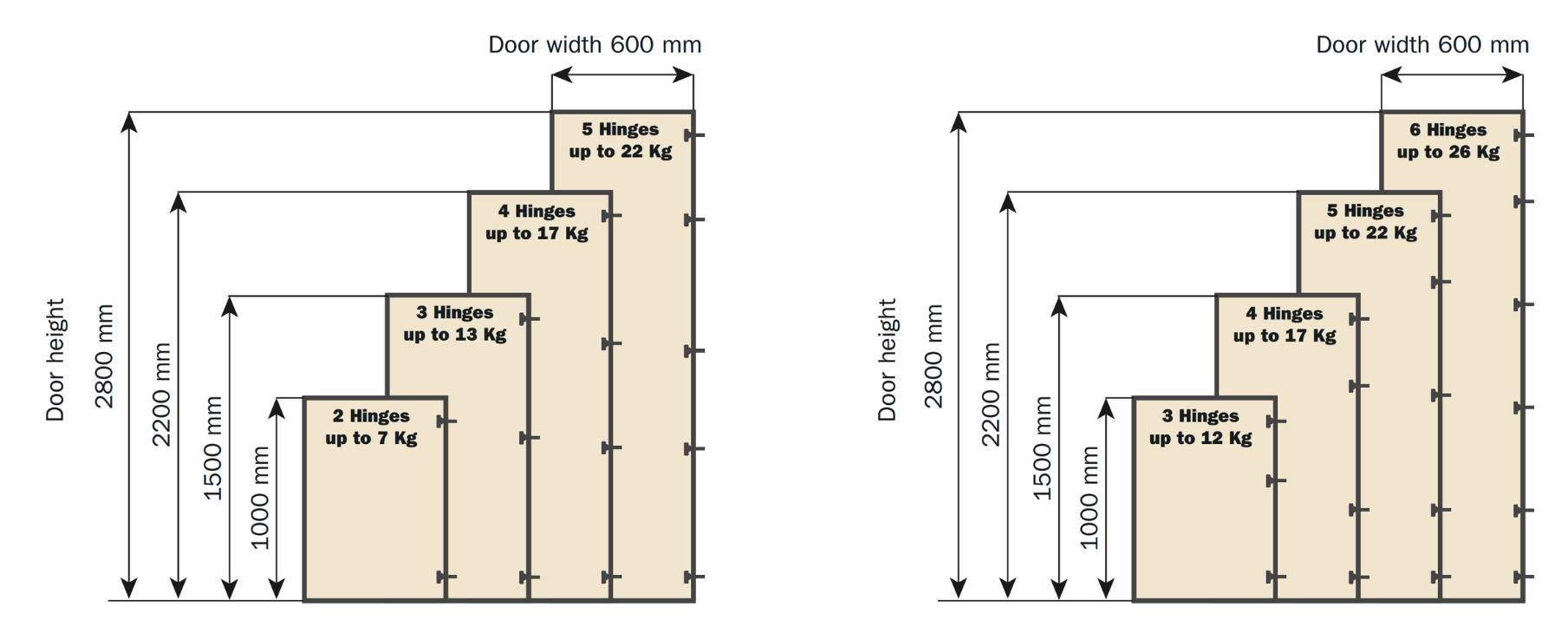

Number of hinges required to door dimension and weight

Number of hinges required to door dimension and weight

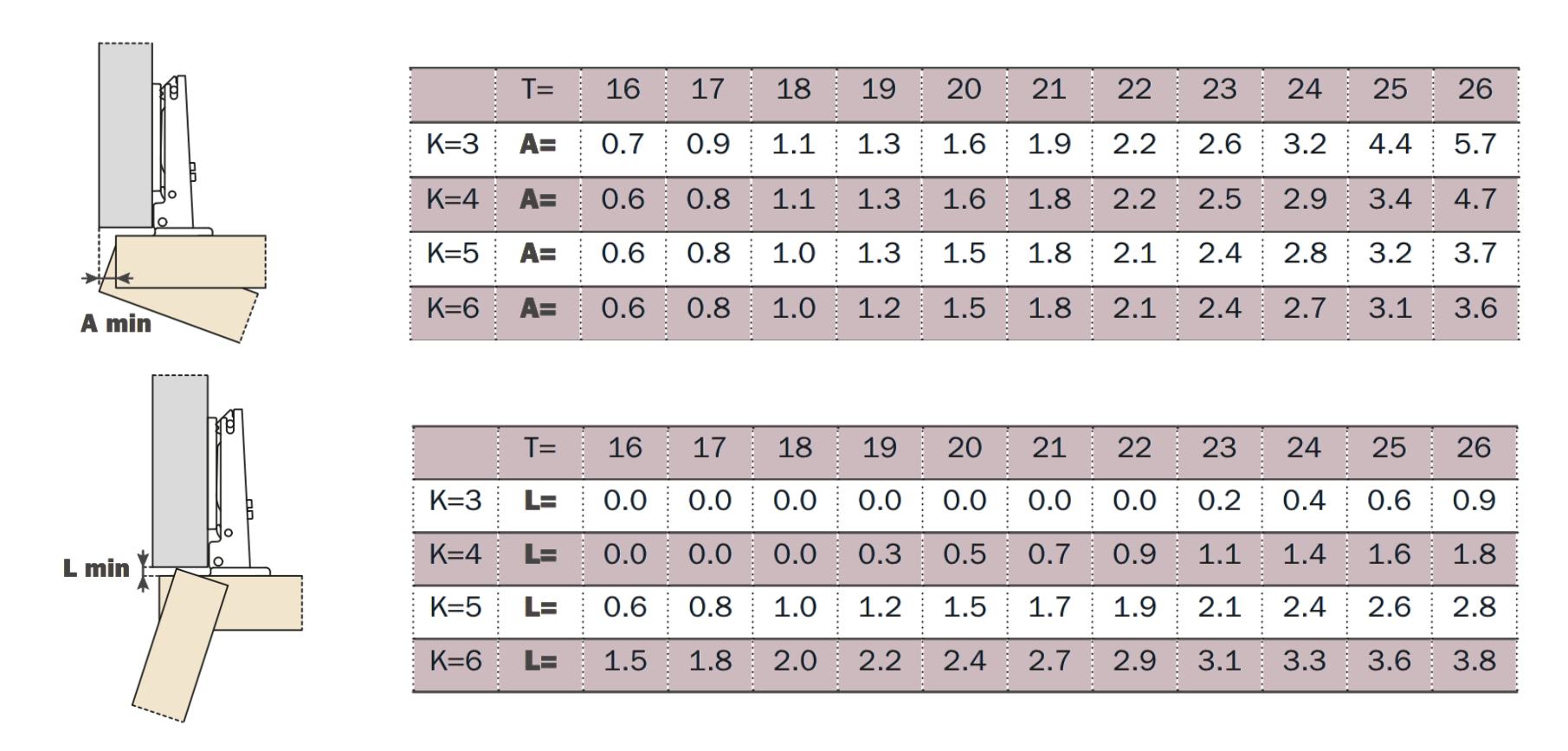

Space needed to open the door

Space needed to open the door

The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.

Series 700 Complementary Hinge

The solution of assembly problems where doors are mounted at a positive angle requires the verification of drilling distances by a practical trial. Please do not hesitate to consult our technical support department for assistance.

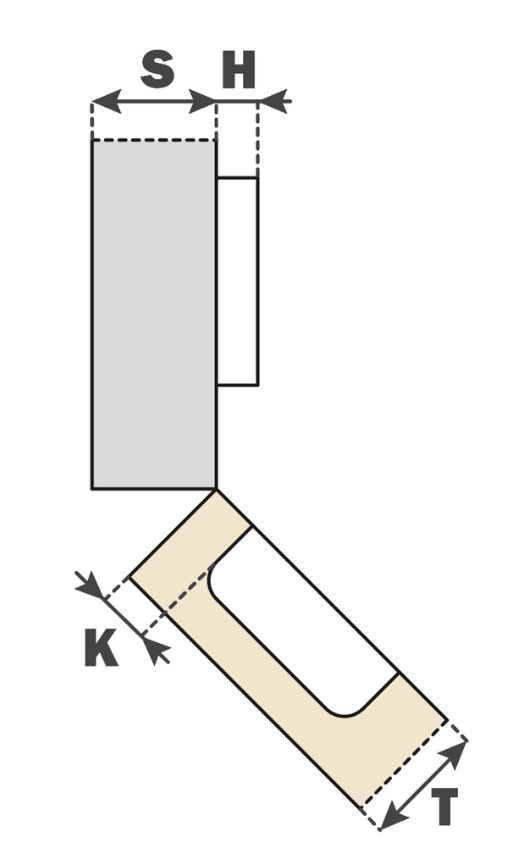

*Use this formula to determine the type of hinge, arm, the drilling distance “K” and the height of the mounting plate “H”, which is necessary to solve each application problem

Delivery
Delivery Time: 2-4 Working Days
Warranty
5 years warranty
Certification
ISO9001 Quality Management System Certficiation
C7P6ME9-I
99 Items

You might also like

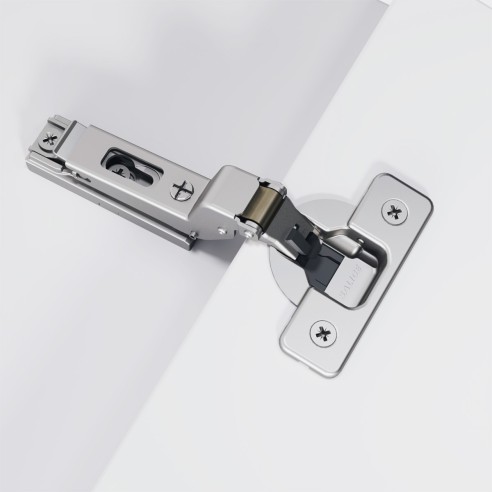

Salice Silentia+ 700 Series 45° Opening Hinge
