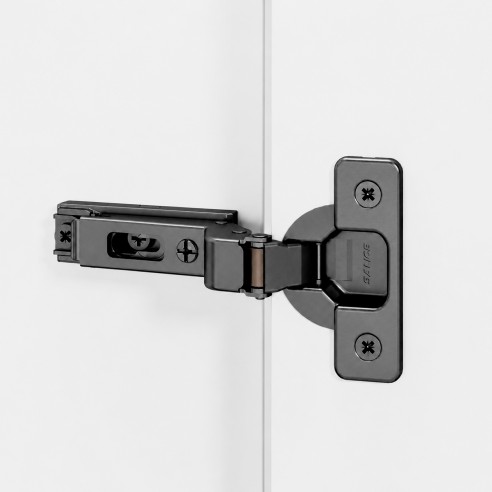

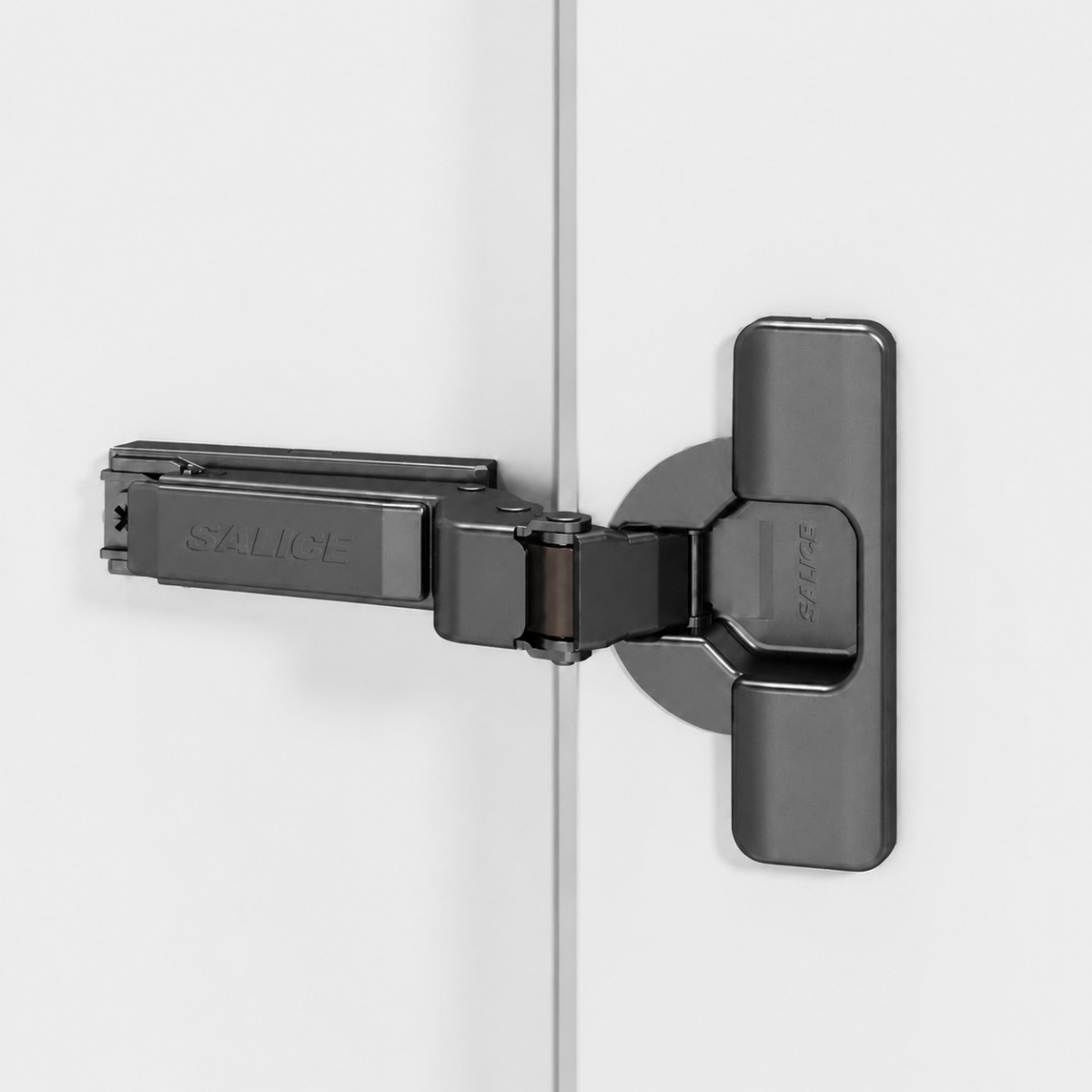

Salice Silentia+ Series 200 Push to Open - 94° Inset Overlay Titanium (Inline Mounting Plate Pack)
Salice Silentia+ Series 200 Push to Open - 94° Inset Overlay Titanium (Inline Mounting Plate Pack)

Salice Silentia+ Series 200 Push to Open - 94° Inset Overlay Titanium (Inline Mounting Plate Pack)

AED 21.75

Instead of AED 22.50

Tax included

Push-to-open hinge with an integrated spring mechanism for handle-less furniture applications, allowing doors to open with a simple push and creating a clean, minimalist appearance.

Note: For proper operation, this hinge must be used in combination with a DPM or DPA release device and a magnetic retaining catch. These components are sold separately.

Supplied as a complete set including hinge, flange cover, screw cover, and inline mounting plate. The inline mounting plate features 3D adjustment for precise door alignment.

This pack contains

You might also like



Silentia+ Series 200 Push Hinges

Push hinges are reverse-sprung so that the door self-opens when the release device is activated.

Possible drilling distance on the door (K): from 3 to 6 mm. Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates

Cup Dimension: Ø 35mm *  11 mm cup

Door Thickness: 19 - 35 mm

Drilling Distance: 45mm

Opening Angle: 94°

Hinge Cup Details

Hinge Cup Details

Number Of Hinges Required To Door Dimension And Weight

Number of hinges required to door dimension and weight

Space Needed To Open The Door

Space Needed To Open The Door
Space Needed To Open The Door
Space Needed To Open The Door

The above values are calculated on the assumption that the doors have square edges.

They are reduced if the doors have radiused edges.

Hinge Overlays

Hinge Overlays
Delivery
Delivery Time: 1-2 Working Days
Warranty
5 Years Warranty
Hinge Type
Inset Push-to-Open Hinge
Mechanism
Push-to-Open with Integrated Push Mechanism in Hinge Cup
Opening Angle
94°
Material
High-Quality Steel
Finish
Titanium
Certification
TÜV Rheinland Certified
Adjustment
Height, Side, and Depth Adjustable (±2 mm depth, ±1.5 mm side)
Mounting Type
Inline
Compatibility
Inset Doors
Cup Diameter
Ø 35 mm
Cup Depth
11.5 mm
Drilling Pattern
37x32 mm standard for cabinet sides
Drilling Distance
Adjustable from 3 mm to 6 mm
Door Thickness
Minimum Thickness of 16 mm
C2PVP66-T36
999 Items
