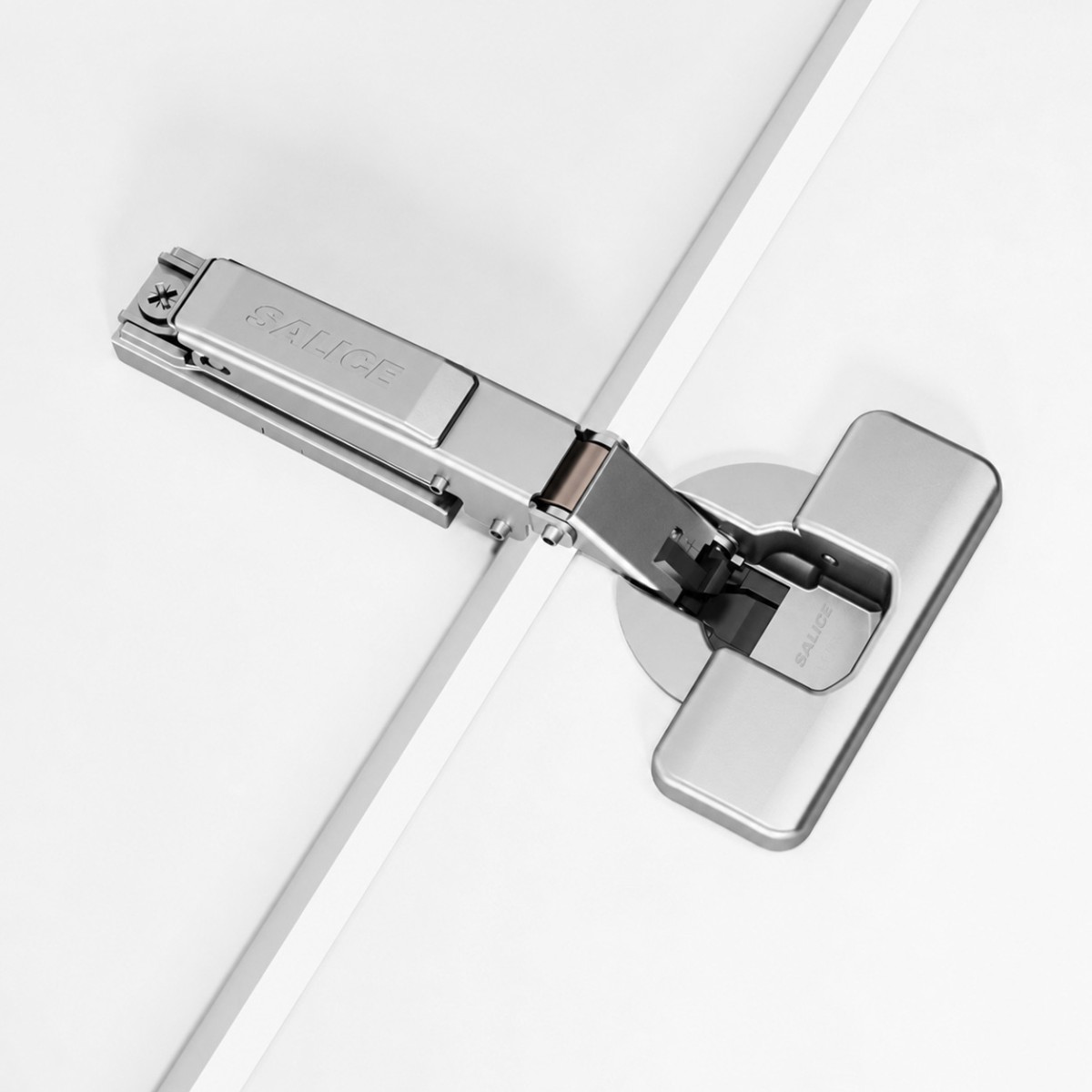

Soft-close hinge designed for thicker wooden doors from 20–40 mm. Features integrated Silentia+ damping technology for smooth, controlled, and silent closing, making it suitable for heavier or thicker furniture door applications.
Supplied as a complete set including hinge, flange cover, screw cover, and inline mounting plate. The inline mounting plate features 3D adjustment for precise door alignment.
You might also like
Possible drilling distance on the door (K): from 3 to 14 mm.
Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Cup Dimension: Ø40 mm * 15.5 mm cup
Door Thickness: 20 - 40 mm
Drilling Distance: 52 mm
Opening Angle: 94°
The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.
Projection of the door from the cabinet side at the max. opening. The figures are based on a straight arm hinge, H=0 mm thickness of mounting plate and K value = 3 mm
Determines the maximum allowable moulded door thickness for unobstructed opening, considering the L, K, and T dimensions.
Use these formulas to determine the type of hinge arm, the drilling distance “K” and the height of the mounting plate “H” which is necessary to solve each application problem.
