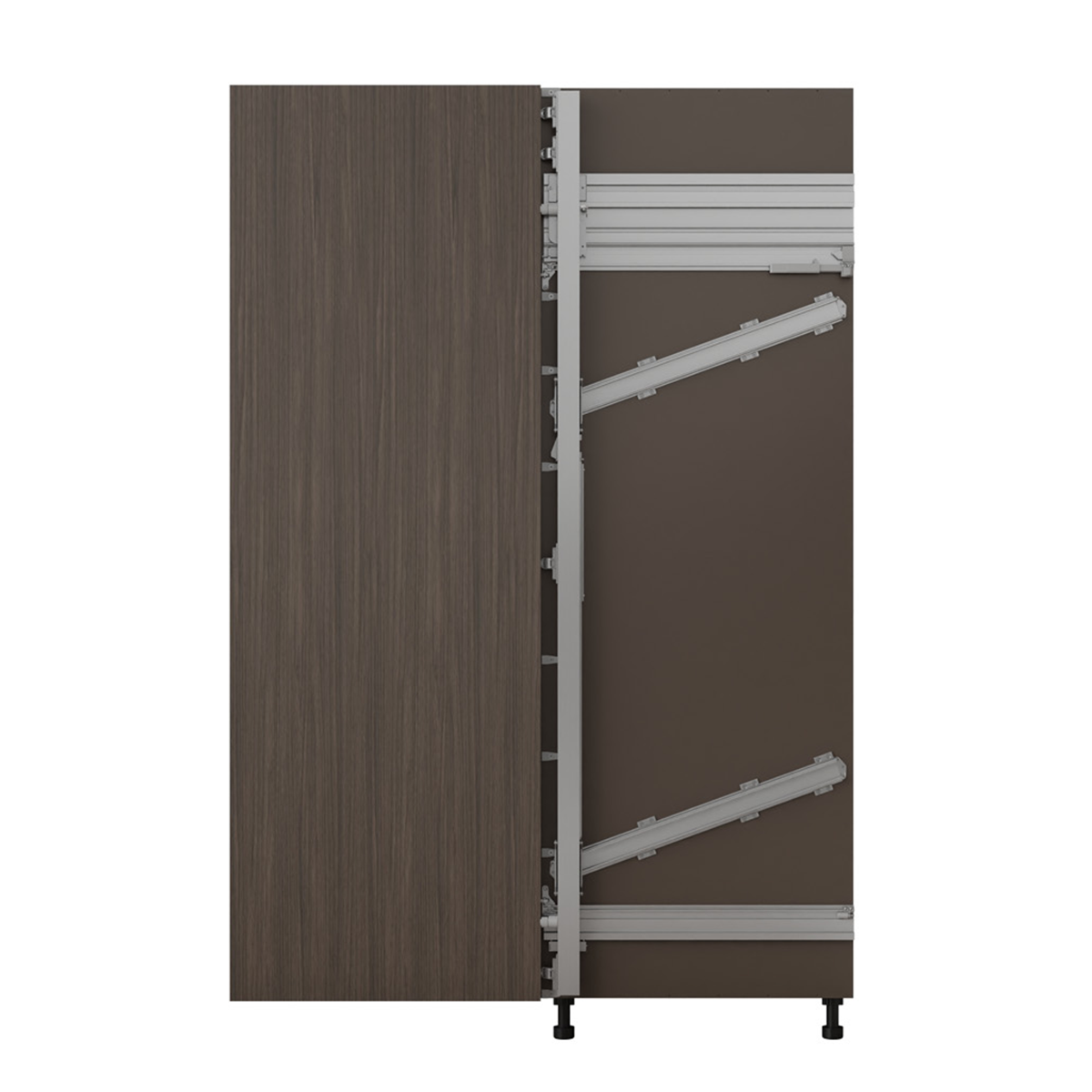

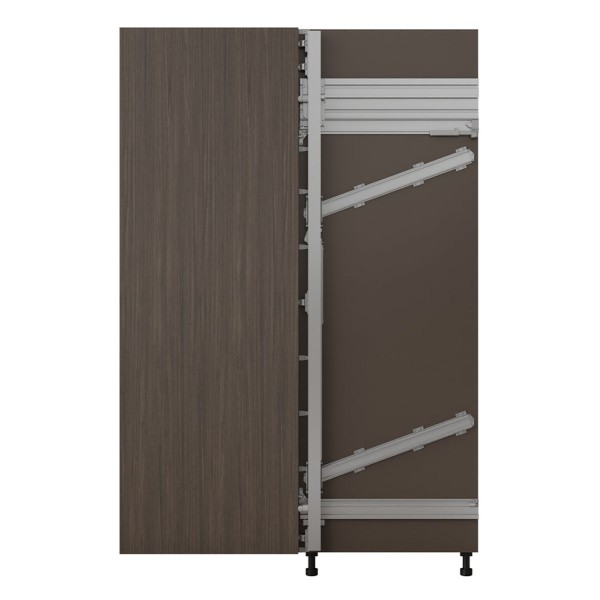

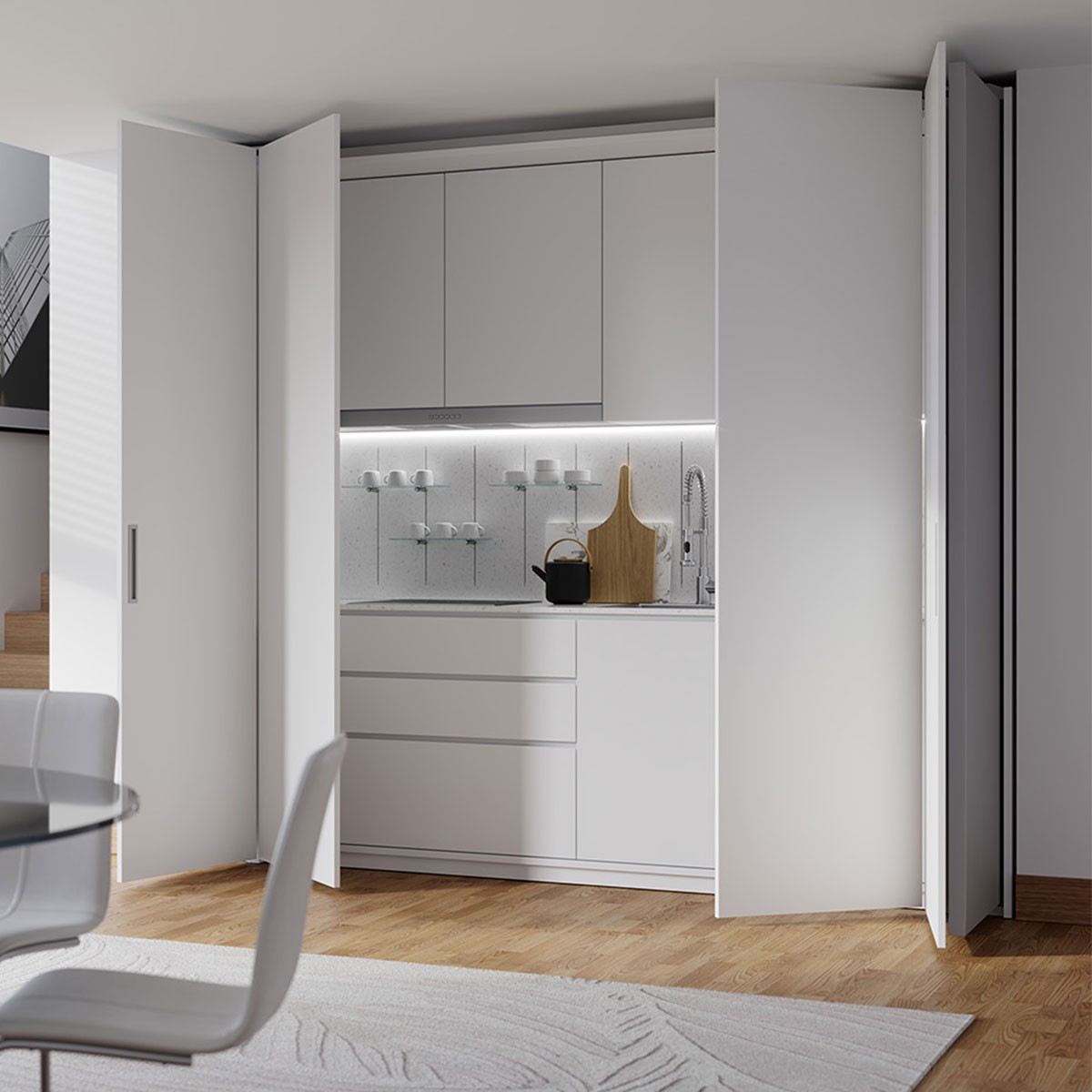

A pocket door system that allows cabinet doors to fully retract into the compartment for a clean and space-saving design. It features smooth, assisted sliding movement with a concealed mechanism in a slim 55mm housing, enabling easy installation and adjustment without dismantling the cabinet. Doors open independently from within the cabinet with assisted motion, activated by a light touch.
Kit:
You might also like
Pocket doors open independently from within the cabinet with assisted motion, activated by a light touch
Door Height: 1601 to 3000 mm
Door Width: 300 to 900 mm
Door Thickness: 14 to 30 mm
Weight Capacity: up to 40 kg
Mechanism Housing: 55 mm gap requirement
Smove: For soft - closing doors with handles
Push: Push to open hinges for handle-less doors

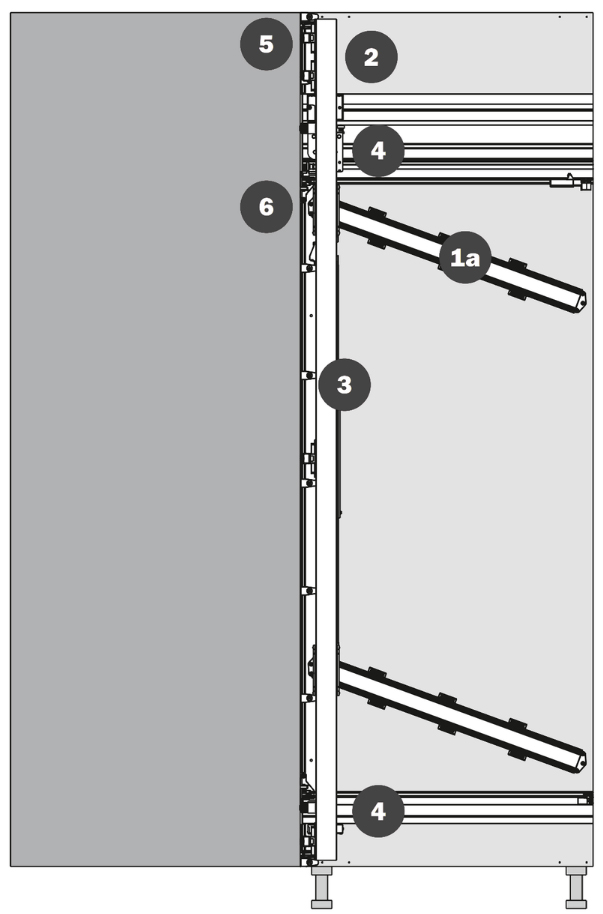

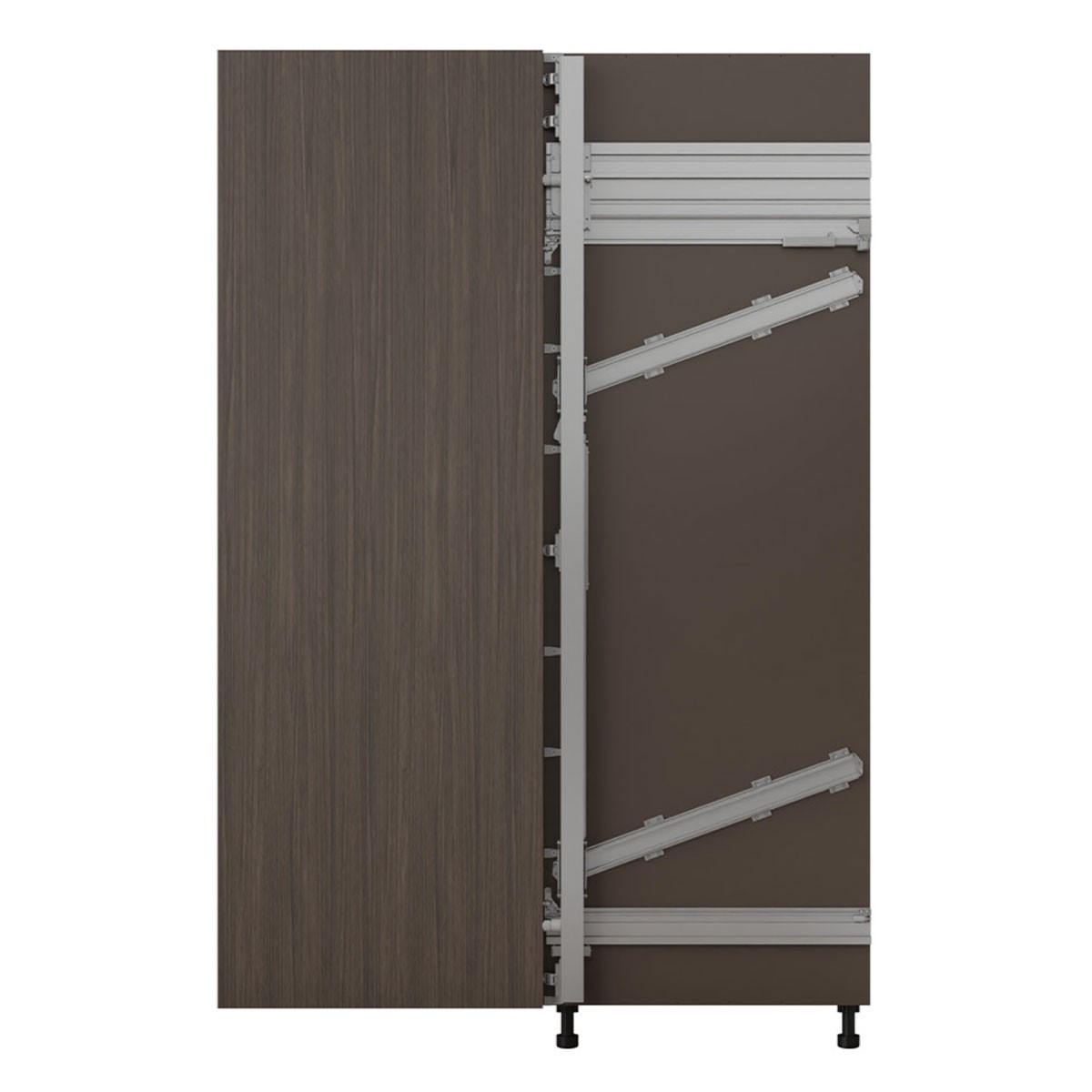

1a - automatic door extraction movement with counterweight
4 - Sliding carriage profiles
2 - Magnetic buffer for soft insertion
5 - Quick coupling hinges
3 - Load-bearing door profile
6 - All door adjustments are
accessible from the front.

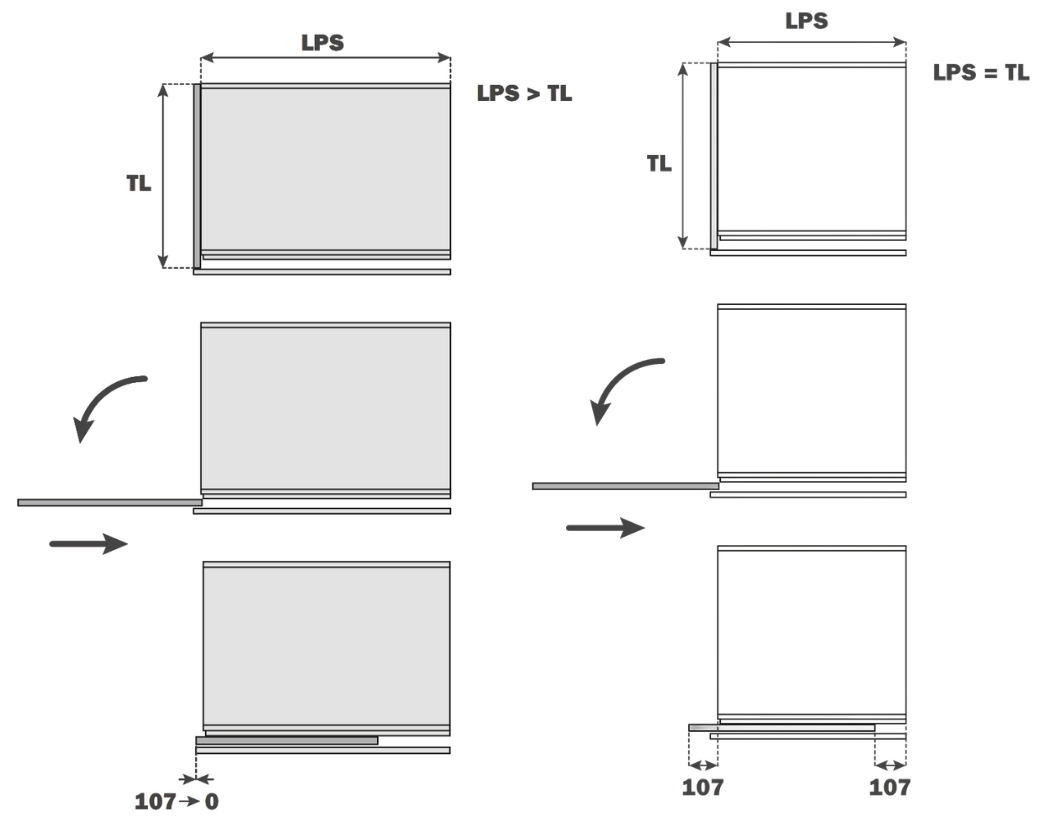

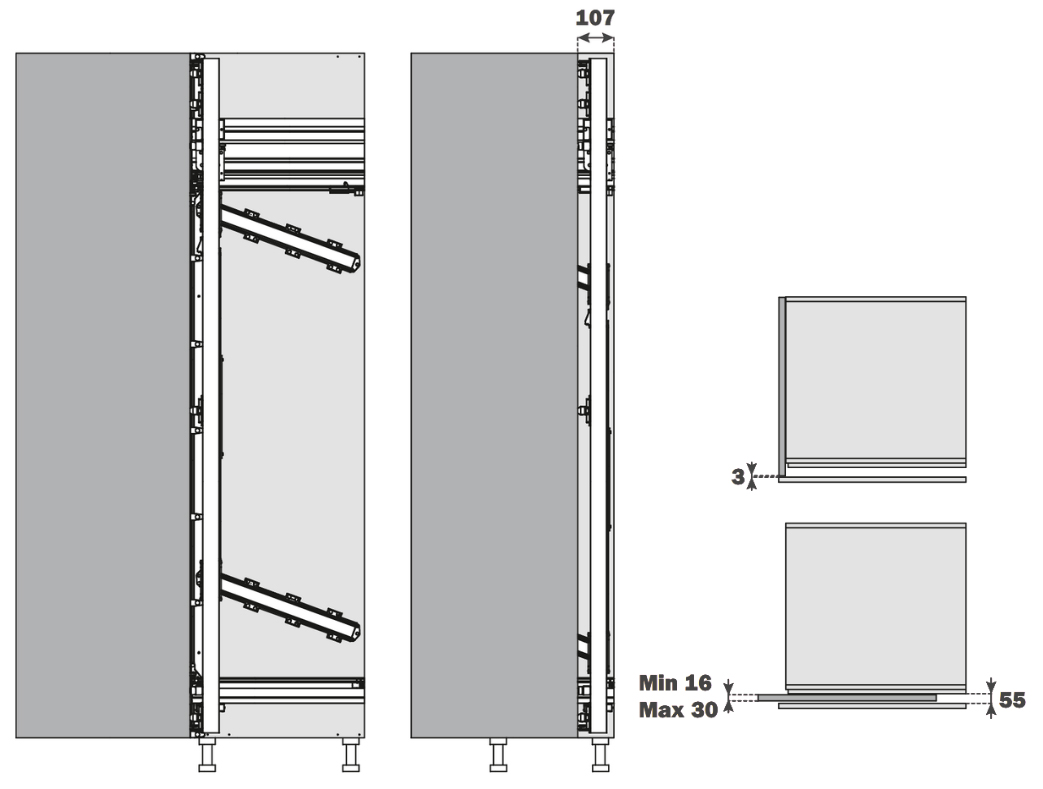

LPS: Total external depth of the cabinet
TL: Door width
