Salice Push DPM Release Device
Salice Push DPM Release Device

Salice Push DPM Release Device

AED 16.25
Tax included

Sleek and efficient, the DPM magnetic release device enhances door functionality with its Ø 10 mm diameter and 40 mm length. It operates seamlessly at the pressure point and along the opening edge, ensuring optimal magnetic holding strength and performance.

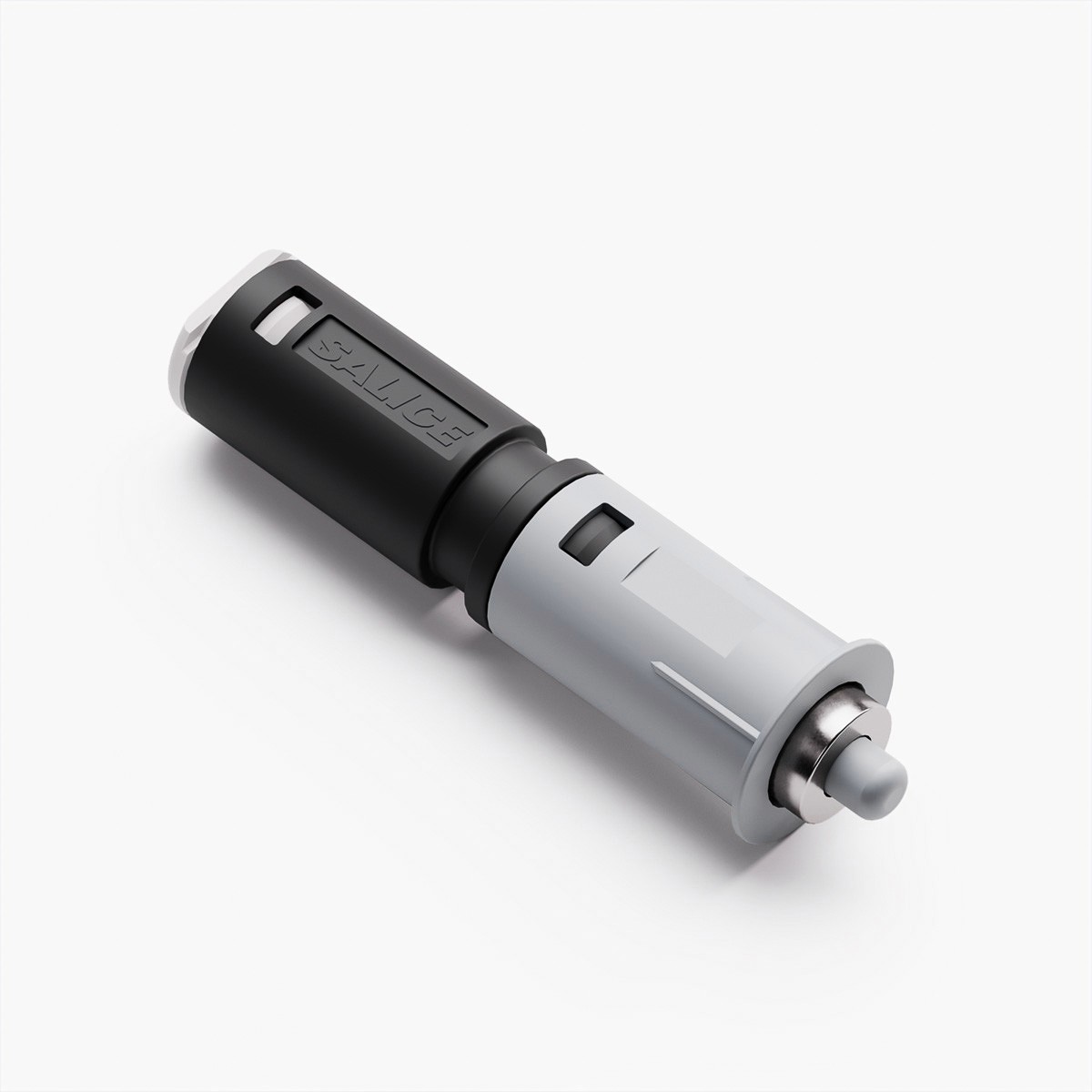

Salice Push DPM Release Device

DPM Release Device

Active release device with light-touch actuation for Salice Push-to-Open hinge systems. Designed to release the magnetic retaining catch, allowing the integrated Push hinge to open the door.

Dimension: Ø 10 mm, 40 mm length

Application Of The Release Device To Be Recessed

Hinge Cup Details

Drill a hole Ø 10 mm and min. 40 mm depth in the top, the side or the base panel of the cabinet. Insert the release device into the hole.

Delivery
Delivery Time: 1-2 Working Days
Warranty
5 Years Warranty
Certification
TÜV Rheinland Certified
