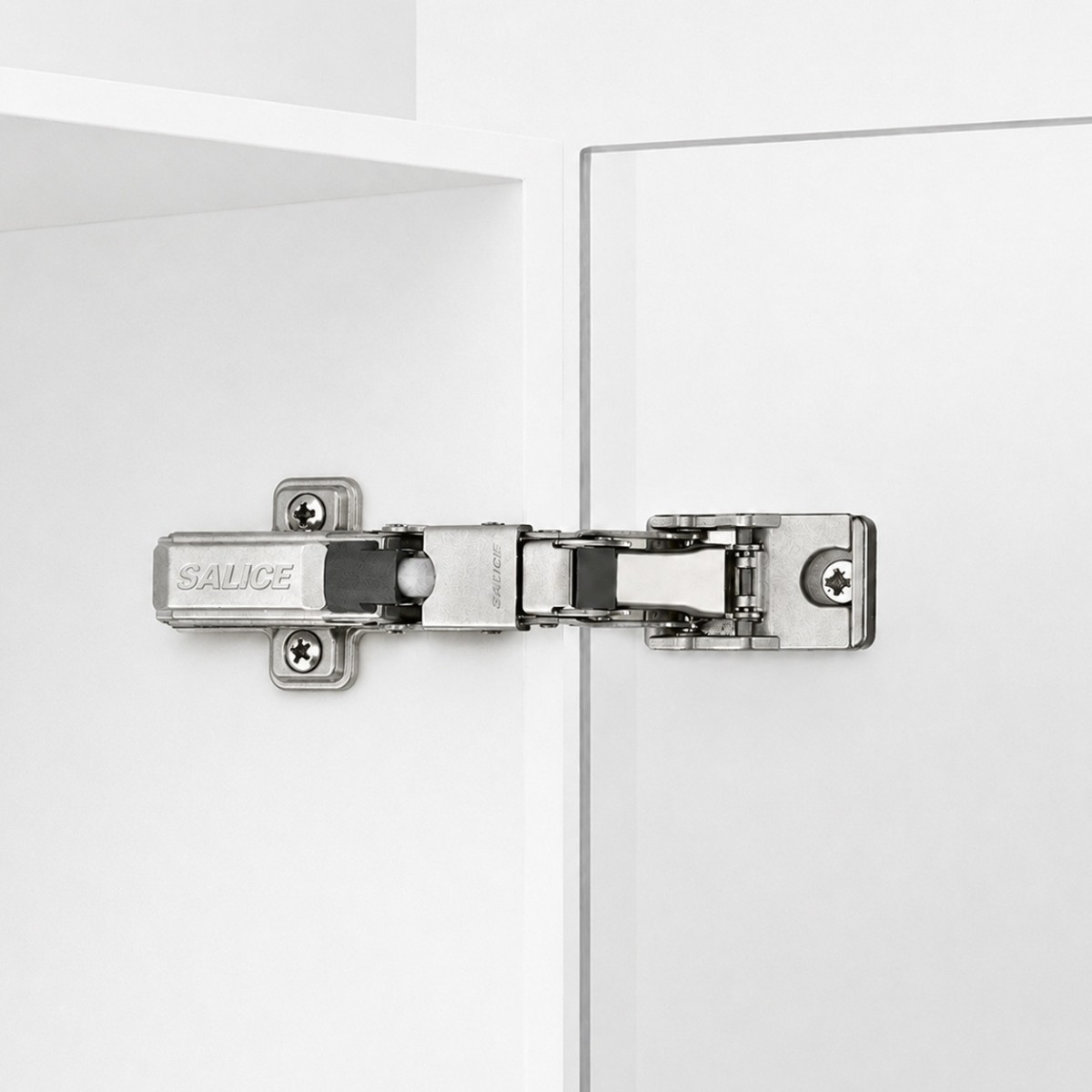

Universal Hinge Glass Door (Cruciform Mounting Plate Pack)
Universal Hinge Glass Door (Cruciform Mounting Plate Pack)

Salice Universal Hinge Glass Door (Cruciform Mounting Plate Pack)

AED 44.75

Instead of AED 45.25

Tax included

Universal hinge for glass doors and mirrors, designed for adhesive fixing with no glass drilling required. Provides a 110° opening with adjustable inset positioning and compatibility with standard mounting plates. Features a seven-pivot movement, enabling use in special applications and overlays, including half-inset doors

Supplied as a complete set including hinge and cruciform mounting plate.

This pack contains

You might also like



Universal Hinges - Glass Door

Salice Universal (CBG) hinges have been developed for use on glass doors and mirrors.

Certified by LGA in conformity with the 15570/08.08 level 3 requirement.

No drilling of the glass is required
Possible fixing inset distance on the door (K): from 0 to 22 mm.

Opening Angle: 110°
Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

Disclaimer

Projectworks will accept no responsibility for any problems associated with the type of adhesive or method of application when used in conjunction with Universal hinges, nor for any consequences of the incorrect mounting of the door. It is recommended that the selected adhesive is subjected to prior testing.

The adhesive may be considered appropriate if the plate, when fixed to the glass, can sustain a minimum torsion load of 160 Nm.

Number Of Hinges Required To Door Dimension And Weight

Number of hinges required to door dimension and weight

Technical Guide

Technical Guide

I. The hinge plate must be attached to the glass door with a specific adhesive using the correct procedure. We recommend that this operation is carried out by a specialist company. For further information on adhesives and their application, please contact the adhesive manufacturer or your glass supplier.

II. Locate the hinge onto the plate when it is bonded to the door.

III. Rotate the fixing cam.

Door Application

Door Application
Delivery
Delivery Time: 1-2 Working Days
Warranty
5 Years Warranty
Finish
Nickel
Certification
TÜV Rheinland Certified
CBG2AE9-BAV3M39F
999 Items
