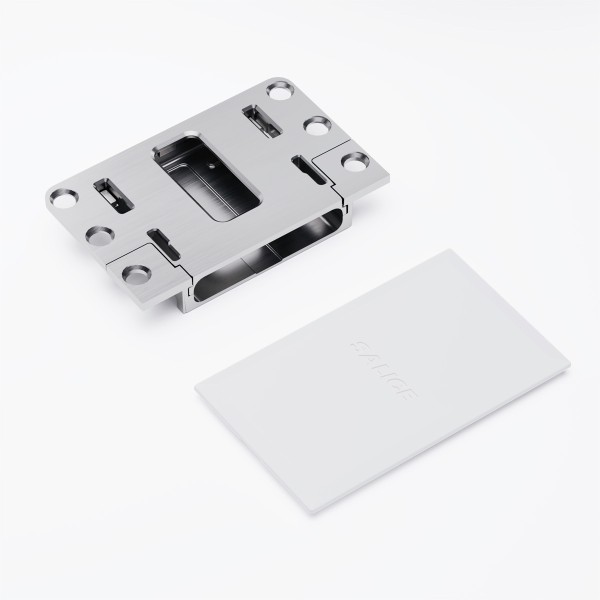

Salice Conecta Nickel Plated Holder

Category: Concealed Hinge for Wooden and Aluminium-Framed Doors

Material: Steel (Zinc Alloy, Nickel-plated)

Finish Options: Nickel-plated, Titanium

Design: Completely hidden inside the door and the side of the cabinet for a concealed, sleek look

Mounting Position: Recessed insertion in both the door and the side panel

Opening Angle: 94°

Integrated Feature: Available with an integrated soft-close mechanism for smooth, decelerated, and silent closing

Adjustments:

• Sideways Adjustment: -1 mm to +2 mm

• Height Adjustment: -2.5 mm to +2.5 mm

• Depth Adjustment: 0 mm to +3 mm

Cup Diameter: Ø 35 mm

Drilling Distance: Fixed at 10 mm from the edge of the door to the centre of the hole

Door Thickness Compatibility:

• 22 mm and 25 mm thick doors, wood or aluminium-framed

Side Panel Thickness Compatibility: From 16 mm

L Dimension: 3.5 mm

Application Areas: Suitable for various rooms including bedrooms, living rooms, kitchens, and bathrooms.

Aesthetic Features:

• Customisable cover caps for both the door and side panel

• Elegant design elements for a refined, sophisticated appearance

Usage: Ideal for large and heavy wooden and aluminium-framed doors
