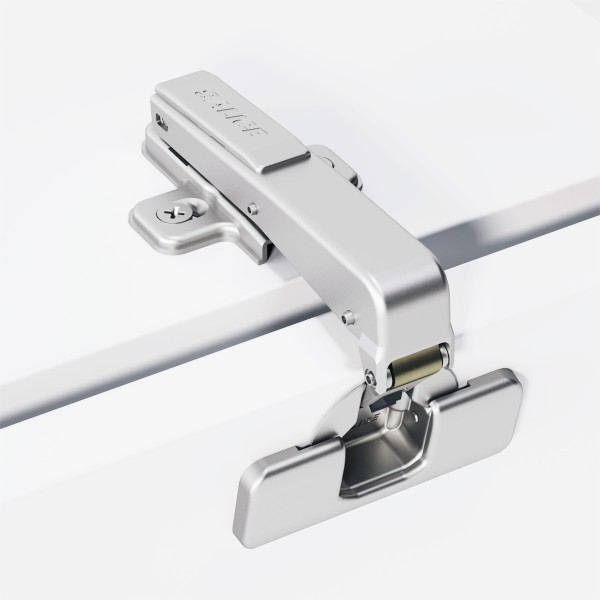

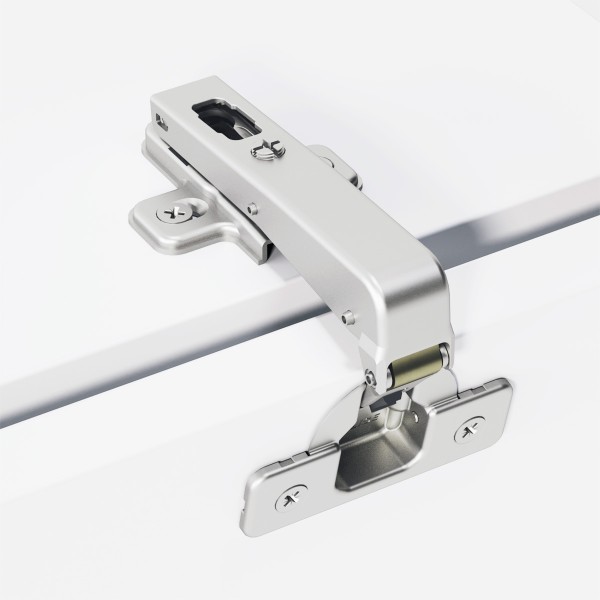

Salice Silentia+ 700 Series 110° Full Overlay Crampon Hinge with Wing Mount
Salice Silentia+ 700 Series 110° Full Overlay...
Salice Silentia+ 700 Series 110° Full Overlay Crampon Hinge with Wing Mount
Salice Silentia+ 700 Series 110° Full Overlay Crampon Hinge with Wing Mount

Salice Silentia+ 700 Series 110° Full Overlay Crampon Hinge with Wing Mount

AED 28.56
Tax included

Designed for  37x32 mm standard drilling on cabinet sides, with a Ø 35 mm cup and 13.5 mm depth for a secure fit. Compatible with minimum 16 mm thick doors, ensuring stability and durability. The 110° opening angle allows smooth, efficient access for modern cabinetry.

This pack contains

You might also like



Silentia+ 700 Series 110° Crampon Hinge - Technical Details

Category: Full Overlay Crampon Hinge
Material: Steel
Finish: Nickel Plated
Cup Diameter: Ø 35 mm
Cup Depth: 12 mm
Opening Angle: 110°
Closing Mechanism: Soft Closing with Silicone Dampers
Overlay Type: Full Overlay
Min. Door Thickness: Minimum thickness of 16 mm
Drilling Distance: Adjustable from 3 mm to 6 mm
Mounting Type: Inline or Wing type Mount
Installation Compatibility: Cabinet sides with 37x32 mm standard drilling
Adjustability: Deceleration effect adjustable via switch

Hinge Cup Fixing: Crampon

Usage: Ideal for cabinets, thick doors, etc.

Ovelay Technical Drawing

E minimum:

  • 61 mm for Series 200 mounting plates.
  • 70 mm for Domi snap-on mounting plates.
  • 74 mm for Domi snap-on mounting plates with back cam.

Approx. number of hinges required according to the door dimension and weight

Constant “L” value of 1.3 mm (it does not change during side adjustments)

Hinges Chart

Adjustment Features

  • Compensated side adjustment from -1.5 mm to +4.5 mm
  • Height adjustment ±2 mm
  • Depth adjustment with Series 200 mounting plates +2.8 mm
  • Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm
  • Anti-sliding safety stop

Applicable Mounting Plates

  • Symmetrical and asymmetrical bright nickel-plated steel or die-cast Series 200 mounting plates.
  • Snap-on assembly on Domi mounting plates.
  • Positioning with a pre-determined stop on traditional Series 200 mounting plates.
Delivery
Delivery Time: 2-4 Working Days
Warranty
5 years warranty
Certification
ISO9001 Quality Management System Certficiation
