Salice Push Series 200 94° Full Overlay Push to Open Hinge with Inline Mount
Salice Push Series 200 94° Full Overlay Push to Open Hinge with Inline Mount

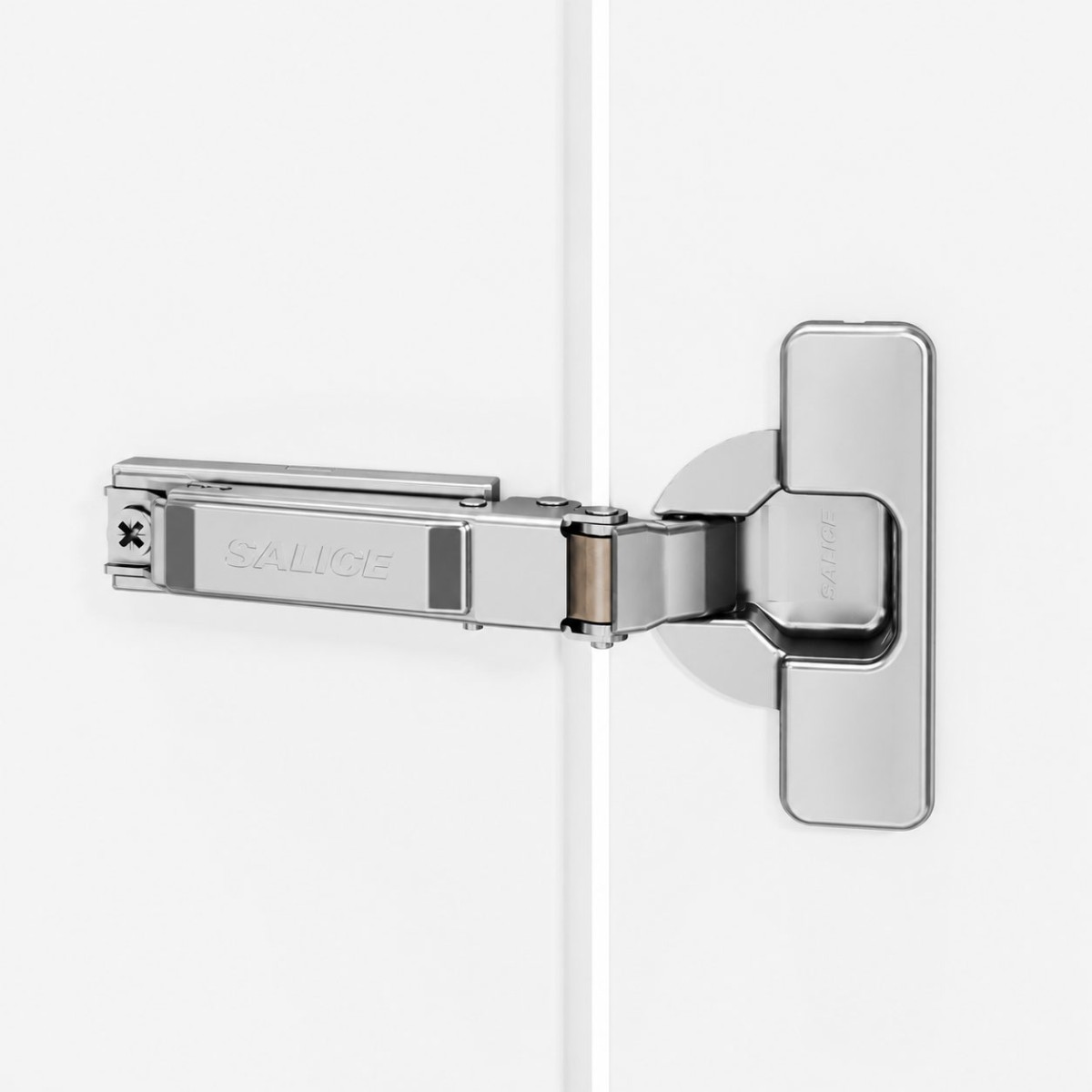

Salice Silentia+ Series 200 Push to Open - 94° Full Overlay Nickel (Inline Mounting Plate Pack)

AED 17.25

Instead of AED 18.25

Tax included

Push-to-open hinge with an integrated spring mechanism for handle-less furniture applications, allowing doors to open with a simple push and creating a clean, minimalist appearance.

Note: For proper operation, this hinge must be used in combination with a DPM or DPA release device and a magnetic retaining catch. These components are sold separately.

Supplied as a complete set including hinge, flange cover, screw cover, and inline mounting plate. The inline mounting plate features 3D adjustment for precise door alignment.

This pack contains

You might also like



Silentia+ Series 200 Push Hinges

Push hinges are reverse-sprung so that the door self-opens when the release device is activated.

Possible drilling distance on the door (K): from 3 to 6 mm. Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates

Cup Dimension: Ø 35mm *  11 mm cup

Door Thickness: 19 - 35 mm

Drilling Distance: 45mm

Opening Angle: 94°

Hinge Cup Details

Hinge Cup Details

Number Of Hinges Required To Door Dimension And Weight

Number of hinges required to door dimension and weight

Space Needed To Open The Door

Space Needed To Open The Door
Space Needed To Open The Door
Space Needed To Open The Door

The above values are calculated on the assumption that the doors have square edges.

They are reduced if the doors have radiused edges.

Hinge Overlays

Hinge Overlays
Delivery
Delivery Time: 1-2 Working Days
Warranty
5 Years Warranty
Hinge Type
Full Overlay Push-to-Open Hinge
Mechanism
Push-to-Open for Handle-less Doors
Opening Angle
94°
Material
High-Quality Steel
Finish
Nickel Plated
Certification
TÜV Rheinland Certified
Door Thickness
Minimum thickness of 16 mm
Adjustment
Height (+/- 2 mm), Depth (+/- 2.5 mm), Side (+/- 1.5 mm)
Cup Diameter
Ø 35 mm
Cup Depth
11.3 mm
Drilling Pattern
37x32 mm Standard for Cabinet Sides
Drilling Distance
Adjustable from 3 mm to 6 mm
Load Capacity
Supports doors up to 15 kg (33 lbs)
C2PVA99-N39
999 Items

You might also like

Salice Silentia+ Series 200 Push to Open - 94° Inset Overlay Titanium (Inline Mounting Plate Pack)
  • New
  • Pack
Hinges

Salice Silentia+ Series 200 Push to Open - 94° Full Overlay Titanium (Inline Mounting...

SALICE
C2PVA66-T36
AED 21.00
Push-to-open hinge with an integrated spring mechanism for handle-less furniture applications, allowing doors to open with a simple push and creating a clean, minimalist appearance. Note: For proper operation, this hinge must be used in combination with a DPM or DPA release device and a magnetic retaining catch. These components are sold separately....

Customers who bought this product also bought:

Salice Futura Push Clip-Fixed Full-Extension Push to Open Concealed Runners
Drawer Runner

Salice Futura Push Clip-Fixed Full-Extension Push to Open Concealed Runners

SALICE
AED 61.25
Smooth, quiet, and self-opening, the 300-550 mm full-extension runners feature a push-to-open mechanism. With a 294 N (30 kg) load capacity, anti-tipping safety, and adjustable height, side, and depth, they ensure perfect alignment. Finished in bright zinc plating, ideal for modern drawers.
Salice Push Synchronizer
Drawer Runner

Salice Push Synchronizer

SALICE
APKIGT51150
AED 38.50
A mechanism designed to enhance the push-to-open function of drawers, ensuring synchronized, smooth opening across wider drawers or double-sided units for a seamless and effortless user experience.
Salice Silentia+ 700 Series 110° Full Overlay Crampon Hinge
Hinges

Salice Silentia+ 700 Series 110° Crampon Hinge

SALICE
C7P6NE9AC
AED 23.00
Designed for  37x32 mm standard drilling on cabinet sides, with a Ø 35 mm cup and 13.5 mm depth for a secure fit. Compatible with minimum 16 mm thick doors, ensuring stability and durability. The 110° opening angle allows smooth, efficient access for modern cabinetry.
Salice Lapis Door Hinge Cover Satin Black
  • Pack
Hinges

Salice Lapis Series 110° Full Overlay Hinge Satin Black Cover with Inline Mount

SALICE
C716AE9_SB
AED 42.83
Equipped with an adjustable soft-close mechanism, powered by twin silicone oil dampers in the hinge cup, and a switch to fine-tune deceleration. Designed for doors at least 16 mm thick, they offer a 110° opening angle, a 13.5 mm deep cup, and an adjustable drilling distance of 3 to 6 mm. Waterproof covers ensure lasting durability.
Salice Futura Push Clip-Fixed Full-Extension Push to Open Concealed Runners
Drawer Runner

Salice Futura Push 1 Way Clip-Fixed Full-Extension Push to Open Concealed Runners

SALICE
AED 70.00
Smooth, quiet, and self-opening, the 300-550 mm full-extension runners feature a push-to-open mechanism. With a 294 N (30 kg) load capacity, anti-tipping safety, and adjustable height, side, and depth, they ensure perfect alignment. Finished in bright zinc plating, ideal for modern drawers.
Salice Conecta Nickel Plated Holder
Hinges

Salice Conecta Plated Holder

SALICE
DQG5BX9XS
AED 51.00
Designed for the Conecta Concealed Hinge, this Nickel-plated holder offers high-strength support and lasting durability. Its sleek, modern finish enhances cabinet aesthetics while ensuring a secure and reliable hinge connection for long-term performance.

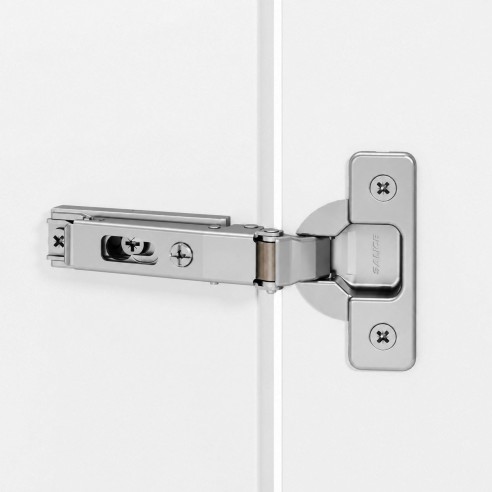

Silentia+ Series 200 Push to Open Full Nickel
