Soft-close hinge for wooden doors with twin silicone oil dampers integrated within the cup for smooth and controlled closing. The deceleration can be easily adjusted via a simple switch.

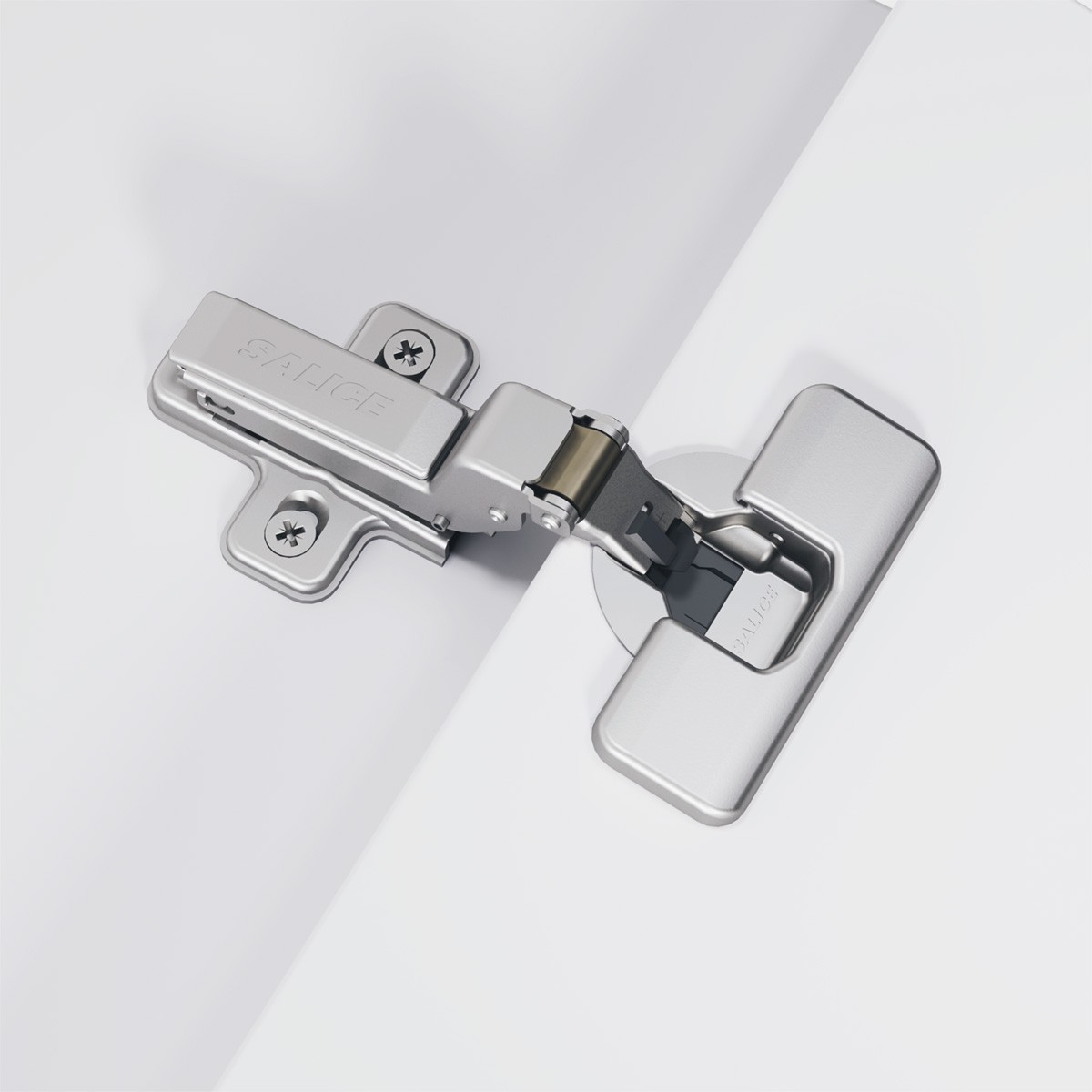

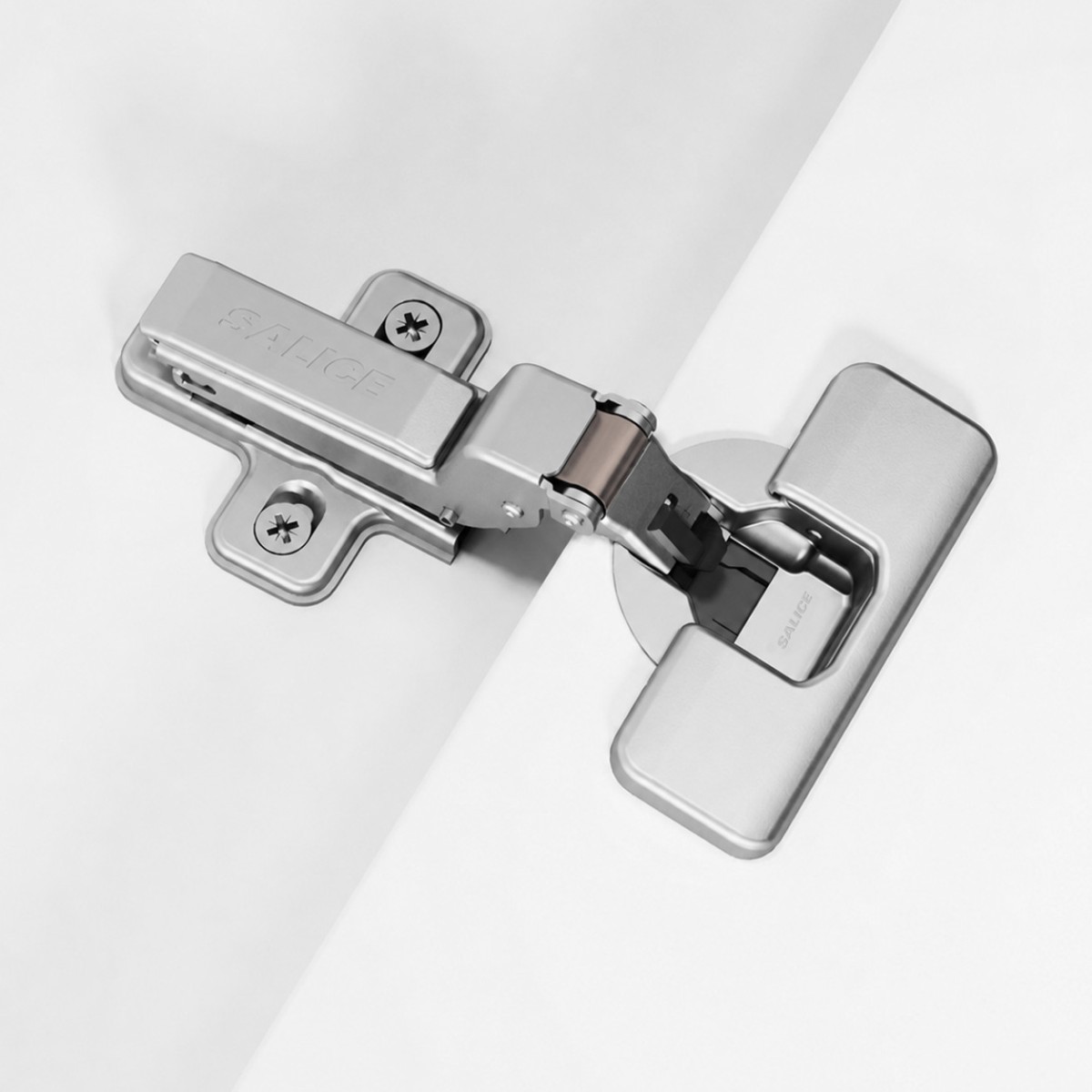

Supplied as a complete set including hinge, flange cover, screw cover, and cruciform mounting plate.
You might also like
Possible drilling distance on the door (K): from 3 to 6 mm.
Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
Cup Dimension: Ø 35mm * 13.5mm cup
Door Thickness: 16 - 26mm
Drilling Distance: 45mm
The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.

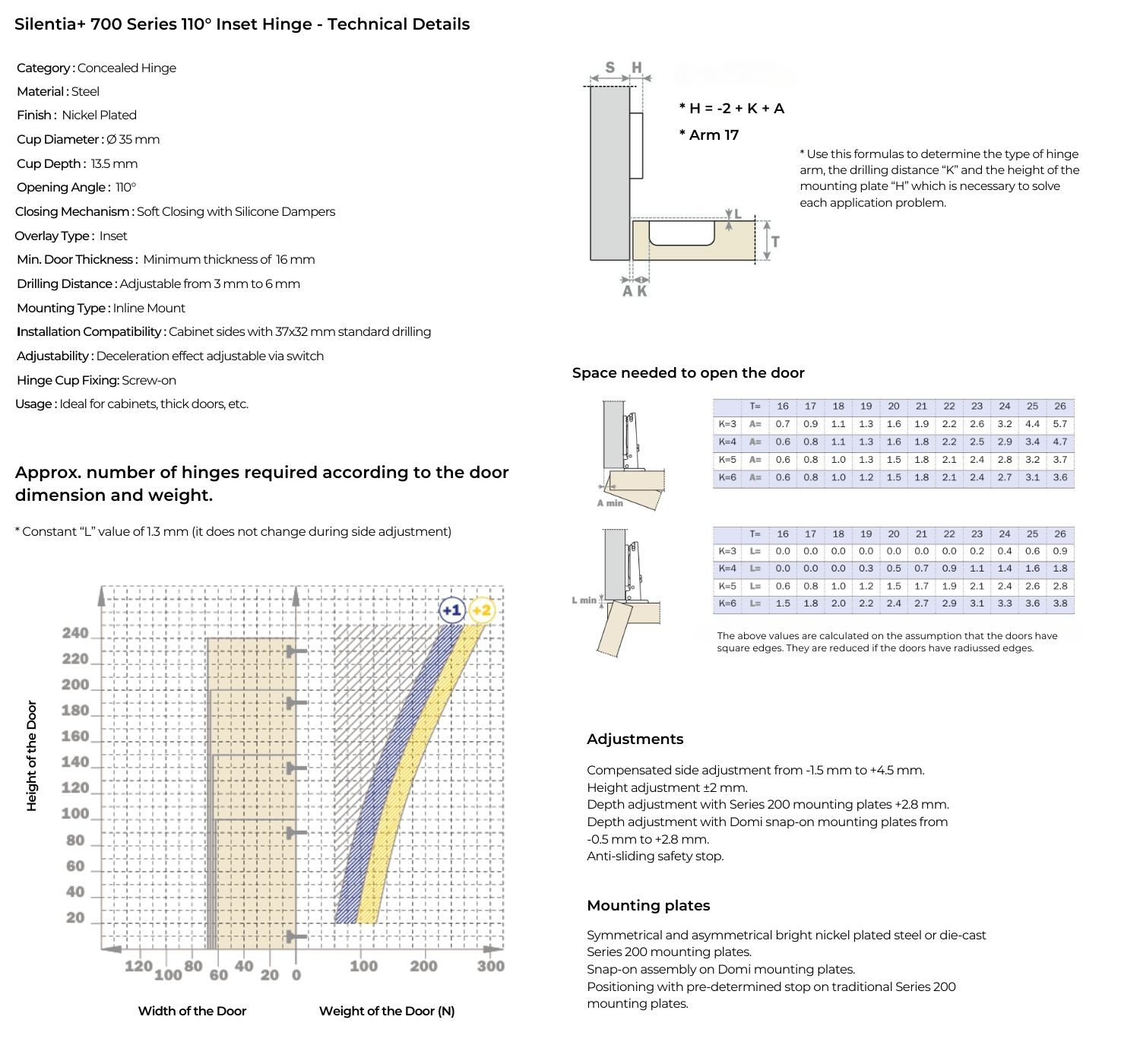

Use these formulas to determine the type of hinge arm, the drilling distance “K” and the height of the mounting plate “H” which is necessary to solve each application problem.
