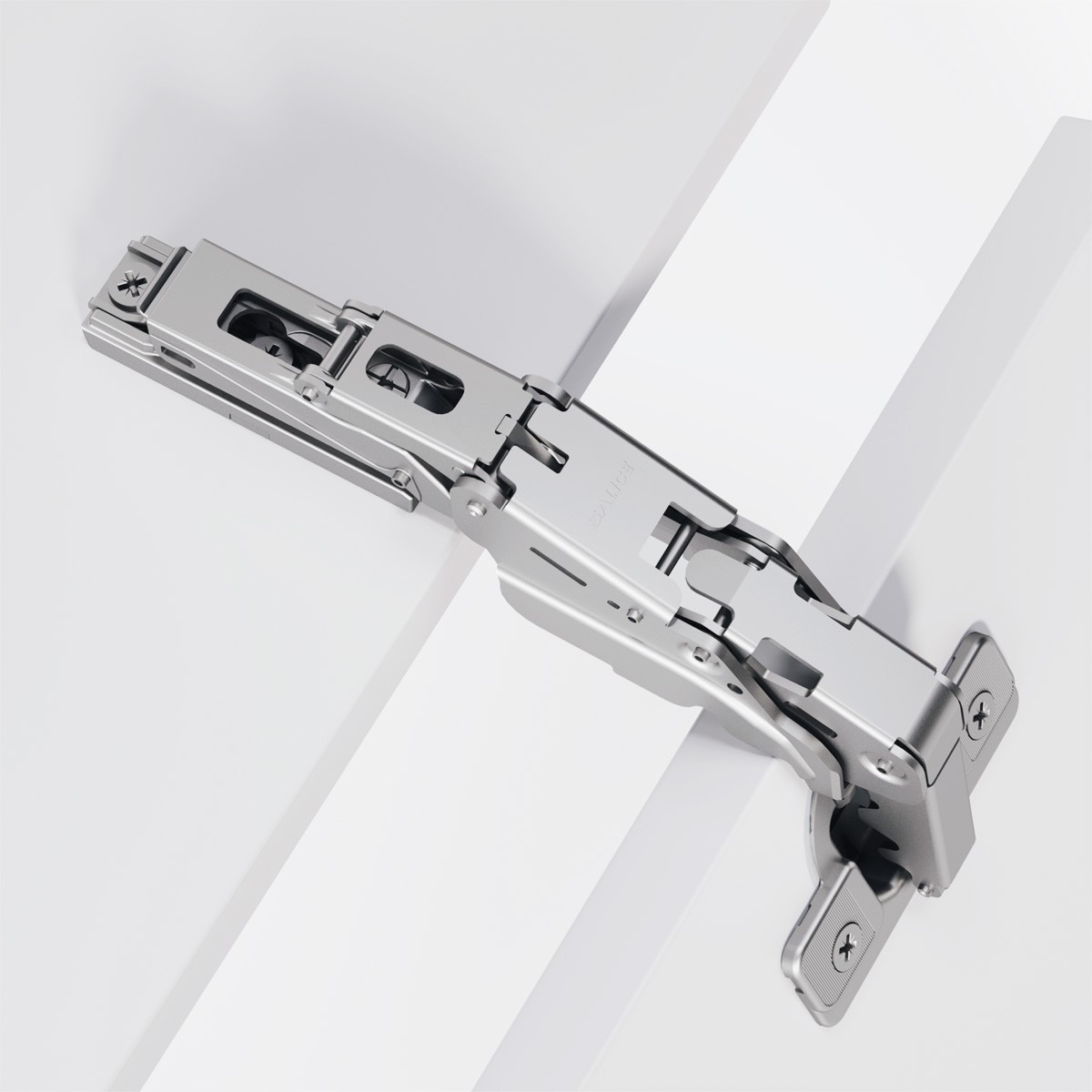

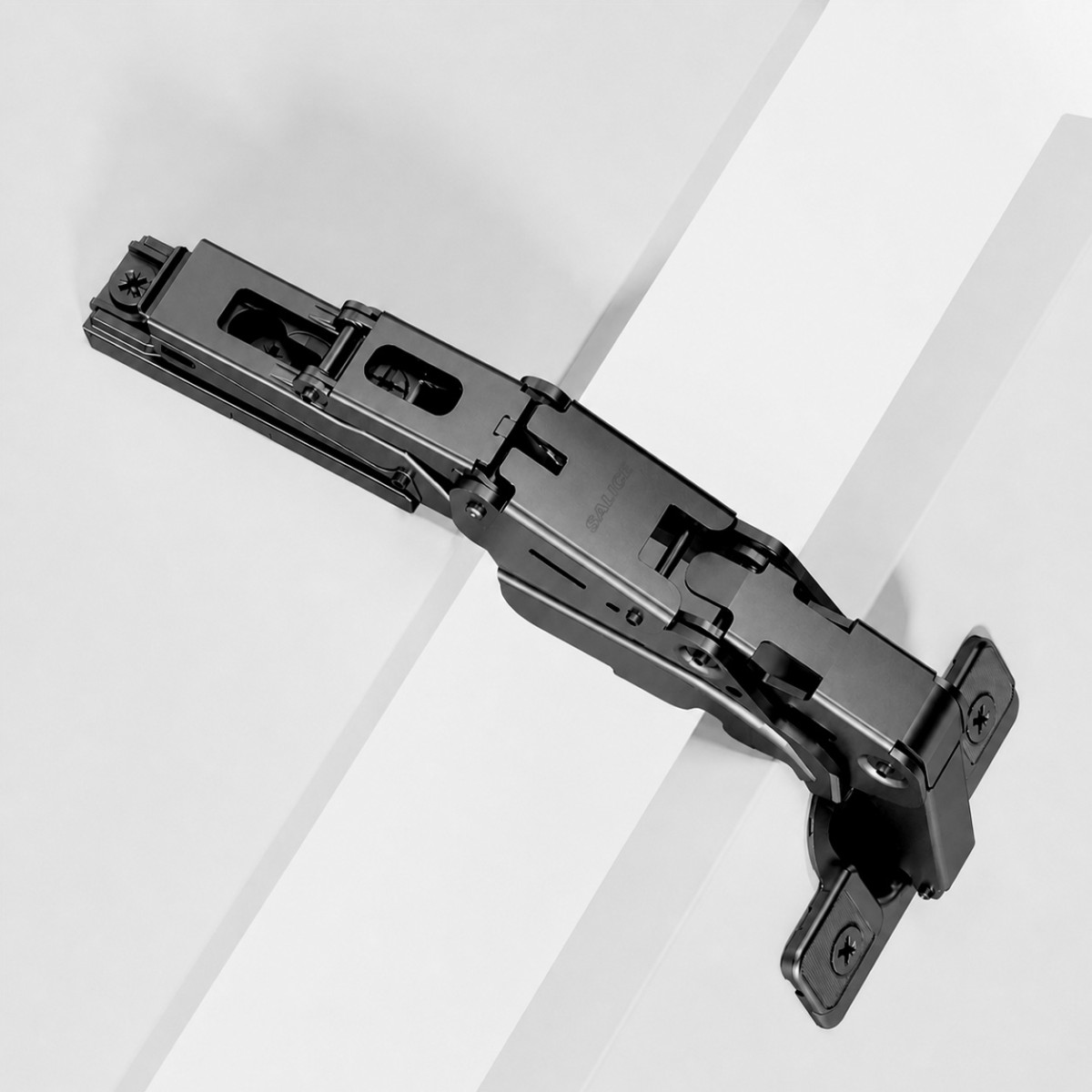

155° opening soft-close hinge for wooden doors, featuring twin silicone oil dampers integrated within the cup for smooth and controlled closing
Supplied as a complete set including hinge and inline mounting plate. The inline mounting plate features 3D adjustment for precise door alignment.
You might also like
Possible drilling distance on the door (K): from 3 to 6 mm.
Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
Cup Dimension: Ø 35mm * 13.5mm cup
Door Thickness: 16 - 26mm
Drilling Distance: 45mm
The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.
The door combined with a mounting plate H=0 and a straight arm hinge opens at 90° with lateral door protrusion of 6 mm.
