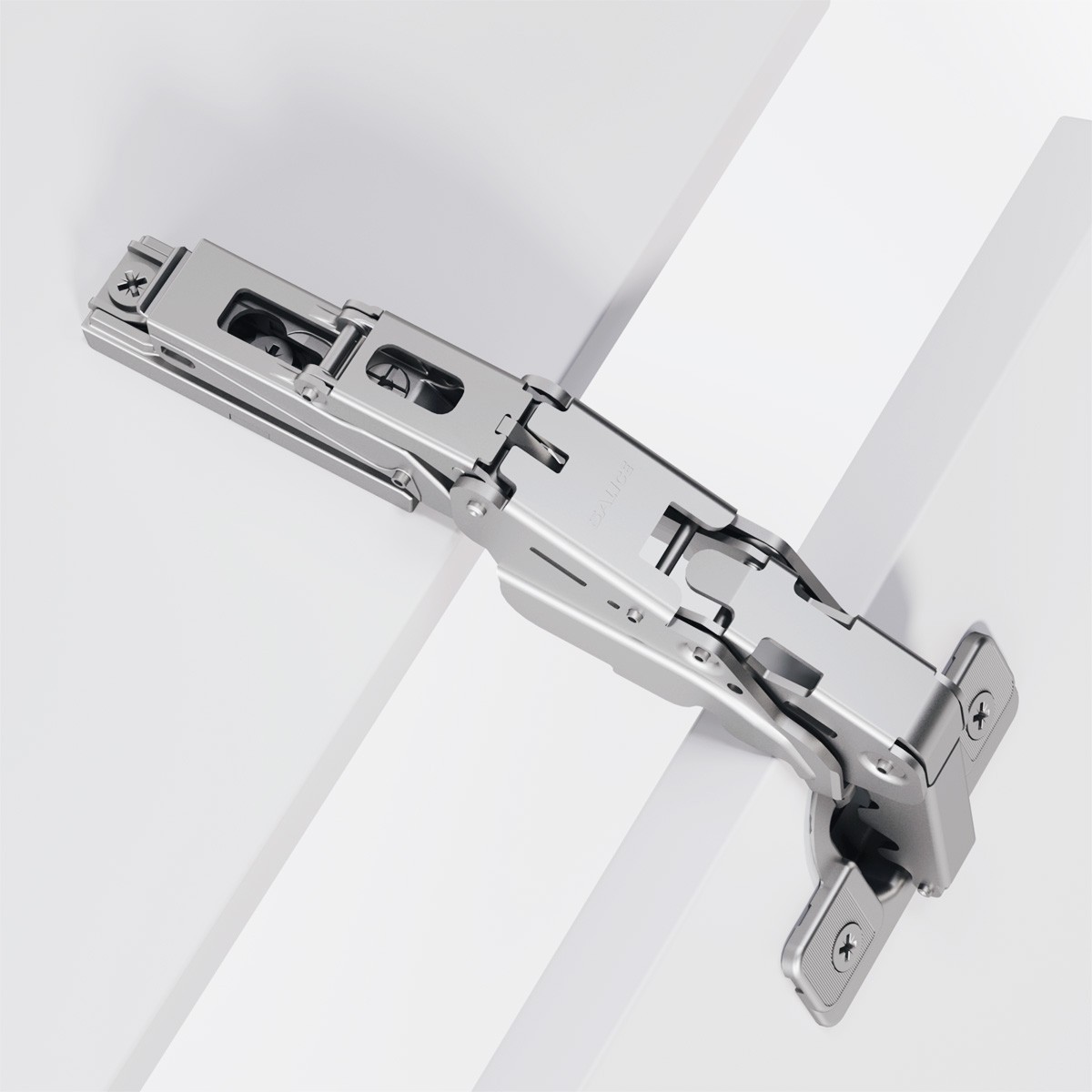

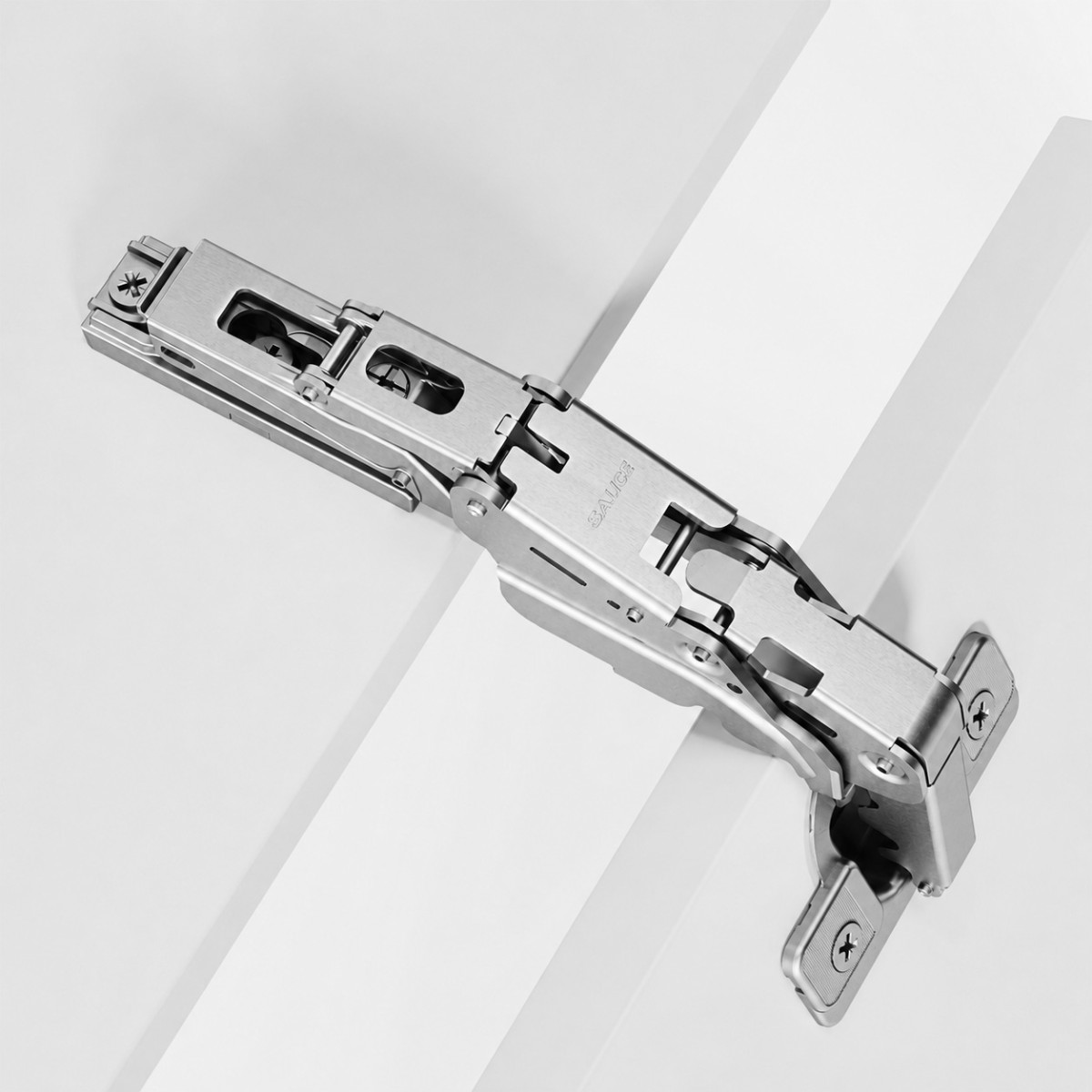

Salice Silentia+ Series 700 - 155° Opening Nickel (Inline Mounting Plate Pack)
Salice Silentia+ Series 700 - 155° Opening Nickel (Inline Mounting Plate Pack)

Salice Silentia+ Series 700 - 155° Opening Nickel (Inline Mounting Plate Pack)

AED 41.28
Tax included

155° opening soft-close hinge for wooden doors, featuring twin silicone oil dampers integrated within the cup for smooth and controlled closing

Supplied as a complete set including hinge and inline mounting plate. The inline mounting plate features 3D adjustment for precise door alignment.

This pack contains

You might also like



Silentia+ Series 700 - 155° Opening

Possible drilling distance on the door (K): from 3 to 6 mm.

Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

Cup Dimension: Ø 35mm *  13.5mm cup

Door Thickness: 16 - 26mm

Drilling Distance: 45mm

Hinge Cup Details

Hinge Cup Details

Number of hinges required to door dimension and weight

Number of hinges required to door dimension and weight

Space needed to open the door

Space needed to open the door

The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiused edges.

Spaces with removable components.

The door combined with a mounting plate H=0 and a straight arm hinge opens at 90° with lateral door protrusion of 6 mm.

Spaces with removable components.

“C” Value

“C” Value
“C” Value
Delivery
Delivery Time: 2-4 Working Days
Warranty
5 Years Warranty
Certification
ISO9001 Quality Management System Certficiation
C2PKAE9-N39
99 Items
