Salice Universal Hinge Glass Door
AED 39.00
Tax included
Universal hinge for glass doors and mirrors, designed for adhesive fixing with no glass drilling required. Provides a 110° opening with adjustable inset positioning and compatibility with standard mounting plates. Features a seven-pivot movement, enabling use in special applications and overlays, including half-inset doors
Supplied as hinge only: mounting plate is not included and must be purchased separately.
Universal Hinges - Glass Door
Salice Universal (CBG) hinges have been developed for use on glass doors and mirrors.
Certified by LGA in conformity with the 15570/08.08 level 3 requirement.
No drilling of the glass is required
Possible fixing inset distance on the door (K): from 0 to 22 mm.
Opening Angle: 110°
Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
Disclaimer
Projectworks will accept no responsibility for any problems associated with the type of adhesive or method of application when used in conjunction with Universal hinges, nor for any consequences of the incorrect mounting of the door. It is recommended that the selected adhesive is subjected to prior testing.
The adhesive may be considered appropriate if the plate, when fixed to the glass, can sustain a minimum torsion load of 160 Nm.

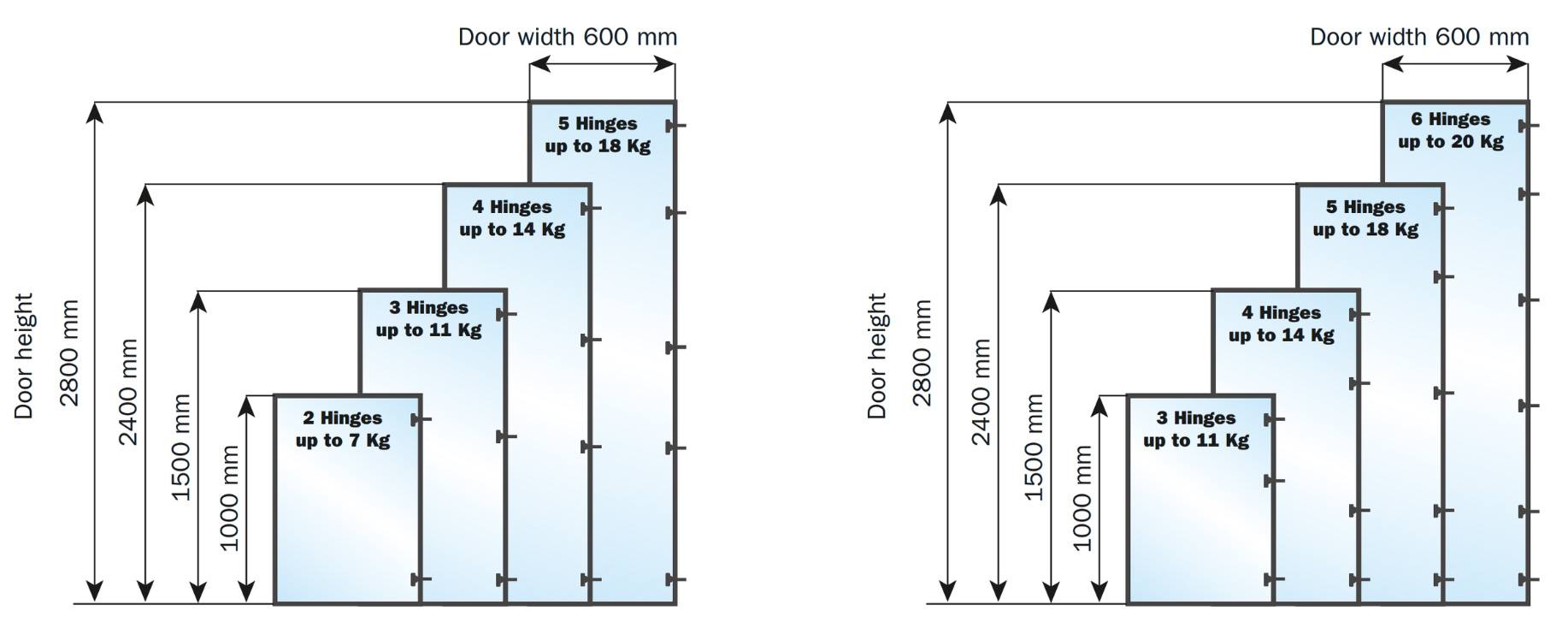

Number Of Hinges Required To Door Dimension And Weight

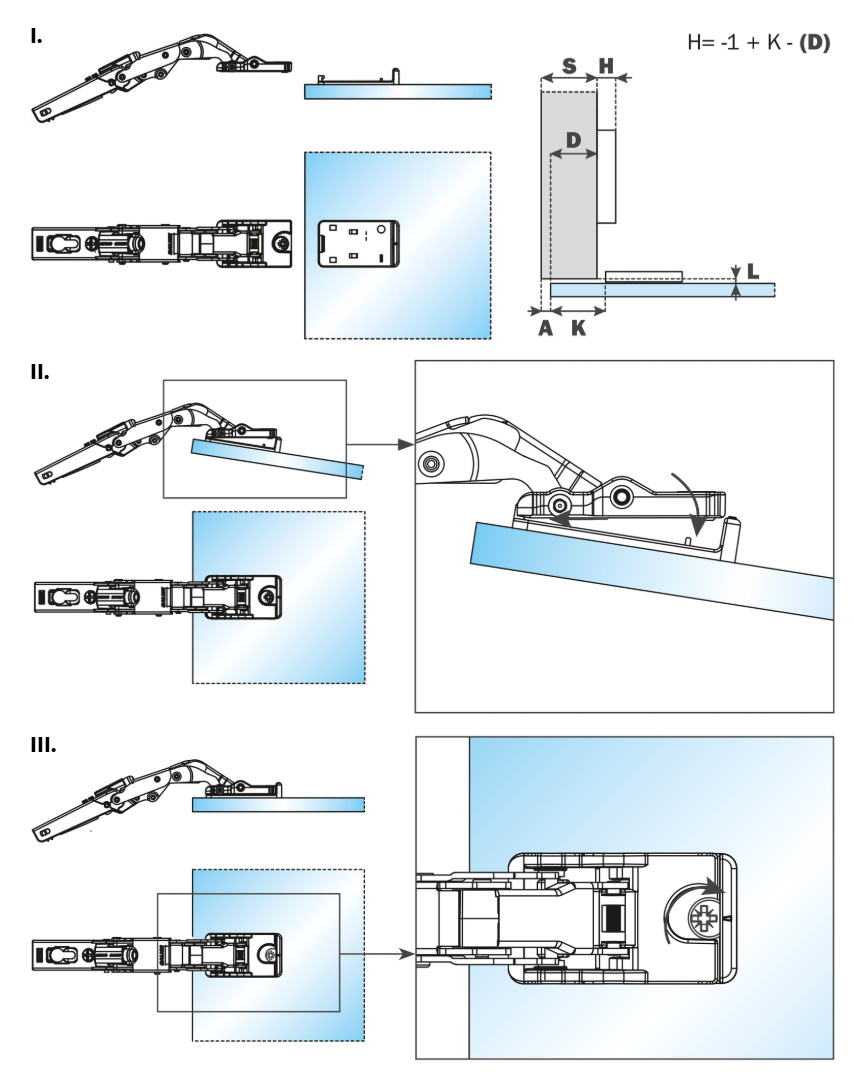

Technical Guide
I. The hinge plate must be attached to the glass door with a specific adhesive using the correct procedure. We recommend that this operation is carried out by a specialist company. For further information on adhesives and their application, please contact the adhesive manufacturer or your glass supplier.
II. Locate the hinge onto the plate when it is bonded to the door.
III. Rotate the fixing cam.

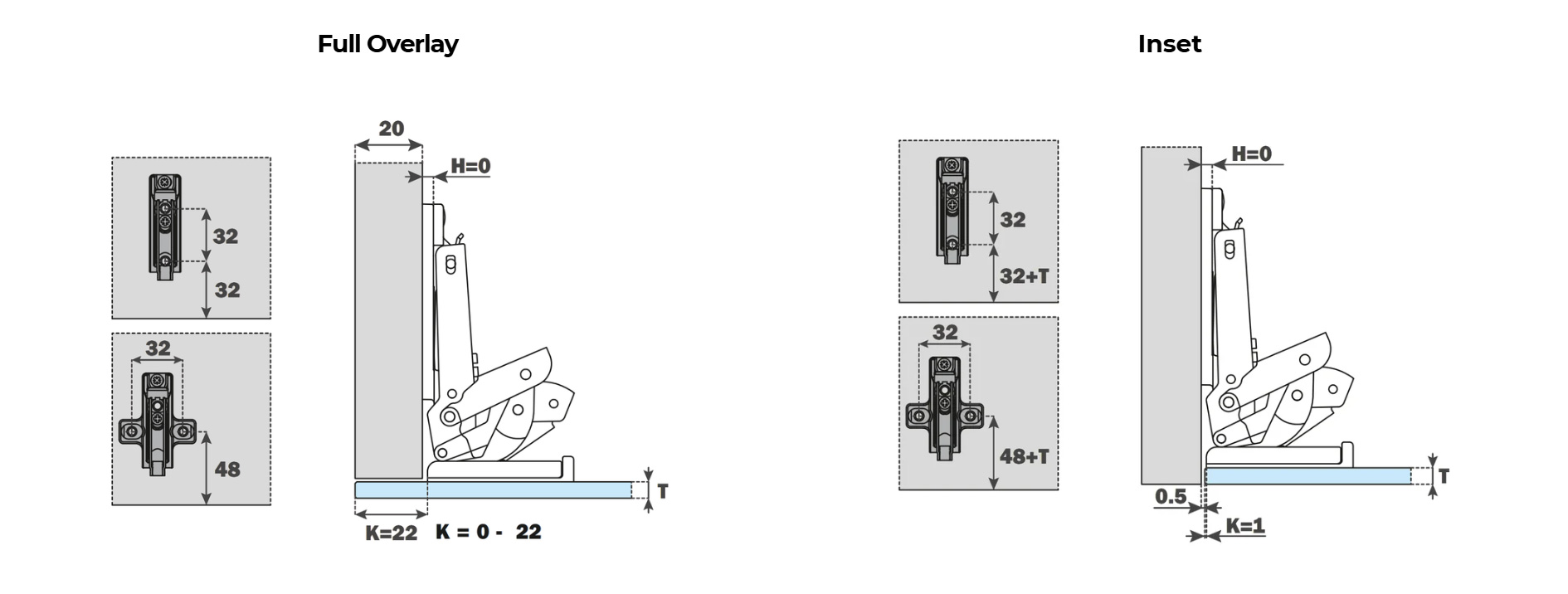

Door Application
- Delivery
- Delivery Time: 1-2 Working Days
- Warranty
- 5 years warranty
- Finish
- Nickel
CBG2AE9
